Removing Front Seat Trim

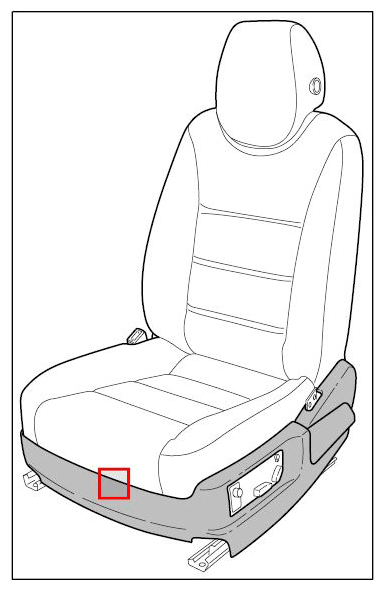

Fig 1: Identifying Front Seat Trim

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

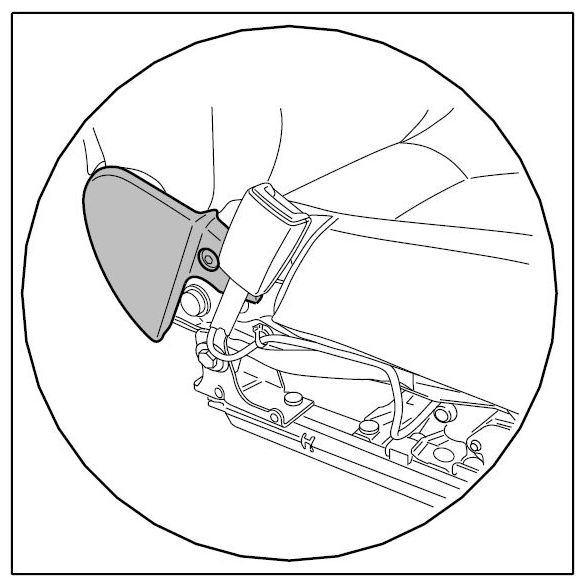

Fig 2: Identifying Front Seat Trim Cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Move front seat forward until fastening screws of front trim are accessible.

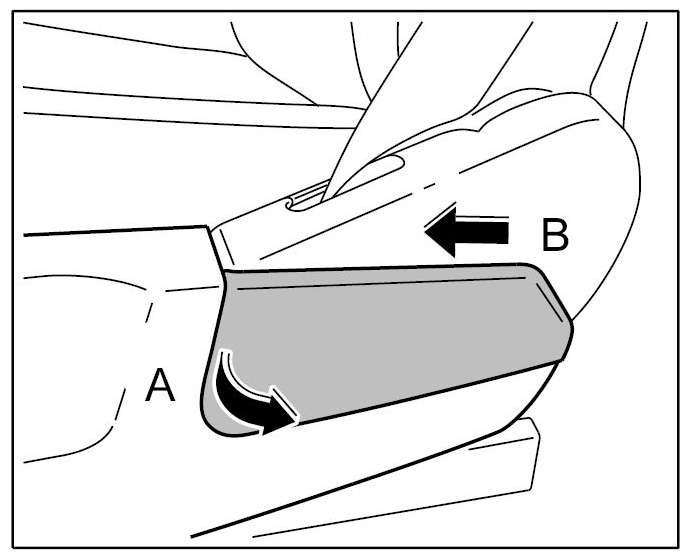

Pull out seat belt cap at the front side -Arrow A- and take out to the front -Arrow B- .

Fig 3: Pulling Out Seat Belt Cap
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

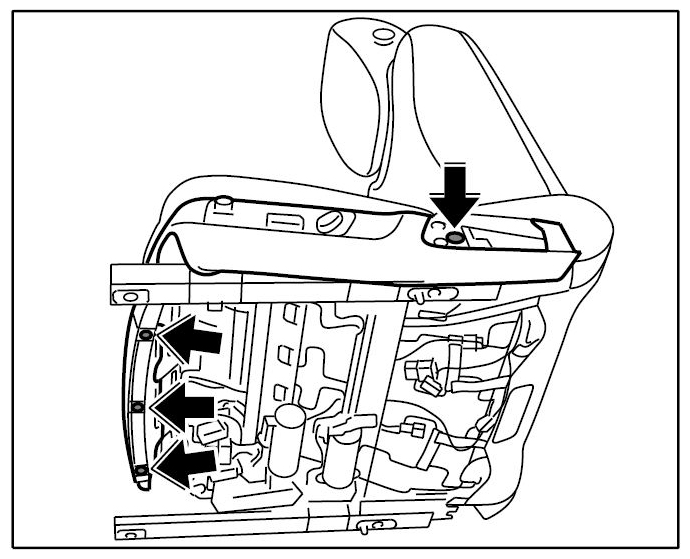

Unscrew fastening screws -arrows- .

Fig 4: Locating Front Seat Trim Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Fold trim outward -Arrow A- .

Fig 5: Folding Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

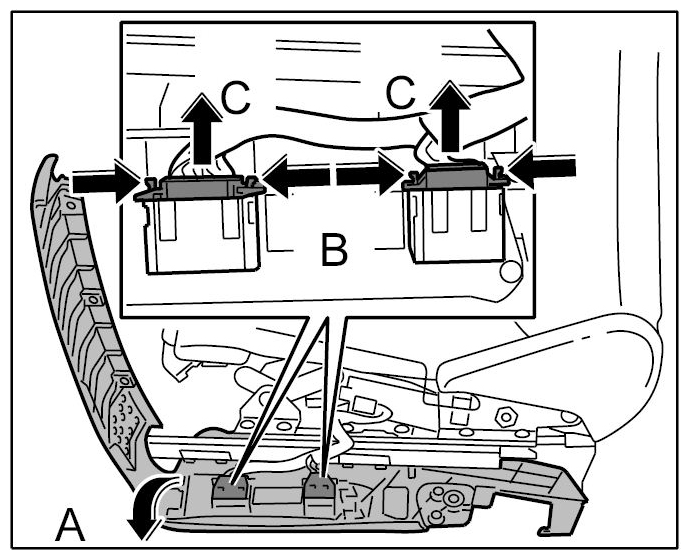

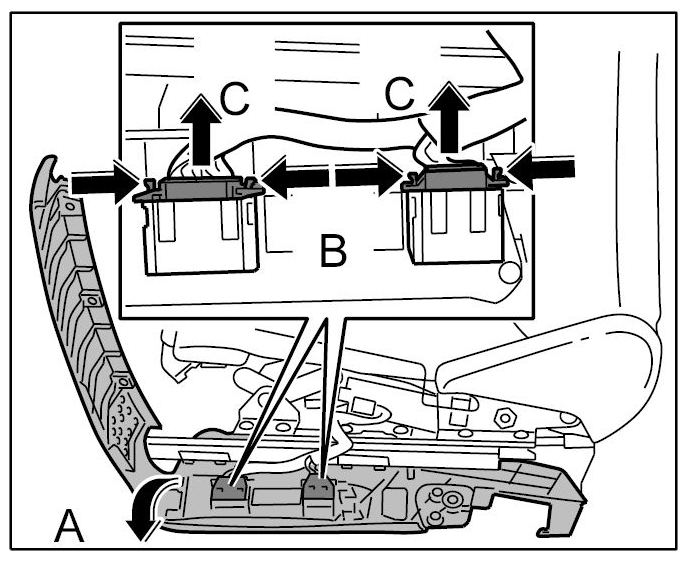

Unlock the two connectors -Arrow B- and remove from the seat adjustment switch -Arrows C- .

Fig 6: Removing Seat Adjustment Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The number of plugs can vary, depending on the equipment.

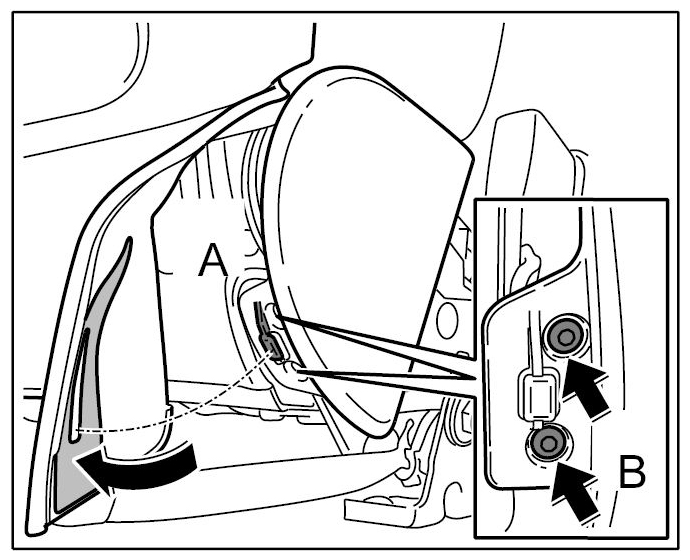

Detach backrest cover on the outer side trim -Arrow A- .

Fig 7: Detaching Backrest Cover On Outer Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push pins of expanding clips -B- out towards the inside and remove the expanding clips.

Fig 8: Removing Expanding Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

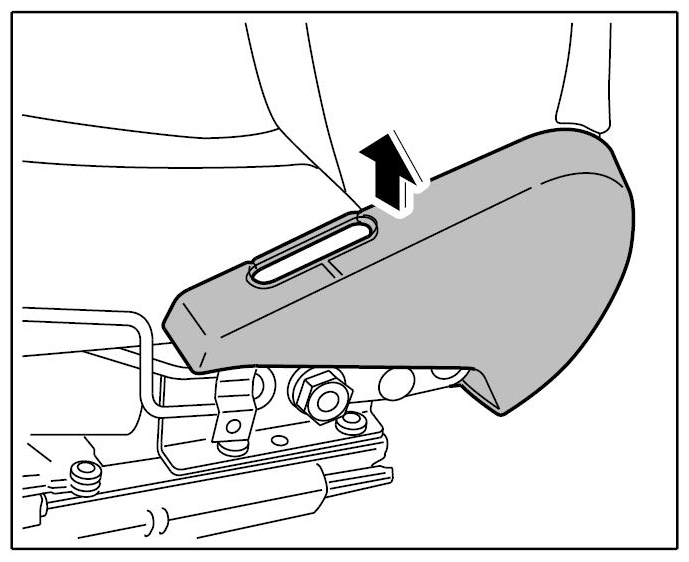

Pull outer side trim off belt guide.

Fig 9: Pulling Outer Side Trim Off Belt Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- If the retaining bracket becomes loose from the side trim during removal, it must be refitted to the side trim for installation.

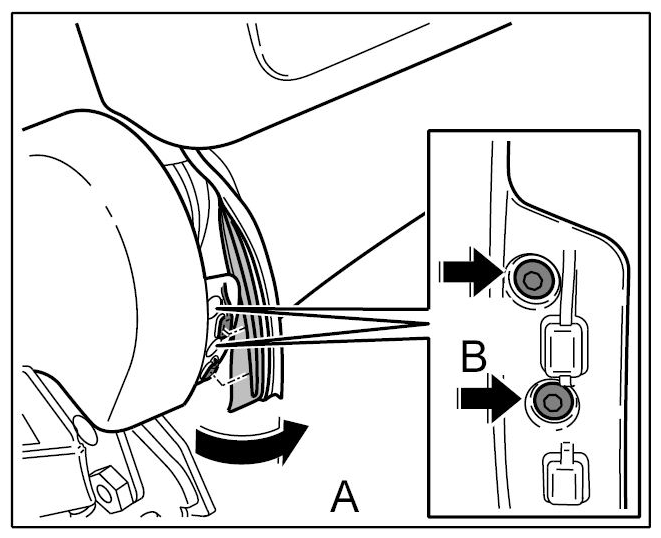

Detach backrest cover on the inner side trim -Arrow A- .

Fig 10: Detaching Backrest Cover On Inner Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Push pins of expanding clips -B- out towards the inside and remove the expanding clips.

Fig 11: Removing Expanding Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

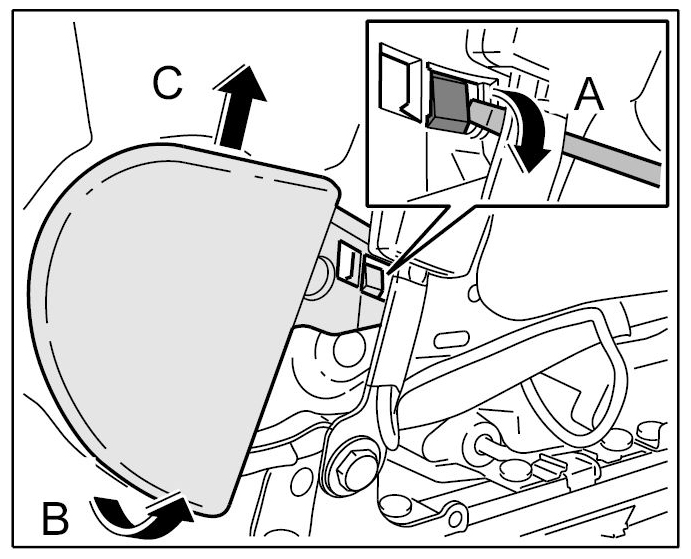

Release inner trim at front using a commercially available screwdriver -Arrow A- .

Fig 12: Releasing Inner Trim At Front Using Screwdriver
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

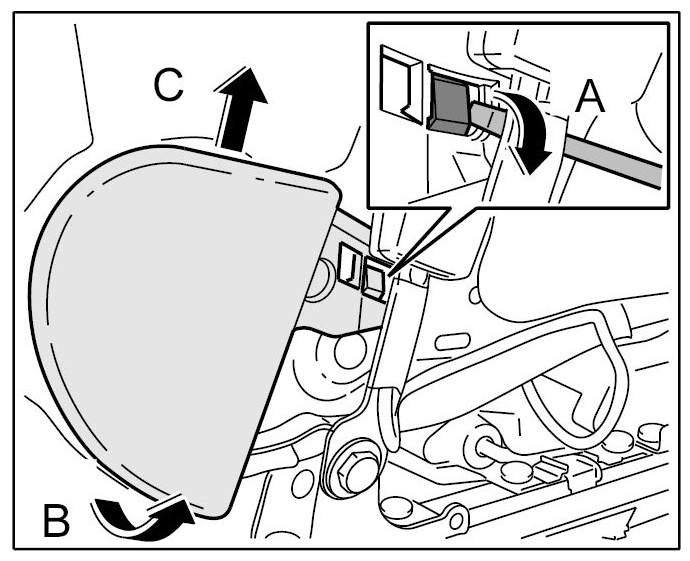

Pull trim at bottom outward -Arrow B- and lift it up and out -Arrow C- .

Fig 13: Pulling Trim At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
