Installing Front Seat Trim

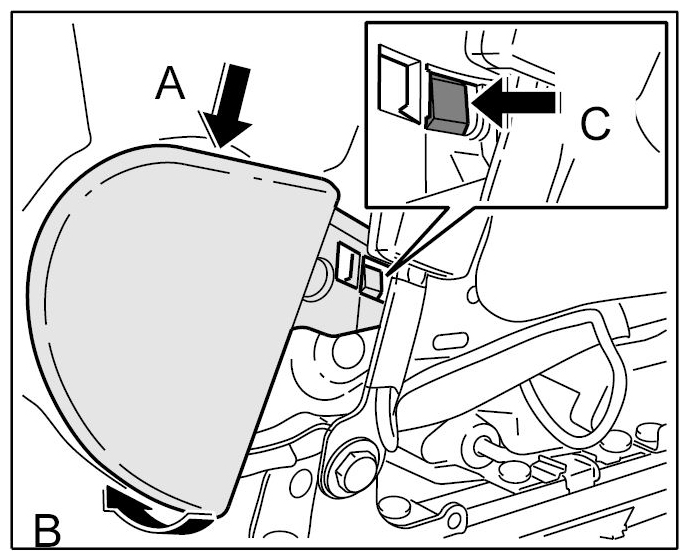

Engage inner side trim onto the seat frame from above -Arrow A- .

Fig 1: Engaging Inner Side Trim Onto Seat Frame
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

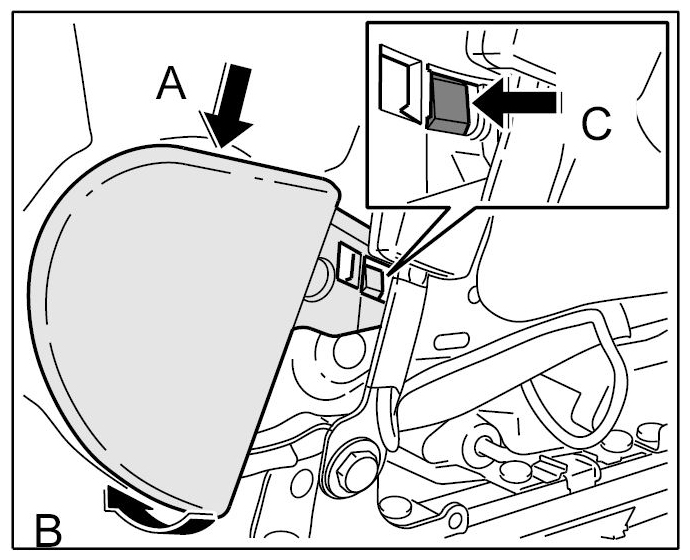

Push lock inward -Arrow C- , then push in the trim at the bottom -Arrow B- .

Fig 2: Pushing Trim At Bottom
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

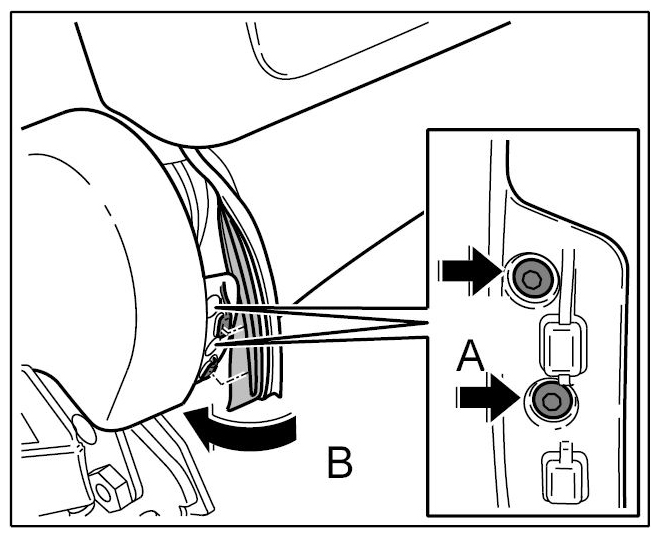

Insert expanding clips -A- and push in the pins.

Fig 3: Inserting Expanding Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

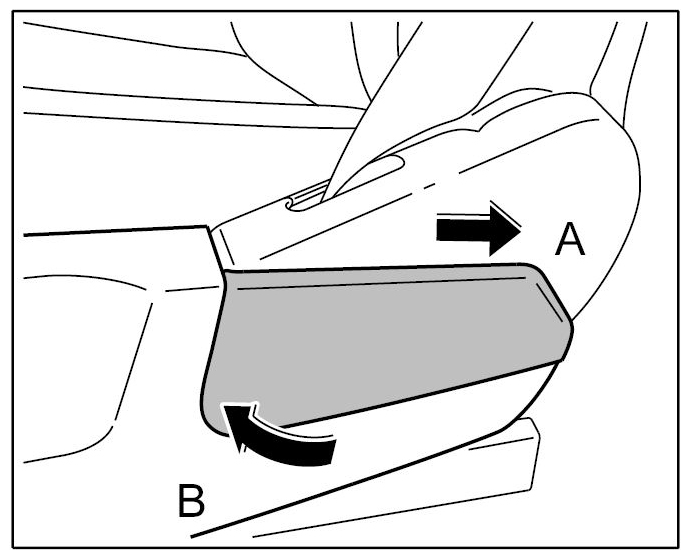

Engage backrest cover on side trim -B- .

Fig 4: Engaging Backrest Cover On Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

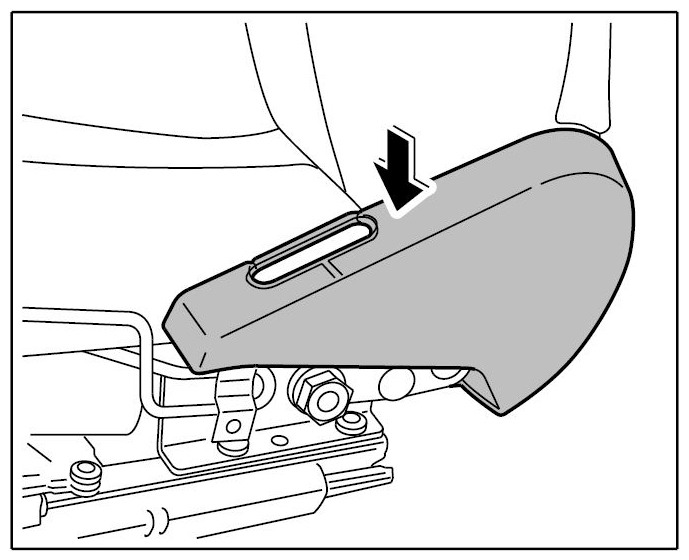

Push outer side trim onto belt guide.

Fig 5: Pushing Outer Side Trim Onto Belt Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

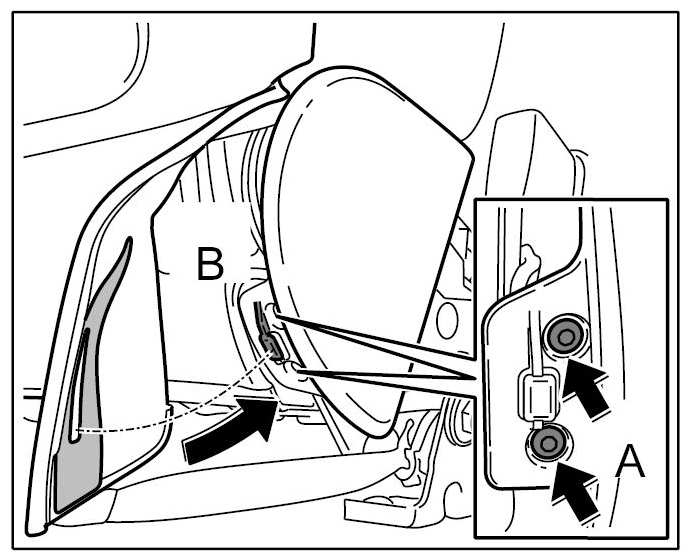

Insert expanding clips -A- and push in the pins.

Fig 6: Inserting Expanding Clips
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage backrest cover on the outer side trim -B- .

Fig 7: Engaging Backrest Cover On Outer Side Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

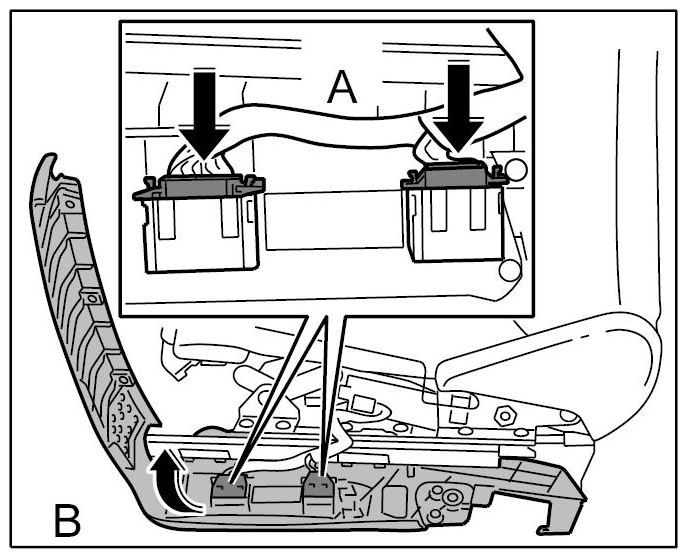

Insert the two plugs into the seat adjuster switch -A- and swivel trim back to the installation position -B- .

Fig 8: Inserting Plugs Into Seat Adjuster Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information
- The number of plugs can vary, depending on the equipment.

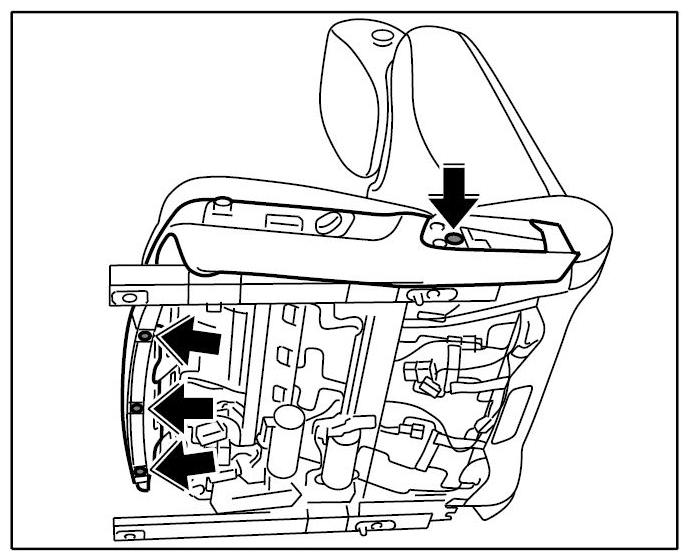

Screw front trim into place -arrows- .

Fig 9: Identifying Front Trim Mounting Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert seat belt cap on the front trim -Arrow A- and push in -Arrow B- until it can be felt to engage.

Fig 10: Inserting Seat Belt Cap On Front Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
