Removing Front Seat

→ Switch off ignition and remove ignition key or remote control (hand-held transmitter).

→ A voltage supply (e.g. battery charger) must not be connected to the external power supply/jump-lead starting terminals.

→ Disconnect the battery and insulate the ground strap so that all contact with a ground carrier is avoided.

→ Wait 1 minute after disconnecting the battery.

→ Only detach connector on the triggering unit after the waiting time has elapsed.

→ Make sure that no foreign objects are located in front of the airbag unit during installation.

→ Replace damaged parts during removal.

→ Always position airbag units so that the blow-out opening is facing upwards, e.g. crest on driver's airbag.

→ Do not position anything on the airbag units.

→ If removed for an extended period, the airbag units must be stored in a safe place.

→ Airbag units must not come into contact with grease, oil, detergents, liquids, or similar substances.

→ Do not expose airbag units to temperatures above 90°.

→ Do not remove the short-circuit spring on the plug-in contacts.

→ Ignition and preparations may only be carried out by skilled staff, supervised by a second responsible person.

→ Before disposal, the airbag unit must be rendered harmless by electrical ignition performed in accordance with all precautionary measures, thereby preventing it from being used incorrectly.

Information

• In the case of faulty fore-and-aft or vertical adjustment, the seat can only be removed together with the seat frame. → Removing and installing front seat frame
  Fig 1: Identifying Front Seat

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Move backrest all the way forward. Move front seat all the way up and all the way forward.
2. Unlock the covers -arrows C-  and remove the rear seat rail caps -arrows D-  .
   Fig 2: Removing Rear Seat Rail Caps

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew rear seat rail fastening screws -3-  .
4. Pull out seat belt cap at front -A-  and remove towards the front -B-  .
   Fig 3: Pulling Out Seat Belt Cap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Release retaining clip -arrow A-  on the seat belt mount using a suitable screwdriver.
   Fig 4: Removing Seat Belt Mount Retaining Clip Using Suitable Screwdriver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Push belt end fitting over the retaining pin -arrow B-  until the lug under the retaining pin loosens the clip.
7. Remove belt end fitting from the retaining pin -arrow A-  and pull seat belt out through the belt guide -arrow B-  .
   Fig 5: Pulling Seat Belt Out Through Belt Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Move the driver's seat back fully and lower rear seat area.
9. Remove ignition key. Disconnect battery. Route or insolate the ground strap so that any contact with a ground carrier (e.g. body, seat frame) is avoided → WM 9000IN WORK INSTRUCTIONS AFTER DISCONNECTING THE BATTERY (ALL MODELS) .
10. Unlock the covers -arrow A-  and remove the front seat rail caps -arrow B-  .
    Fig 6: Removing Front Seat Rail Caps

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Unscrew front seat rail fastening screws -4-  .
12. Tilt seat backwards.
13. Unlock belt buckle connector -arrow A-  and remove -arrow B-  .
    Fig 7: Removing Belt Buckle Connector

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Unlock central plug -arrow C-  and remove -arrow D-  .
15. Press protective cover on airbag plug down -arrow A-  and hold in this position.

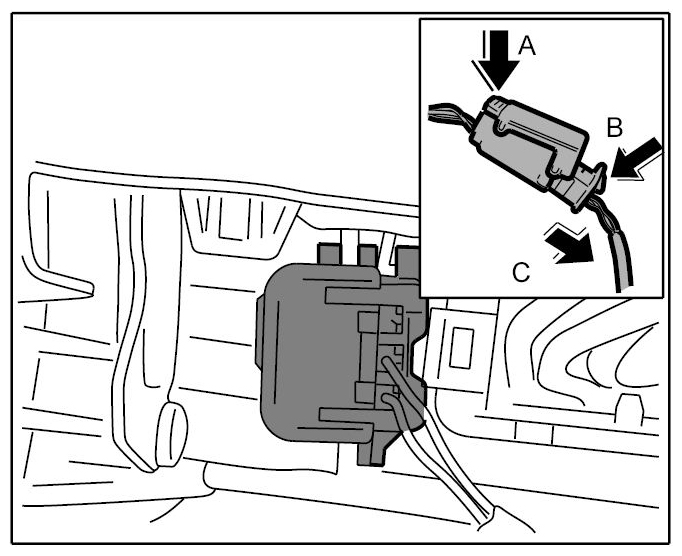

    Fig 8: Pressing Protective Cover On Airbag Plug

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Unlock airbag plug -arrow B-  and remove -arrow C-  .
17. Unlock connector on seat control unit -arrow A-  and remove it -arrow B-  .
    Fig 9: Removing Connector On Seat Control Unit

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
18. Unclip wire harness.
    1. 18.1. Press the clip up and off the seat frame -arrow A-  .

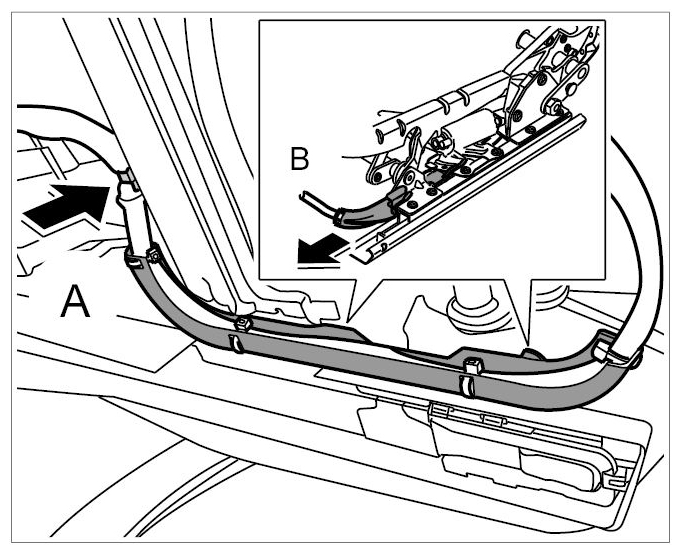

       Fig 10: Detaching Wiring Duct From Seat

       Courtesy of PORSCHE CARS NORTH AMERICA, INC.
    2. 18.2. Remove wiring duct by pulling it forward -arrow B-  .
19. Remove seat.
