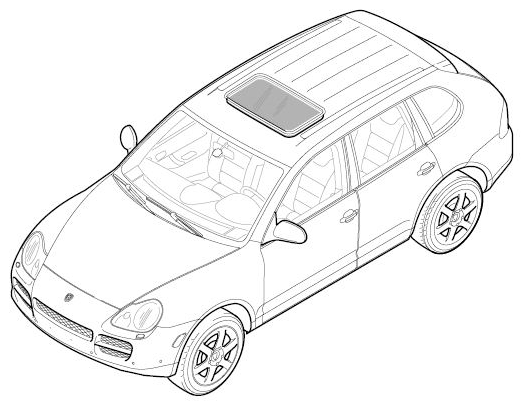

Removing Sliding/Tilting Roof Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

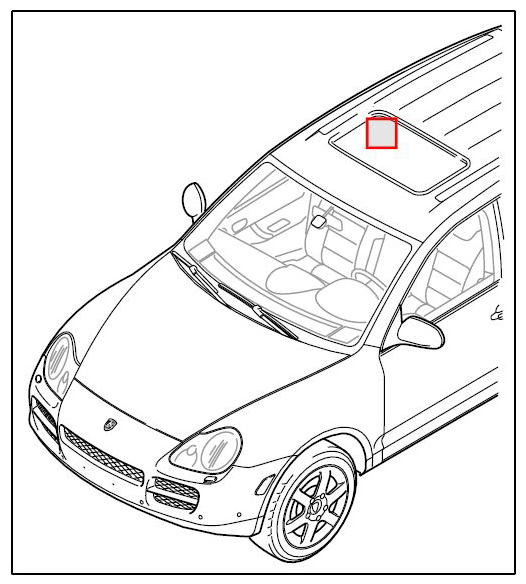

- Remove sliding roof cover. → Removing Sliding/Tilting Roof Trim
- Close sliding/tilting roof trim.

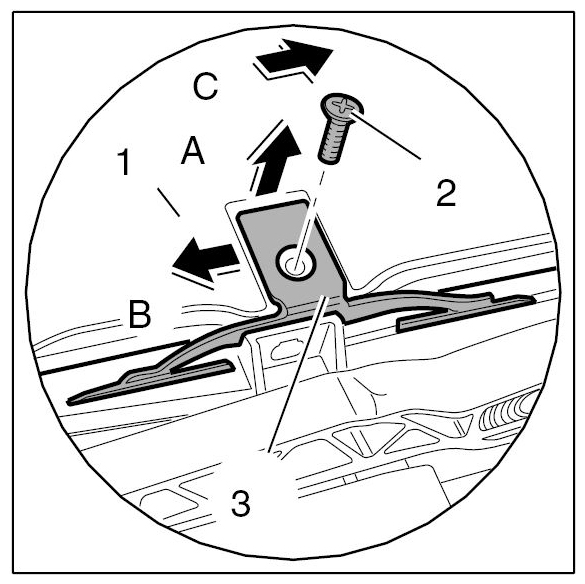

- Unscrew fastening screw -2-
on both sides at the guide elements -3-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Lift guide elements -3- -Arrow A-
and push all the way to the front over the sliding/tilting roof trim -1- -Arrow B-

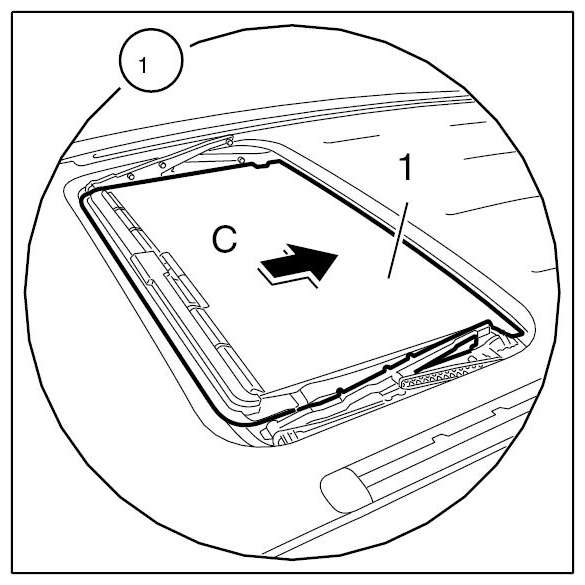

. Simultaneously push the sliding/tilting roof trim -1-
to the rear -Arrow C-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

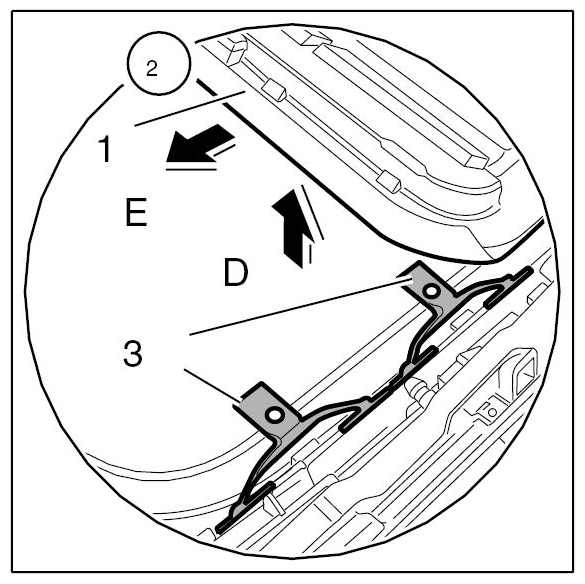

- Lift the sliding/tilting roof trim -1- -Arrow D-
and remove over the guide elements -3- -Arrow E-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
