Installing Rear Headliner

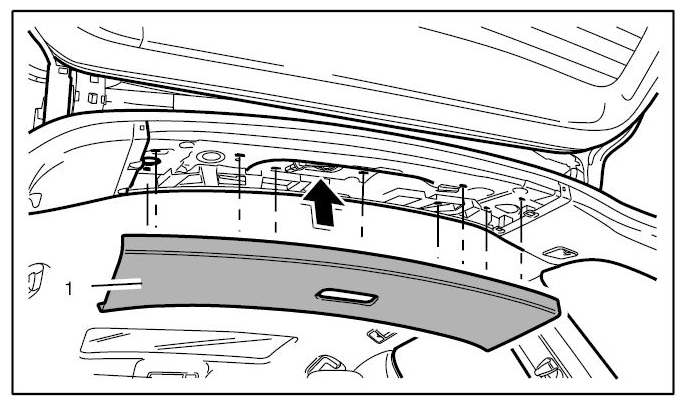

Fig 1: Locating Rear Headliner
G09413551Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Check fixing clips -2-  for deformation, replacing if necessary.

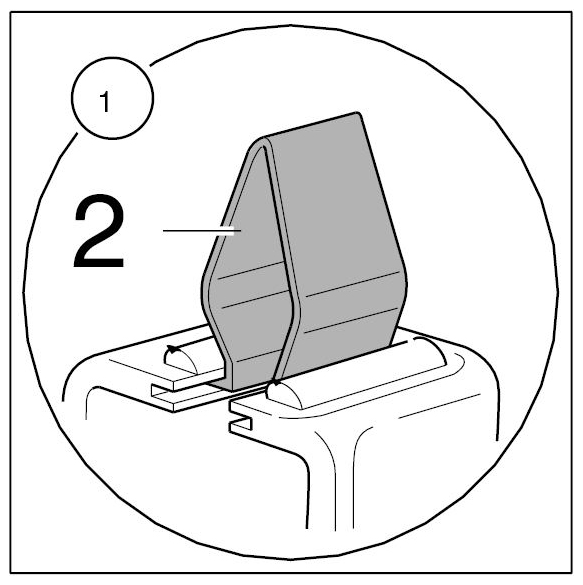

    Fig 2: Identifying Fixing Clips
    G09413552Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip headliner into the steel frame at the marked positions.
  3. Connect plug -4-  .

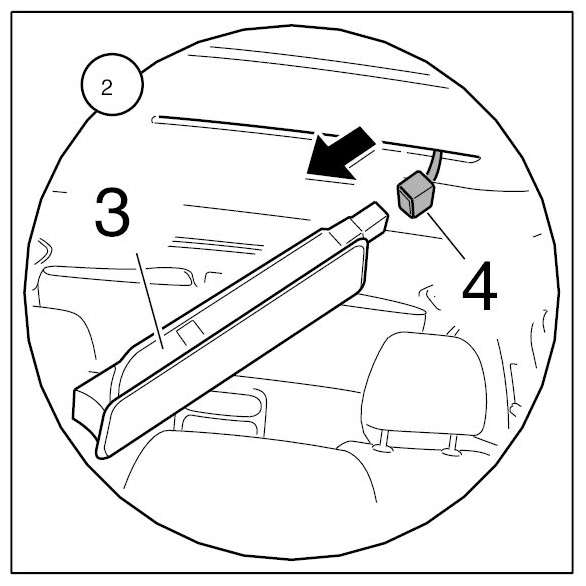

    Fig 3: Inserting Clip Headliner Into Steel Frame At Marked Positions
    G09413553Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  4. Connect interior light -3-  at the roof connection.

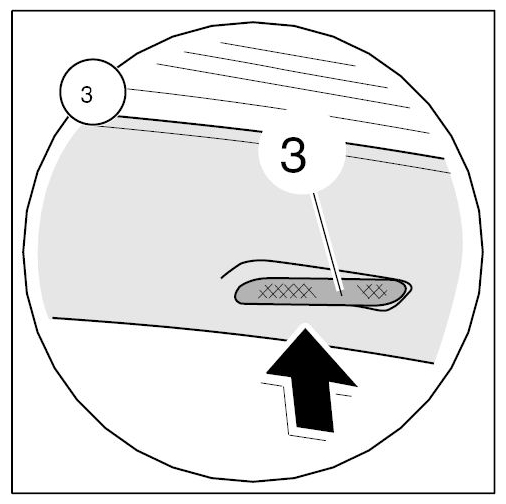

    Fig 4: Connecting Interior Light At Roof Connection
    G09413554Courtesy of PORSCHE CARS NORTH AMERICA, INC.
