Removing Headliner

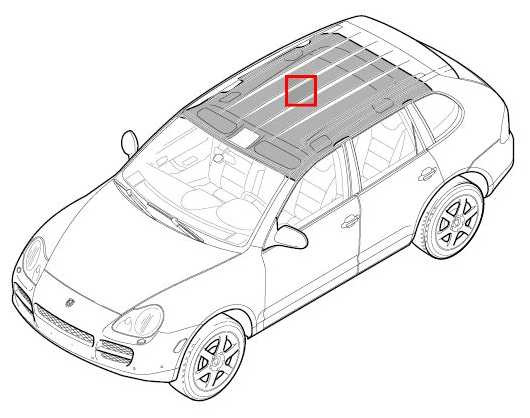

Fig 1: Overview Of Roof Lining

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

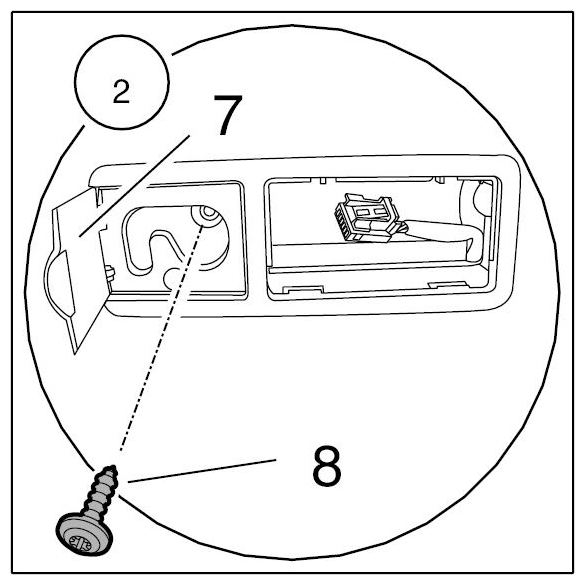

Open cover -7- and unscrew fastening screw -8- .

Fig 2: Identifying Open Cover And Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

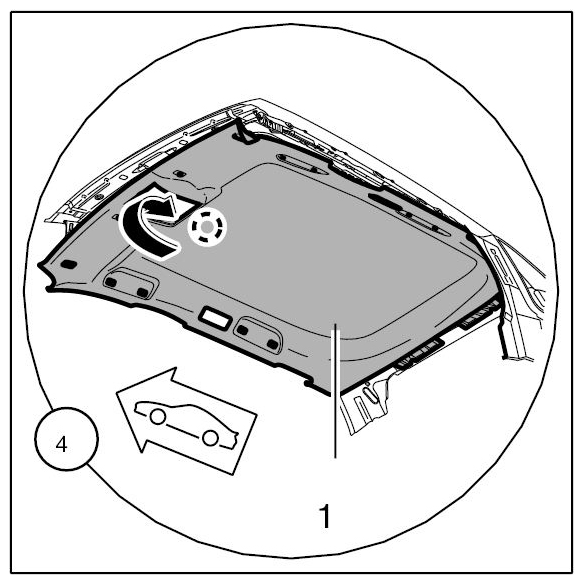

Fold down headliner -1- at front edge.

Fig 3: Folding Down Headliner At Front Edge
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

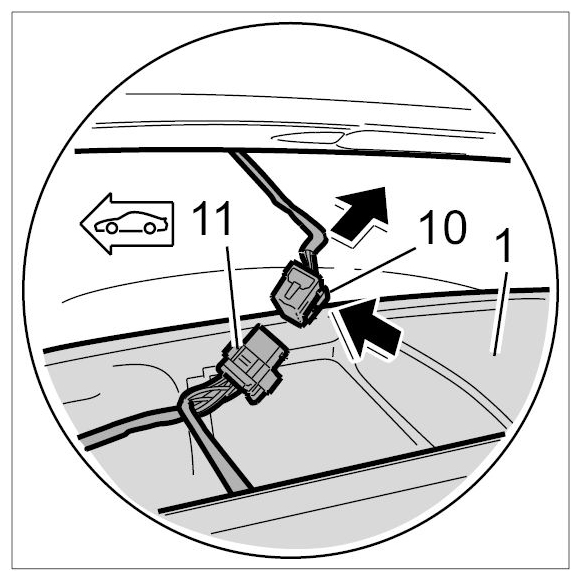

Disconnect plug connection for roof wire harness -10, 11- .

Fig 4: Disconnect Plug Connection For Roof Wire Harness
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove headliner
1. 4.1. Unclip fastening part of headliner -12- from the bodyshell -13- at the back.

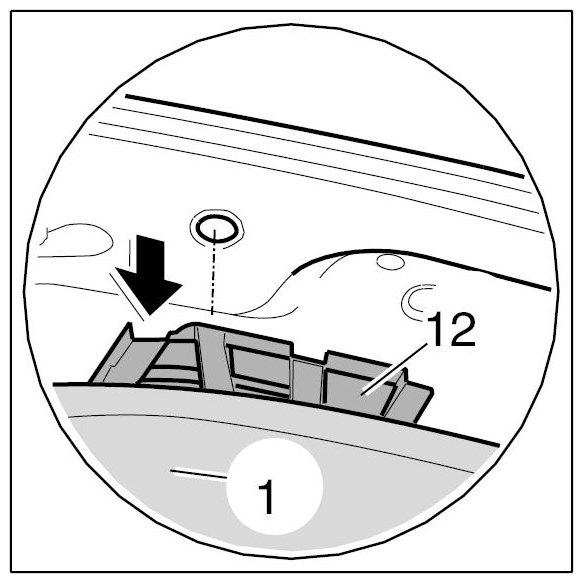

  Fig 5: Removing Headliner (1 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

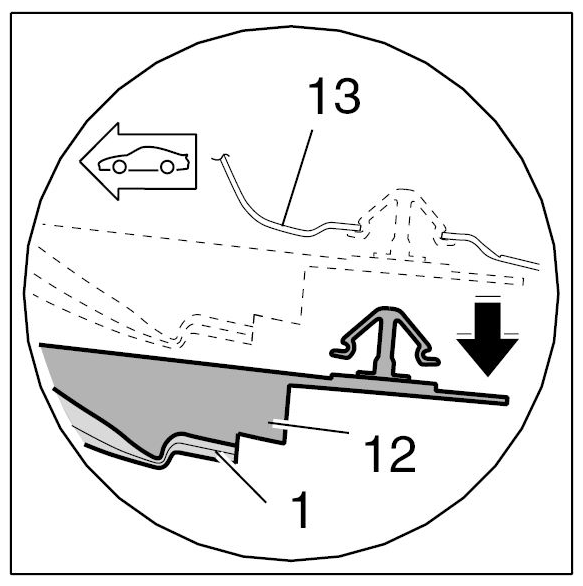

  Fig 6: Removing Headliner (2 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

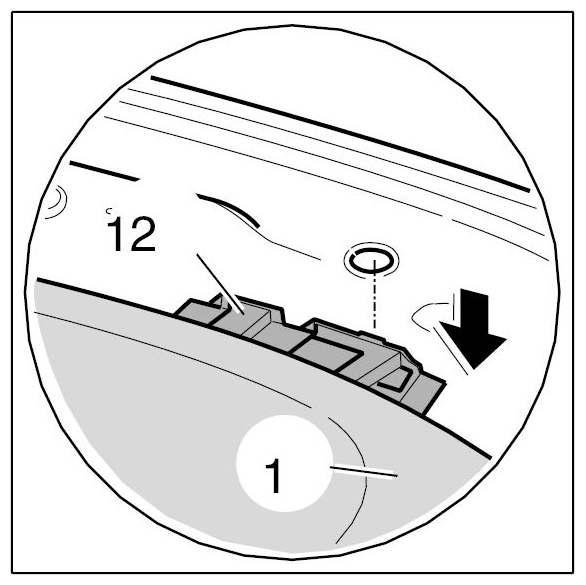

  Fig 7: Removing Headliner (3 Of 3)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

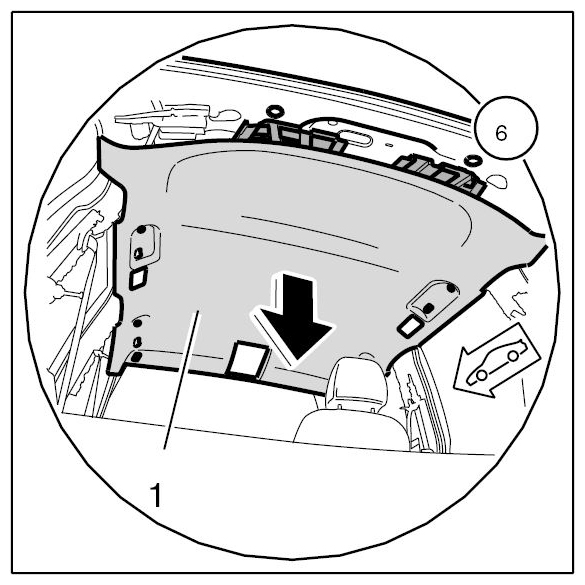

2. 4.2. Remove headliner -1- and guide out of vehicle through tailgate opening.

  Fig 8: Removing Headliner And Guide Out Of Vehicle Through Tailgate Opening
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Information
  - Additional assembly operations must be performed on vehicles with sunroof or roof assembly. → Removing Roof Lining
