Removing Headliner - Vehicles With Roof Assembly

  1. Unclip headliner -1-  at perimeter of roof assembly cut-out -circle marks-  from fastening clips -14-  .

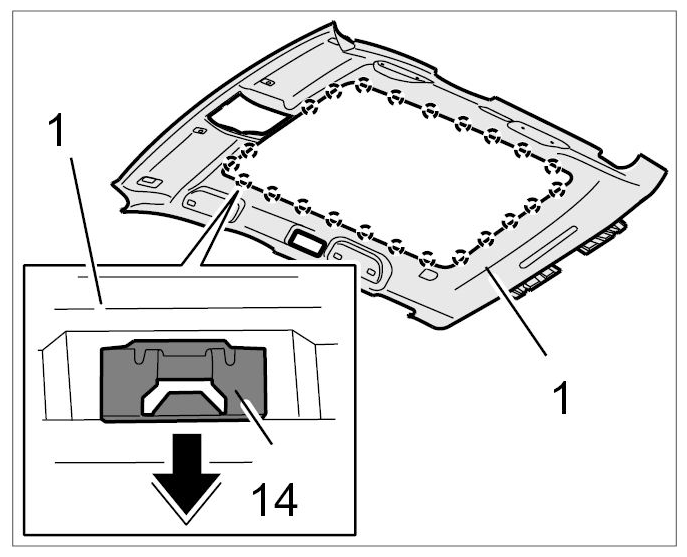

    Fig 1: Unclipping Headliner At Perimeter Of Roof Assembly
    G09413529Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push clamps -15-  at the front and rear on frame -16-  to the side and remove both sections of the frame -16-  .

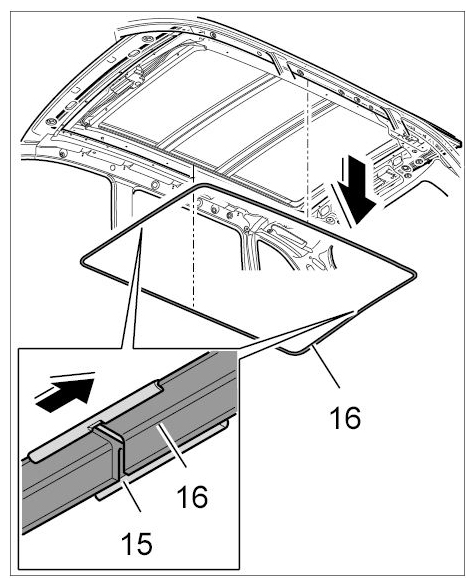

    Fig 2: Removing Sections Of Frame
    G09413530Courtesy of PORSCHE CARS NORTH AMERICA, INC.
