Installing Headliner - Vehicles With Sunroof

  1. Check fastening clips -14-  of headliner for deformation, replace if necessary.

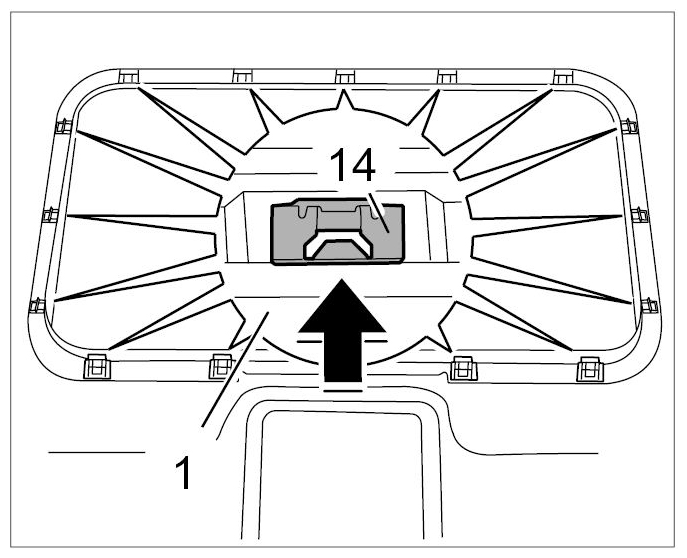

    Fig 1: Locating Fastening Clips
    G09413541Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Clip in headliner -1-  using fastening clips -14-  close to sunroof cut-out.
