Removing A-Pillar Trim

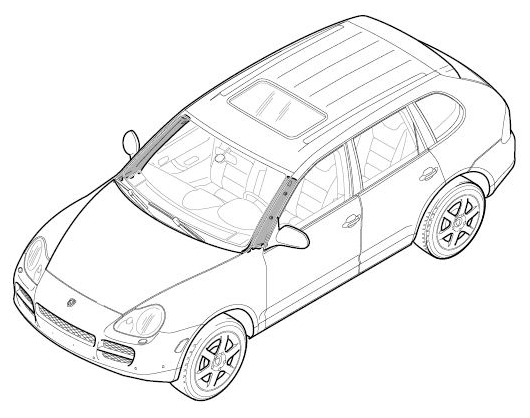

Fig 1: Identifying A-Pillar Trim (1 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

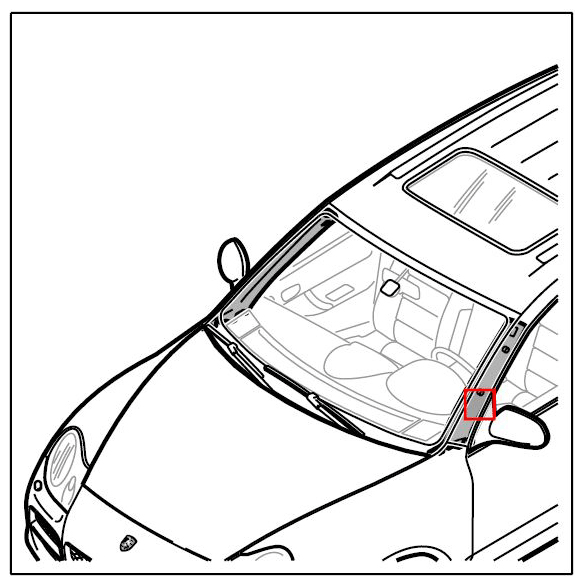

Fig 2: Identifying A-Pillar Trim (2 Of 2)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Using a screwdriver, unclip the cap -7- from the A-pillar trim.

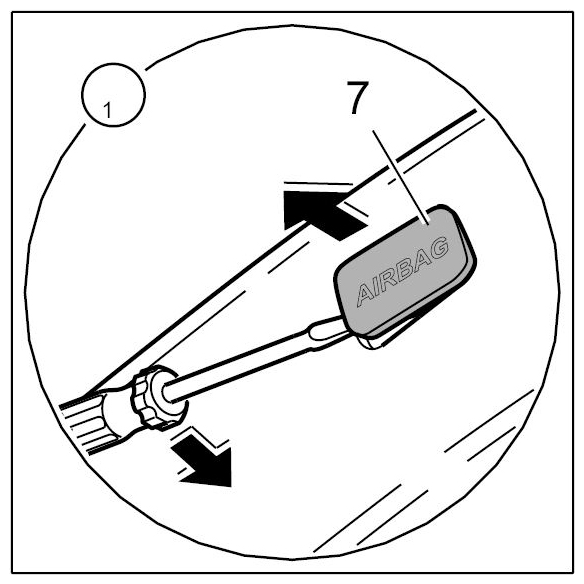

Fig 3: Unclipping Cap From A-Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unscrew fastening screw -6- .

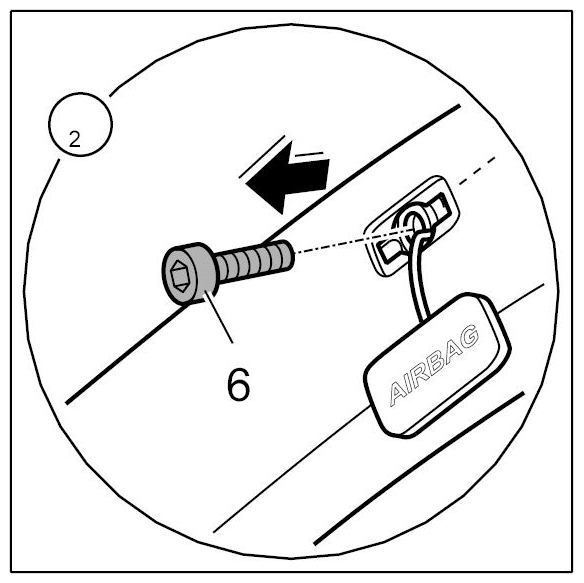

Fig 4: Removing Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Starting at the fastening bolt -5- at the top, unclip A-pillar trim from the clip connections.

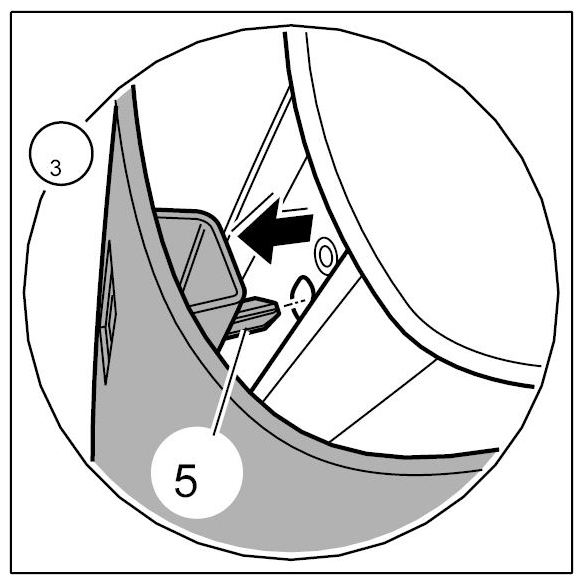

Fig 5: Removing Fastening Bolt
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Unclip A-pillar trim -1- in an upward direction.

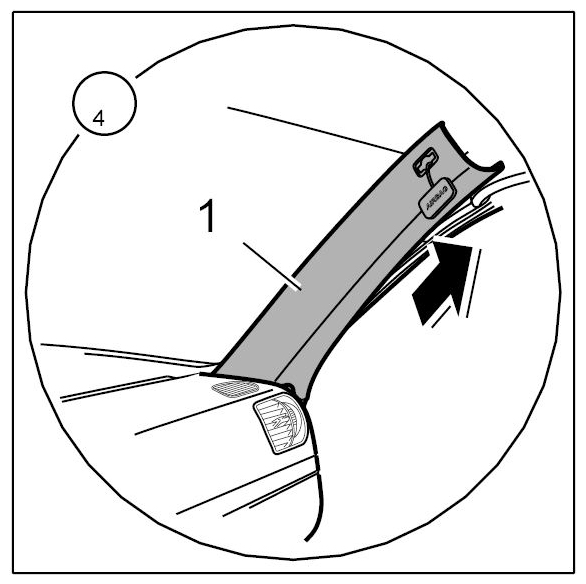

Fig 6: Unclipping A-Pillar Trim
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
