Installing Cover Under Dashboard On The Passenger's Side

Fig 1: Identifying Cover Under Dashboard On Passenger's Side

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Insert cover under dashboard on the passenger's side.
   1. 1.1. Insert cover under the dashboard on the passenger's side -1-  using the guides -6- -arrow A-  .

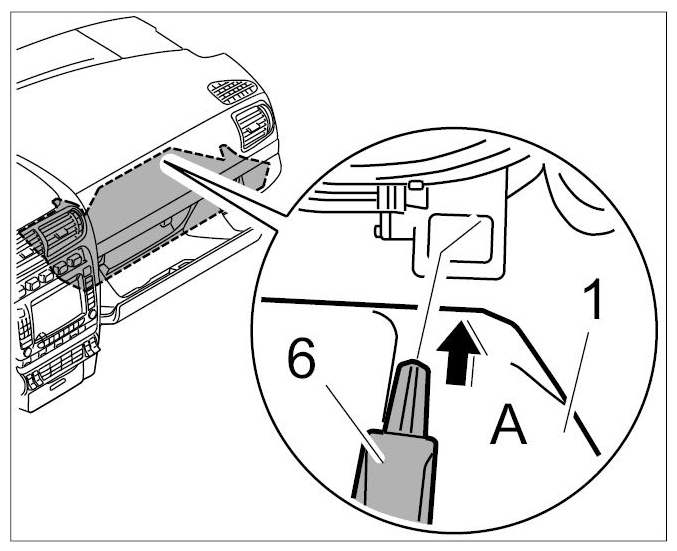

      Fig 2: Inserting Cover Under Dashboard On Passenger's Side

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Connect plug.
   1. 2.1. Push on the plug -4, 5-  until the locking tabs engage audibly.

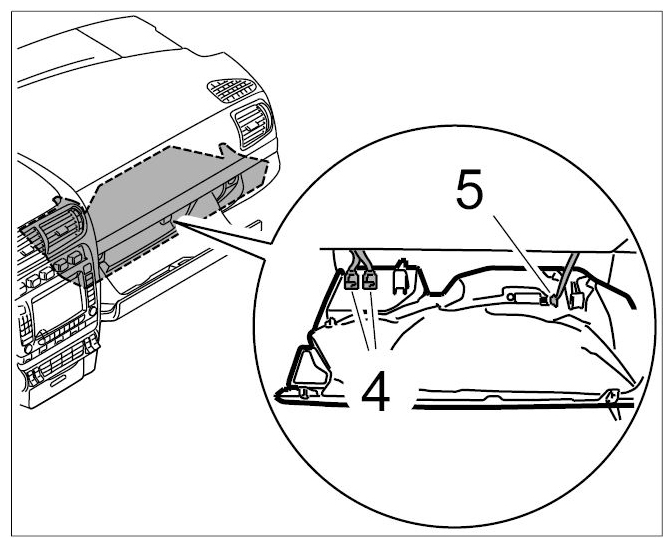

      Fig 3: Identifying Push On Plug

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Install cover under dashboard on the passenger's side.
   1. 3.1. Press the cover under the dashboard on the driver's side -1-  upwards until the fastening clips -3-  can be heard to engage -arrow B-  .
   2. 3.2. Screw in fastening screw -2-  .

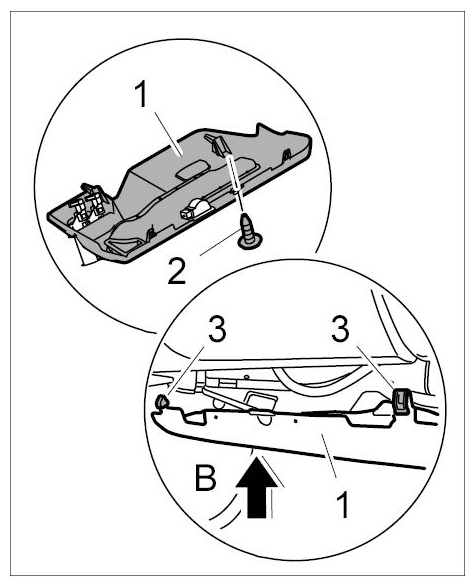

      Fig 4: Installing Cover Under Dashboard On Passenger's Side (1 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

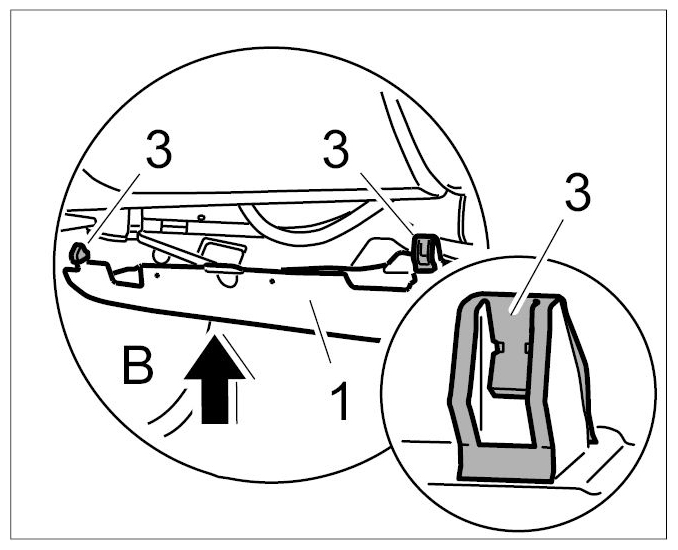

      Fig 5: Installing Cover Under Dashboard On Passenger's Side (2 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
