Adjusting The Instrument Panel

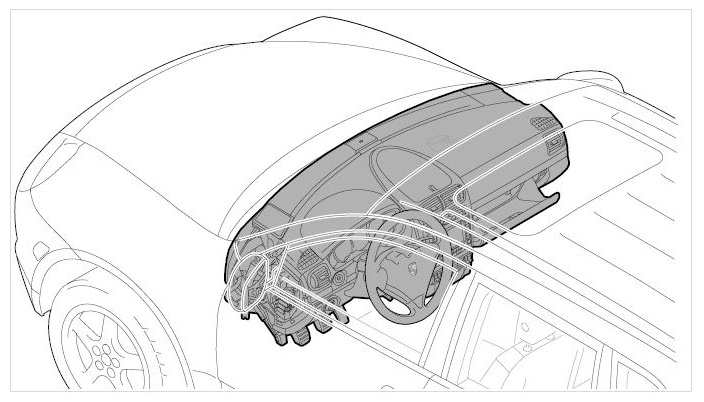

Fig 1: Identifying Instrument Panel

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• There must be an even transition between the dashboard and the door panels. The dashboard should be centred in the vehicle so that the gaps with respect to the door panels are the same width on both sides.

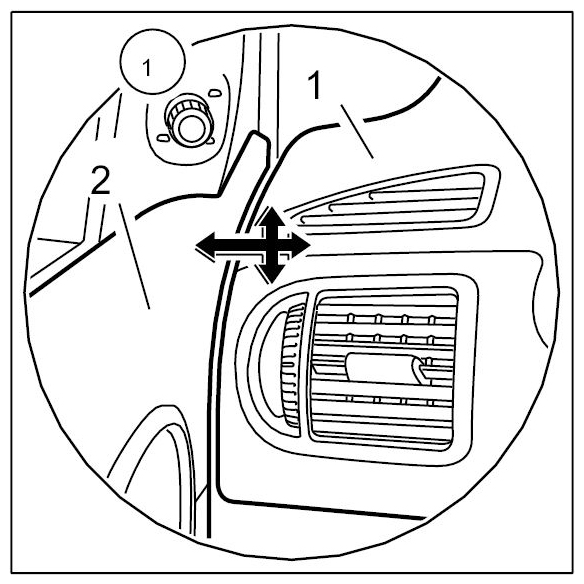

1. Check the installation position of the instrument panel. To do this, check the gap dimension and height difference -arrows-  between the instrument panel -1-  and the door trim panels -2-  visually and adjust them if necessary.
   Fig 2: Checking Gap Dimension And Height Difference Between Instrument Panel And Door Trim Panels

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unclip the cover of the fuse box.

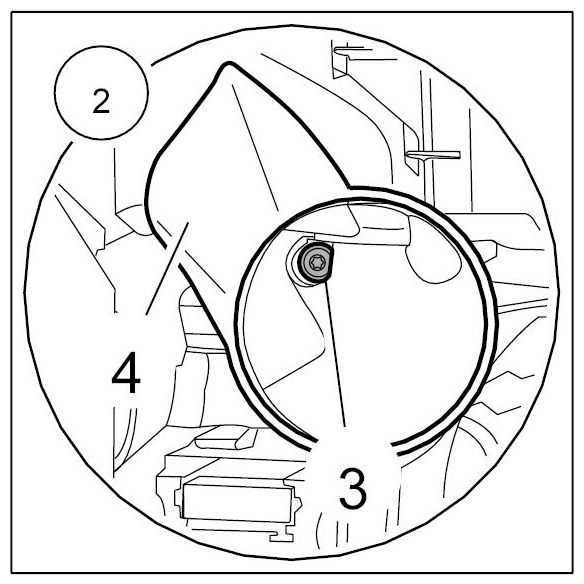

3. Remove left and right air guide. To do this, unscrew fastening screw -3-  and remove left and right air guide -4-  .
   Fig 3: Identifying Fastening Screw And Left And Right Air Guide

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

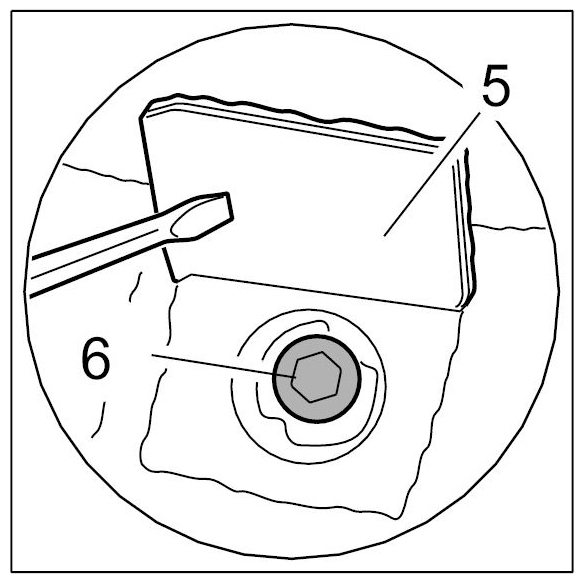

4. Unscrew the fastening screws for the instrument panel carrier. To do this, lift the carpet -5-  with a screwdriver.
   Fig 4: Unscrewing Fastening Screws For Instrument Panel Carrier Using Screwdriver

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

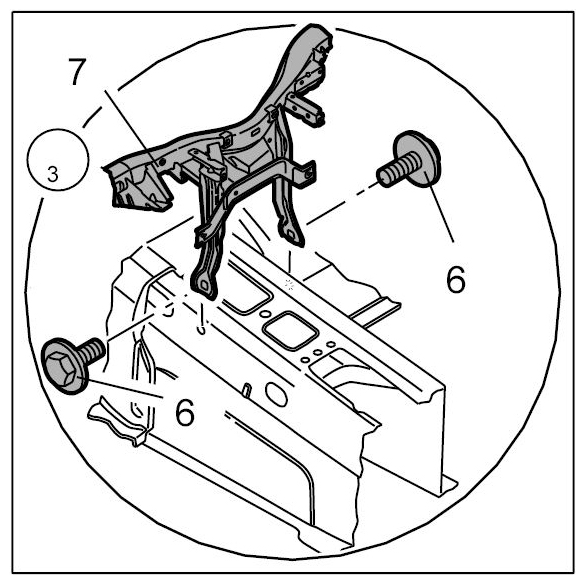

5. Unscrew the fastening screws -6-  on the instrument panel carrier -7-  .
   Fig 5: Identifying Instrument Panel Carrier And Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

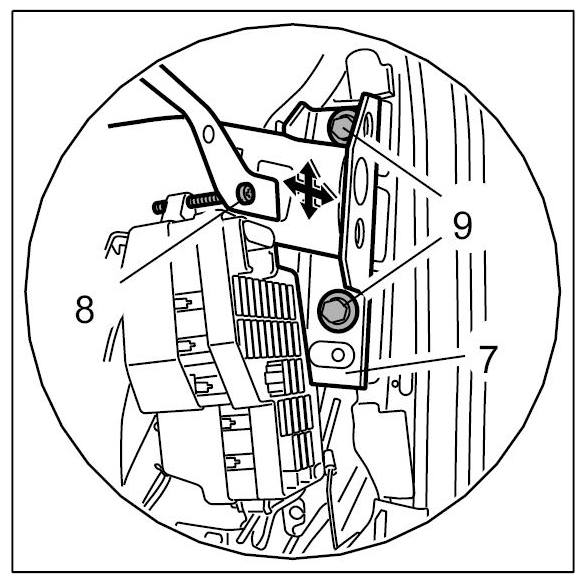

6. Screw out the top fastening screws -8-  of the relay carrier until the fastening screws -9-  are accessible on the instrument panel carrier -7-  .
   Fig 6: Screwing Out Top Fastening Screws Of Relay Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

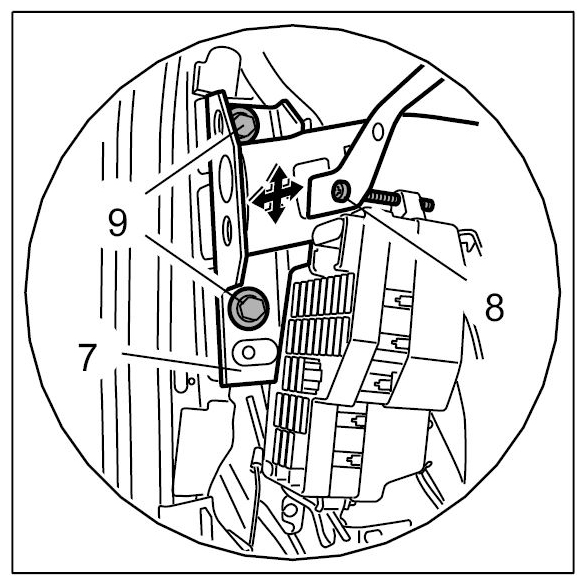

7. Unscrew the fastening screws -9-  on the instrument panel carrier -7-  .
   Fig 7: Unscrewing Fastening Screws On Instrument Panel Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
8. Adjust the gap dimension and height difference between the instrument panel and door trim panel by moving the instrument panel carrier -7-  horizontally and vertically.
   Fig 8: Moving Instrument Panel Carrier

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Re-check the gap dimension and height difference -arrows-  between the instrument panel -1-  and the door trim panels -2-  visually.
   Fig 9: Checking Gap Dimension And Height Difference Between Instrument Panel And Door Trim Panels

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Tighten fastening screws -6-  and -9-  to the specified tightening torque → Tightening torque: 17 ft lbs.+/-2 ft lbs. → Tightening torque: 17 ft lbs.+/-2 ft lbs..
    Fig 10: Tightening Fastening Screws

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
11. Screw in the top fastening screws -8-  on the relay carrier.
    Fig 11: Tightening Top Fastening Screws On Relay Carrier

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
12. Fold down the carpet -5-  and press on it; use double-sided adhesive tape, if necessary.
    Fig 12: Folding Down Carpet

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
