Installing Luggage Compartment Trim Panel (Loadspace Cover)

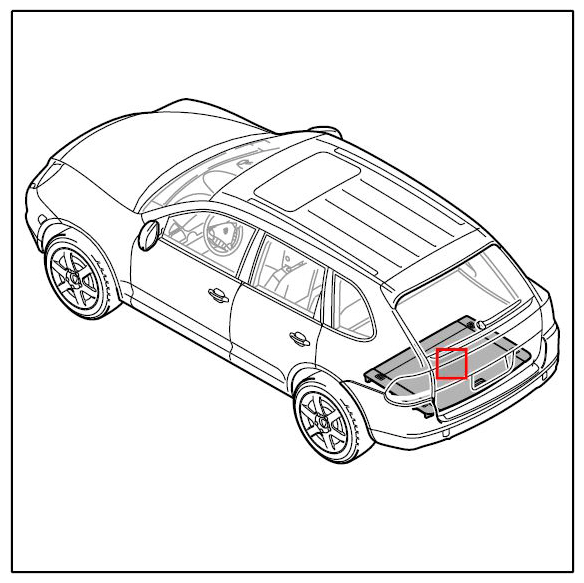

Fig 1: Identifying Luggage Compartment Trim Panel (Loadspace Cover)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position loadspace floor at sides -2, 3-  .

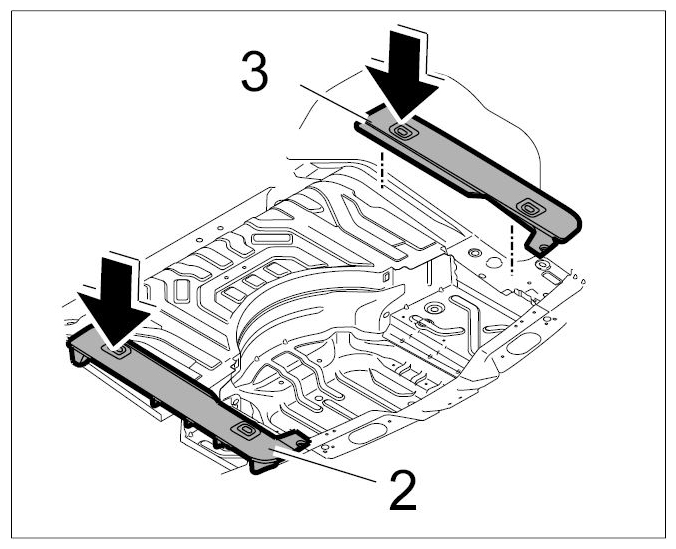

   Fig 2: Positioning Loadspace Floor At Sides

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Tighten fastening screws -4-  to the specified tightening torque. → Tightening torque: 8 Nm (6 Ft Lbs.)+/-1.5 Nm (+/-1.0 Ft Lbs.)

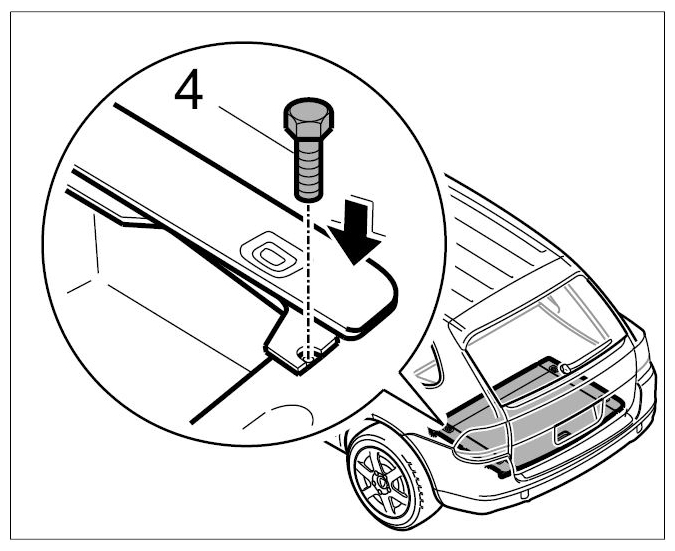

   Fig 3: Tightening Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Engage loadspace cover -1-  in front connection points by pushing forwards and close loadspace cover.

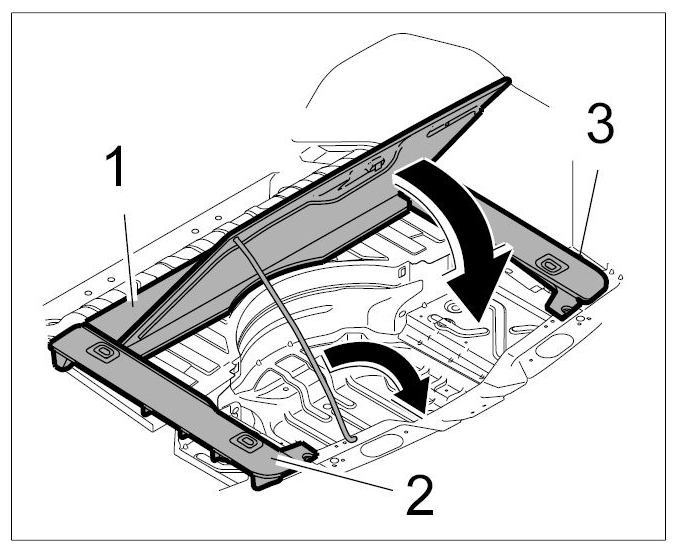

   Fig 4: Engaging Loadspace Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Position tie-down rings -5-  .

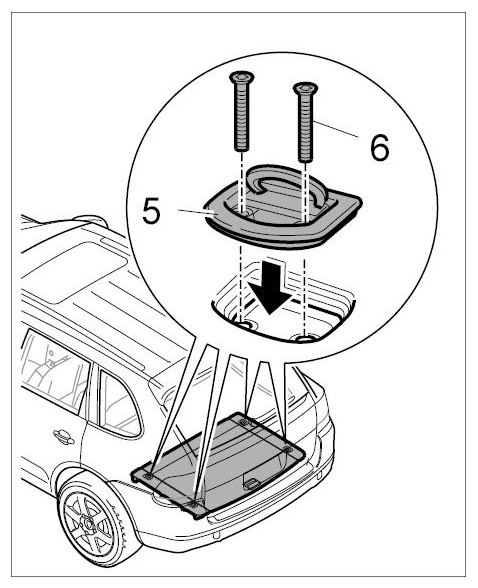

   Fig 5: Positioning Tie-Down Rings

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. Unfold lashing tie-down ring strap.
6. Screw in fastening screws -6-  .
   Fig 6: Installing Lashing Tie-Down Ring Strap

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Ensure Gaps Are Even.
8. Tighten fastening screws to the specified tightening torque. → Tightening torque: 8 Nm (6 Ft Lbs.)+/-1.5 Nm (+/- 1.0 ft lbs.)
9. Open and close loadspace cover -1-  .
   Fig 7: Opening Loadspace Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
