Removing Rear Luggage Compartment Side-Trim Panel: Notes

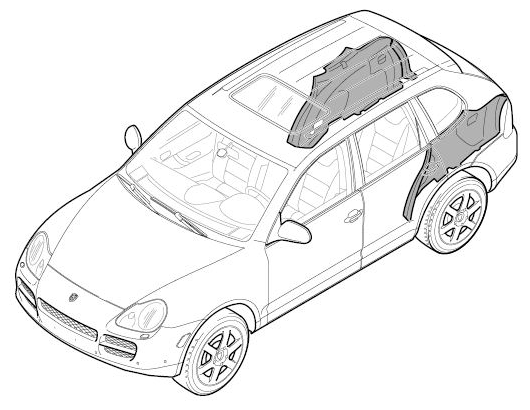

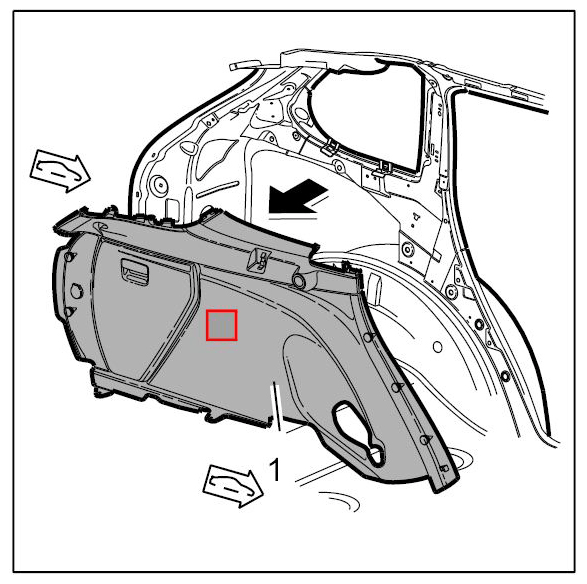

Fig 1: Identifying Rear Luggage Compartment Side-Trim Panel Position

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Information

• In order to reduce the unclipping forces and thereby the risk of damage during removal, the process must take place at the accessible connection points using a suitable tool.

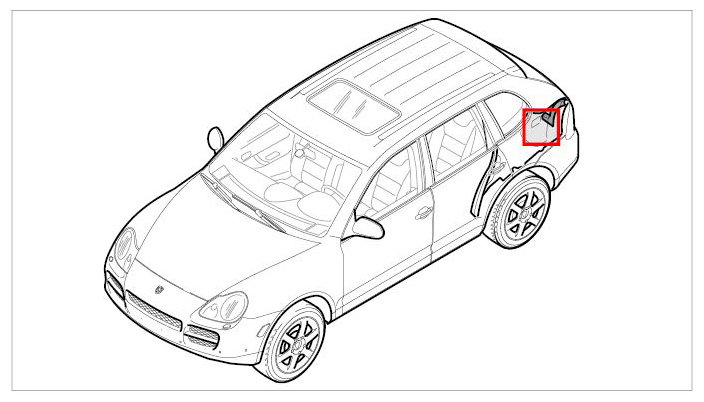

  Fig 2: Identifying Rear Luggage Compartment Side-Trim Panel

  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

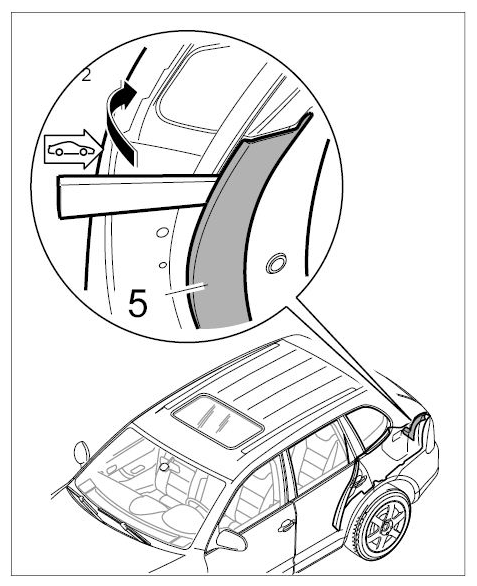

1. Unclip end piece.
   1. 1.1. Unclip end piece -5-  at the marked areas, lift the trim panel slightly at the rear and lever the clip connection out using an assembly wedge.
      Fig 3: Unclipping End Piece

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

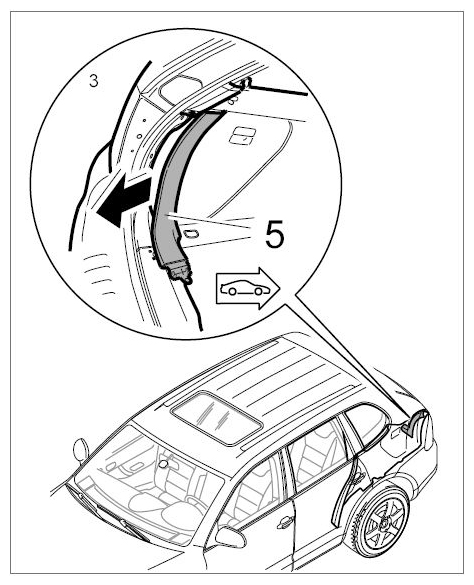

2. Remove end piece -5-  .
   Fig 4: Removing End Piece

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • In order to reduce the unclipping forces and thereby the risk of damage during removal, the process must take place at the accessible connection points using a suitable tool.
   Fig 5: Removing Trim Panel

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Information

   • In order to reduce the unclipping forces and thereby the risk of damage during removal, the process must take place at the accessible connection points using a suitable tool.

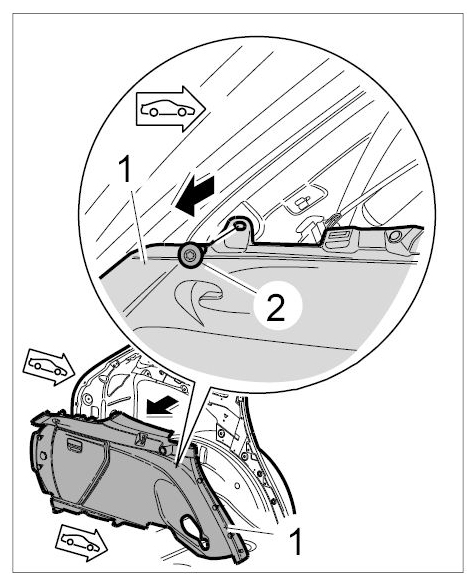

3. Unscrew fastening screw -2-  at the C-pillar.
   Fig 6: Removing C-Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

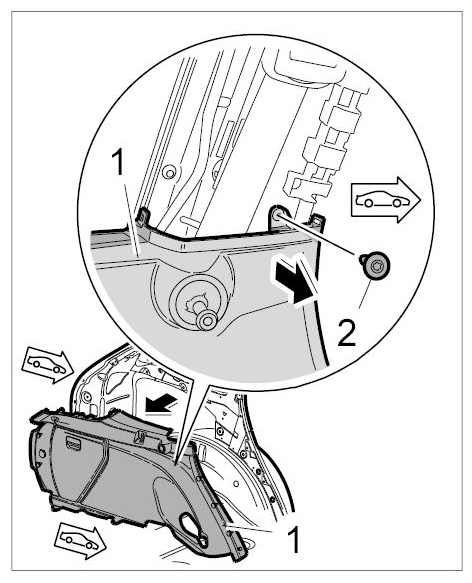

4. Unscrew fastening screw -2-  at the D-pillar.
   Fig 7: Removing D-Pillar

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

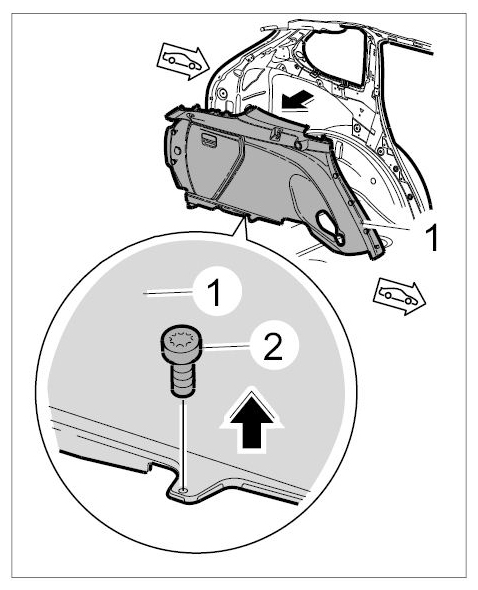

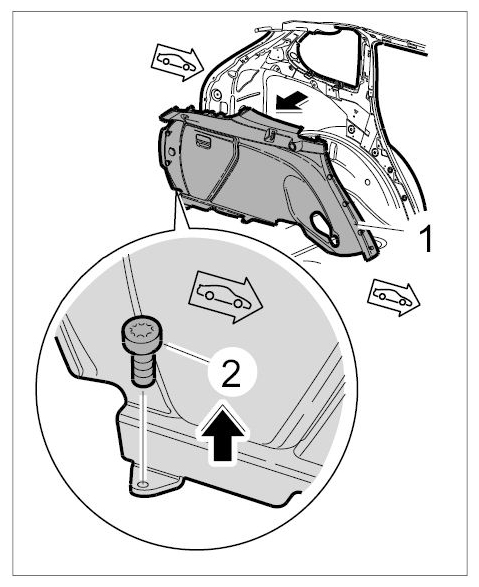

5. Unscrew fastening screws -2-  on luggage compartment floor.
   Fig 8: Removing Fastening Screws On Luggage Compartment Floor (1 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
   Fig 9: Removing Fastening Screws On Luggage Compartment Floor (2 Of 2)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Unclip side trim panel for luggage compartment in vicinity of D-pillar.

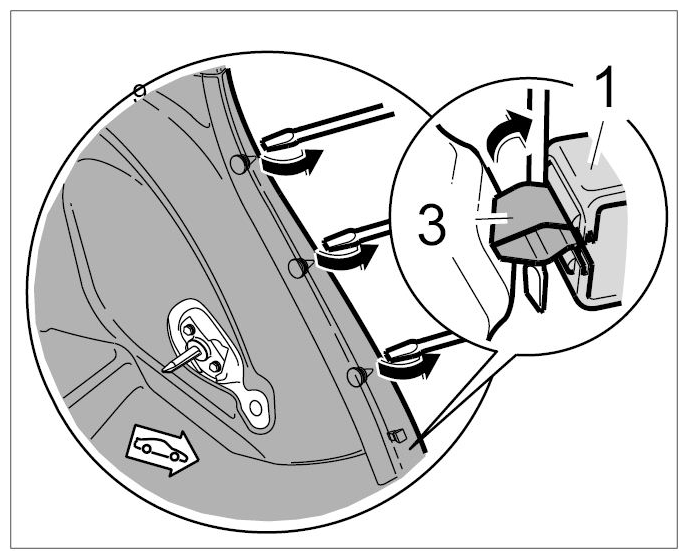

   1. 6.1. Unclip side trim panel for luggage compartment -1-  at marked areas, lift trim panel slightly and use a screwdriver to lever the clip connection -3-  out.
      Fig 10: Unclipping Side Trim Panel For Luggage Compartment (1 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
      Fig 11: Unclipping Side Trim Panel For Luggage Compartment (2 Of 2)

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

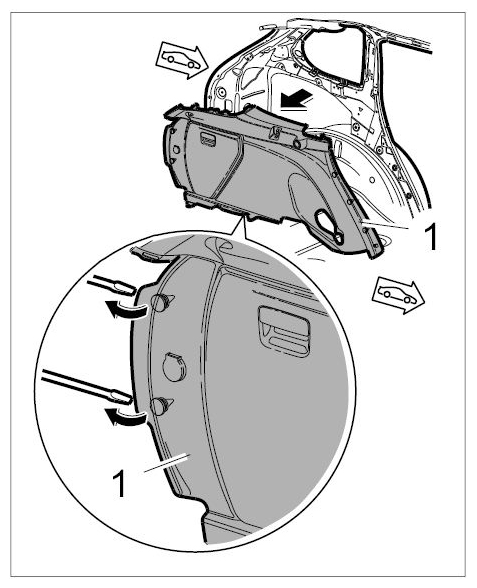

7. Unclip side trim panel for luggage compartment in vicinity of C-pillar.
   1. 7.1. Unclip side trim panel for luggage compartment -1-  at marked areas, lift trim panel slightly and use a screwdriver to lever the clip connection -3-  out.
      Fig 12: Unclipping Side Trim Panel For Luggage Compartment

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

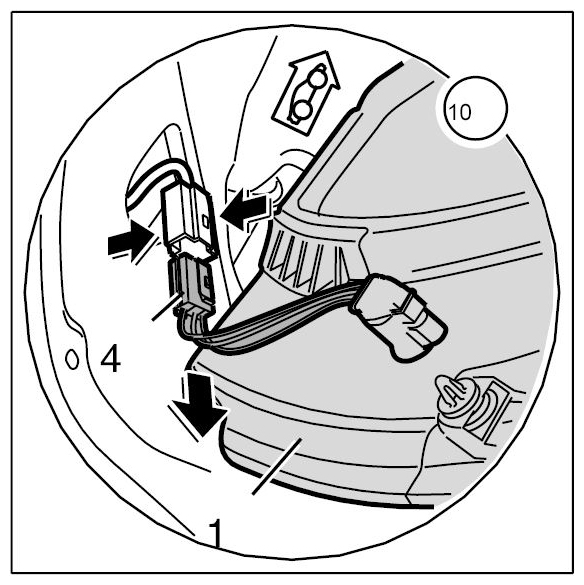

8. Disconnect plug connection -4-  .
   Fig 13: Disconnecting Plug Connection

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
9. Remove side trim panel for luggage compartment.
