Installing Rear Handle

Fig 1: Identifying Rear Handle

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Position grab handle -1- .

Fig 2: Positioning Grab Handle
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Screw in fastening screws -3- and tighten to the specified torque. → Tightening torque: 3.5 ft lbs.

Fig 3: Installing Grab Handle Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Clip in cover -2- .

Fig 4: Installing Grab Handle Cover Clip
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

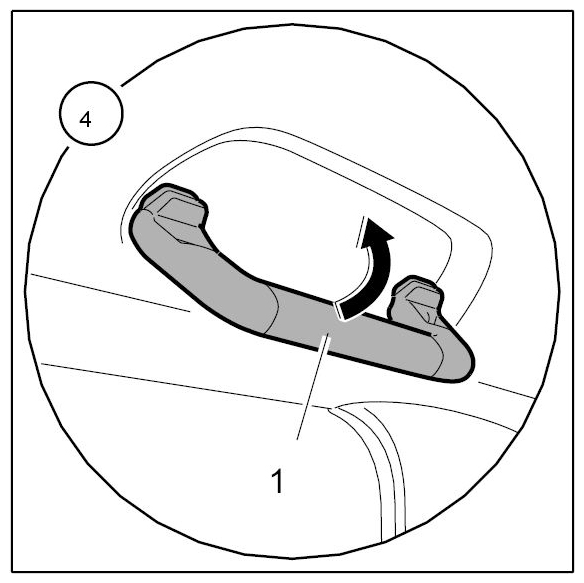

Fold in grab handle -1- .
1. 4.1. Check whether the grab handle automatically folds back to the normal position after it is released.

  Fig 5: Folding Grab Handle
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
