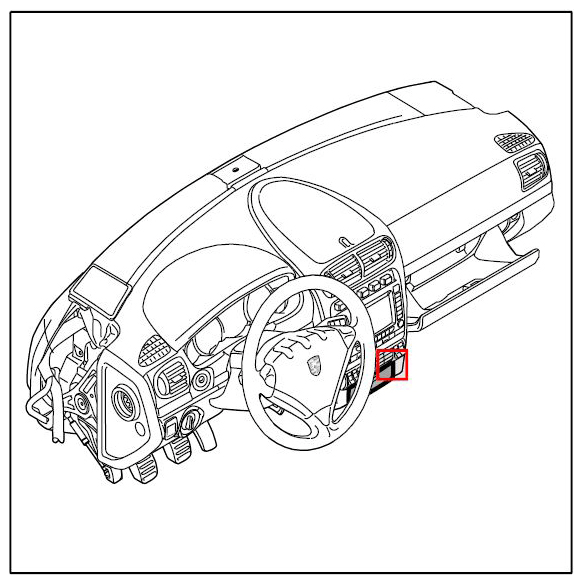

Installing Front Ashtray
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Insert front ashtray -1-
(-arrow A-
).
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Connect connector.

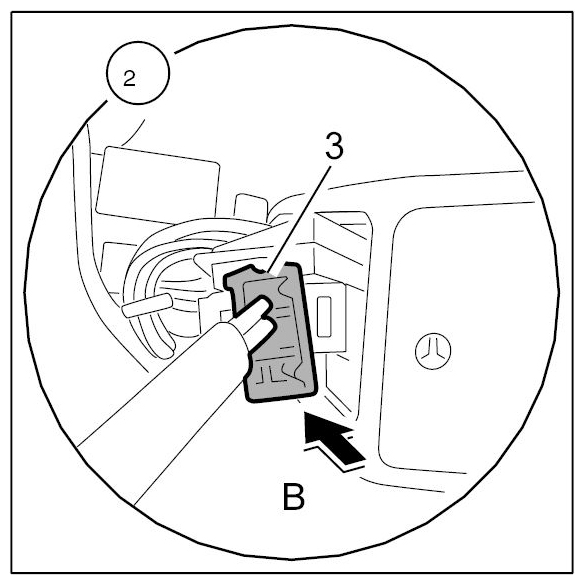

- 2.1. Push on the plug -3-
until the locking tabs engage audibly -Arrow B-

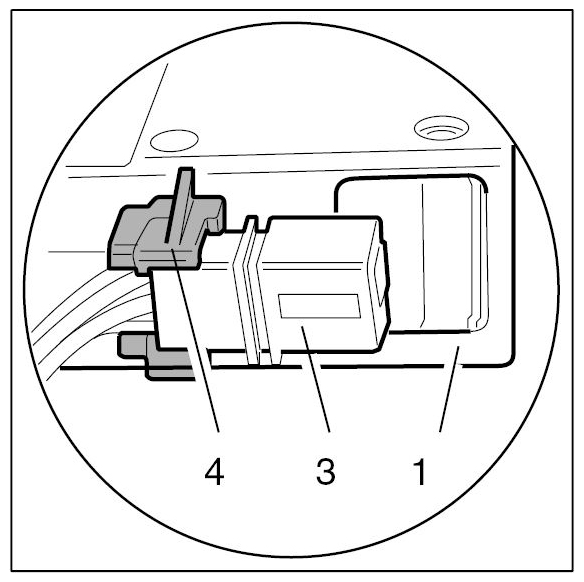

. When doing so, ensure that the plug -3-
is positioned correctly in the mount -4-
for the front ashtray -1-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- Install front ashtray.

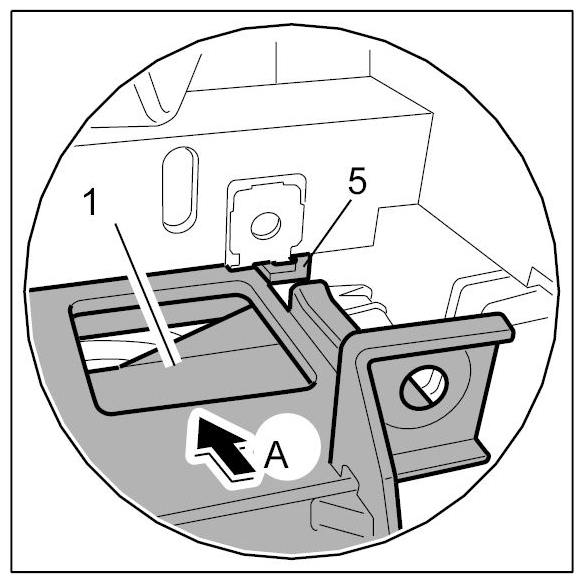

- 3.1. Insert front ashtray -1-
into the guides -5-
and push it in completely -arrow A-
.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

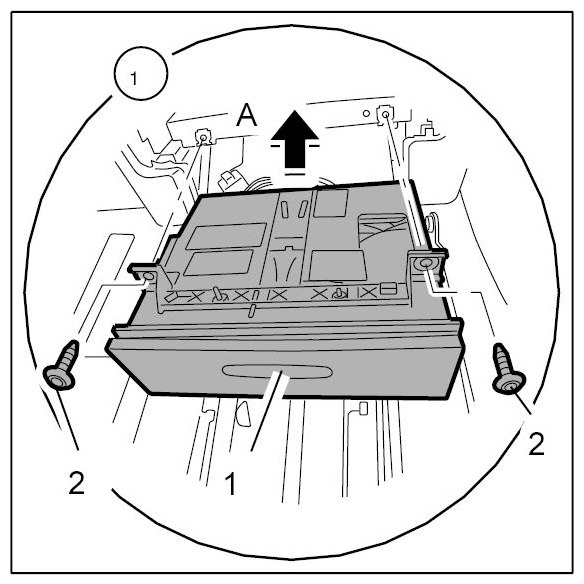

- 3.2. Screw in -2-
fastening screws.
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
- 3.3. Put the gear-shift lever in the -P- position.
