Removing Centre Console

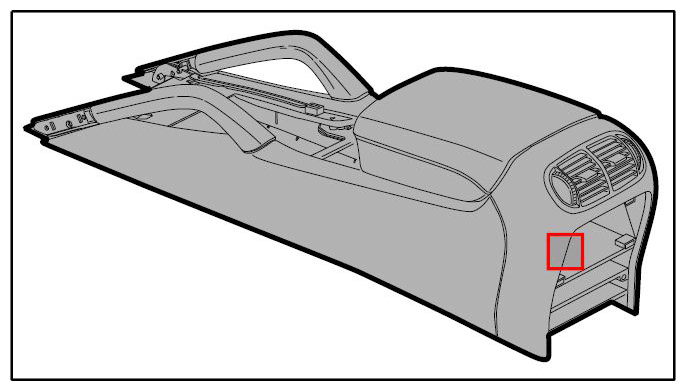

Fig 1: Identifying Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fig 2: Identifying Centre Console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove covers and cupholder.
1. 1.1. Unclip the covers -2, 4- from the centre console.
2. 1.2. Open cupholder -3- .
3. 1.3. Push cupholder -3- upwards and unclip from the centre console.

  Fig 3: Removing Covers And Cupholder
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove socket or cigarette lighter
- only vehicles with the relevant I number.
1. 2.1. Unscrew fastening screws -5- .

  Fig 4: Removing Cupholder Socket
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 2.2. Unclip and remove socket or cigarette lighter -4a- from the centre console.

  Fig 5: Removing Socket Or Cigarette Lighter From Centre Console
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 2.3. Disconnect the plug connections.
4. 2.4. Press in the plug locking tabs -6- (-arrow A- ).

  Fig 6: Disconnecting Plug Connections
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
5. 2.5. Pull off plug -6- (-arrow B- ).

  Fig 7: Pulling Off Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.

  Fig 8: Identifying Centre Console Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Disconnect plug connection.
1. 3.1. Unscrew fastening screw -14- .

  Fig 9: Disconnecting Plug Connection Fastening Screw
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 3.2. Move the antennae for Kessy -12- slightly to the front and lift.

  Fig 10: Removing Antennae For Kessy
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. 3.3. Pull off plug connection -13- .

  Fig 11: Pulling Off Plug Connection
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release centre console at the front.
1. 4.1. Unclip covers for grab handles -7- .
2. 4.2. Unscrew fastening screws -8- .

  Fig 12: Unscrewing Grab Handles Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the centre console in the centre.
1. 5.1. Unscrew fastening screws -9- .

  Fig 13: Removing Centre Console Fastening Screws
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Release the centre console at rear.
1. 6.1. Take out the mat -10- .

  Fig 14: Releasing Centre Console (Rear)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. 6.2. Unscrew fastening screws -11- .

  Fig 15: Releasing Centre Console Fastening Screws (Rear)
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Pull off plug.
1. 7.1. Release plug -15- (-arrows C- ) and pull it off (-arrow D- ).

  Fig 16: Releasing Centre Console Plug
  Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove the centre console → Removing Centre Console .

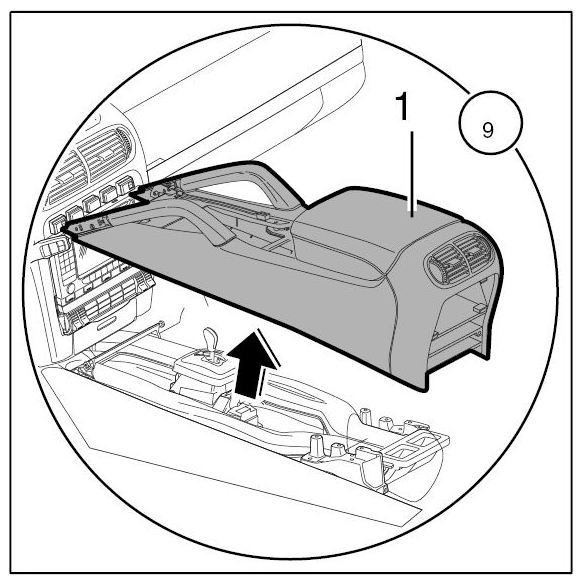

Fig 17: Removing Centre Console
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
