Installing Front Vent Guide

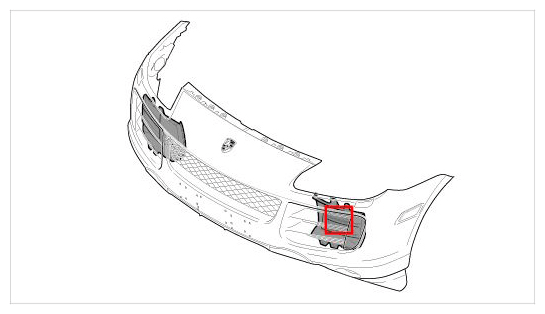

Fig 1: Identifying Installation Position Of Front Vent Guide

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

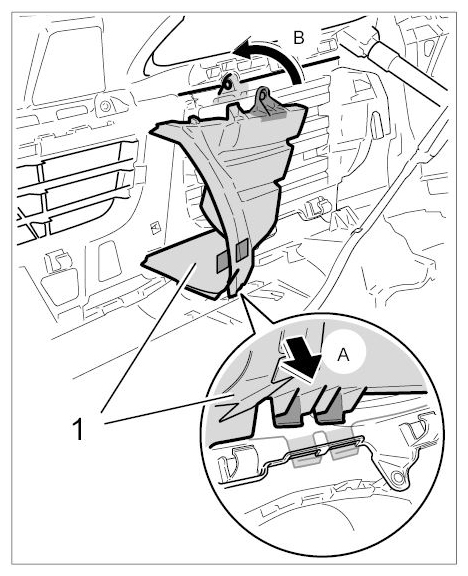

Insert front vent guide -1- into the retaining slot from above -arrow A- and position on the front apron -arrow B- .

Fig 2: Inserting Front Vent Guide
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

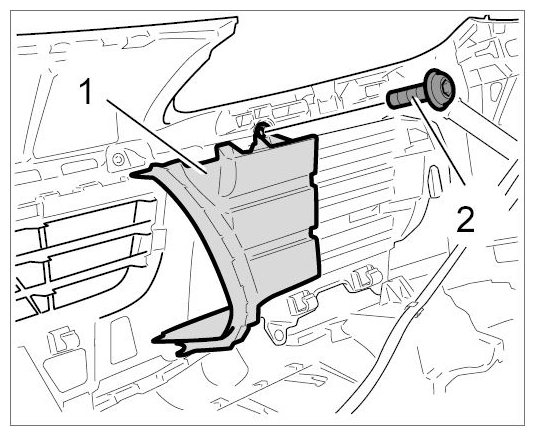

Secure front vent guide -1- with the fastening screw -2- .

Fig 3: Identifying Fastening Screw
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
