Installing Buzzer For Parking Aid

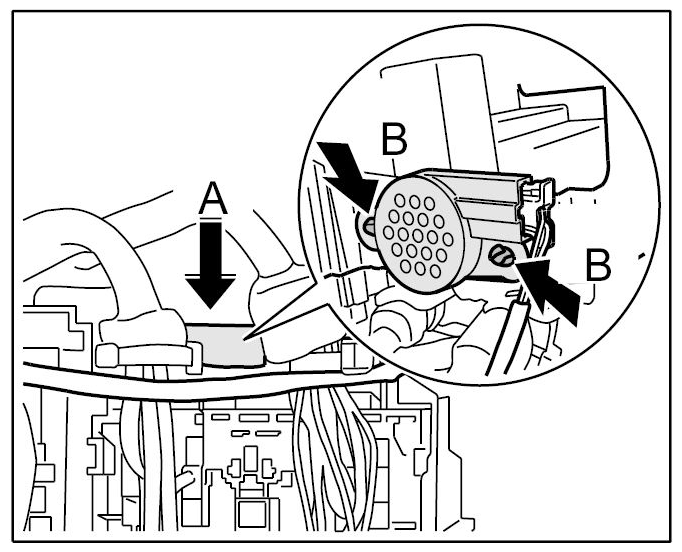

Insert the plug -arrow A- until the locking tabs -arrows B- are felt to engage.

Fig 1: Inserting Connectors
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

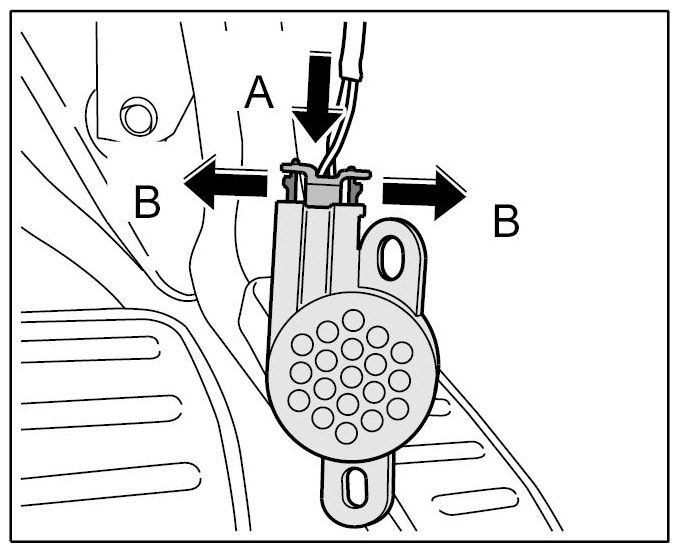

Push in buzzer -arrow A- until you feel the locking tabs -arrows B- engage.

Fig 2: Inserting Buzzer
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
