Bose Mid-range loudspeaker

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

1. Remove the three fastening screws -2-  from the loudspeaker cover in the door panel.

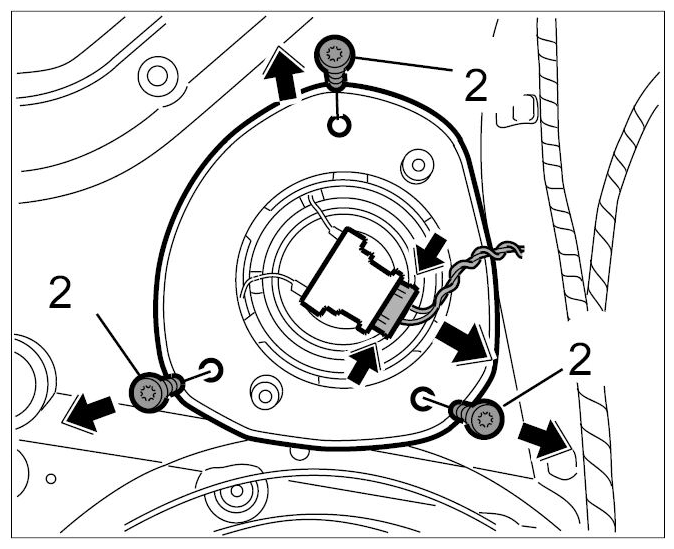

   Fig 1: Unscrewing Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press the electric plug connection together and disconnect.
3. Remove the two fastening screws -2-  from the loudspeaker cover and remove the loudspeaker.

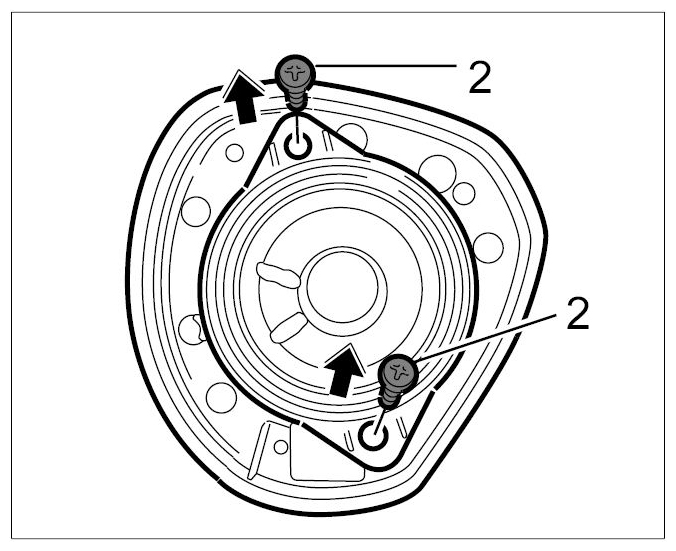

   Fig 2: Removing Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
