Bose Mid-Range Loudspeaker

Information

• Always use the screws and seals included in the scope of delivery.

1. Position the loudspeaker on the cover and secure it with the two fastening screws -2-  . → Tightening torque: 1 ftlb.
   Fig 1: Screwing Down Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position the cover with loudspeaker on the door trim panel and secure it with the three fastening screws -2-  . → Tightening torque: 1 ftlb.

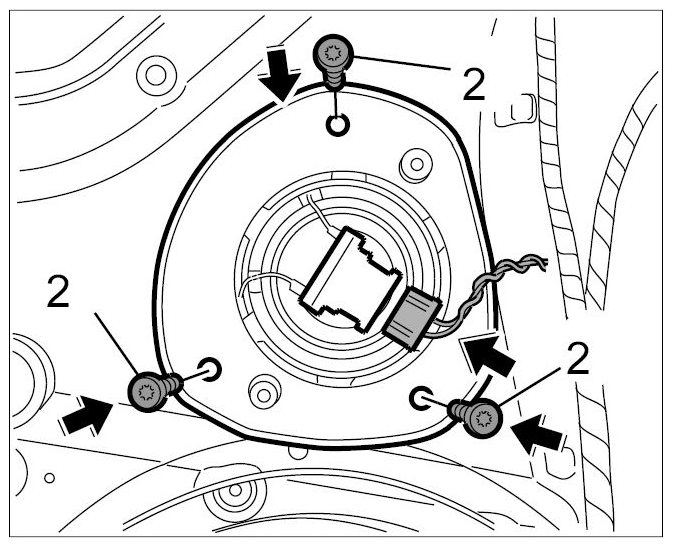

   Fig 2: Screwing Down Cover With Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Connect the electrical plug, pressing on until it clicks into place.
