Removing Subwoofer Together With Second Battery

Information

• The subwoofer is located in the spare wheel well.
• The subwoofer is installed together with the second battery instead of the spare wheel.
• The subwoofer is only used in conjunction with the Bose sound system.

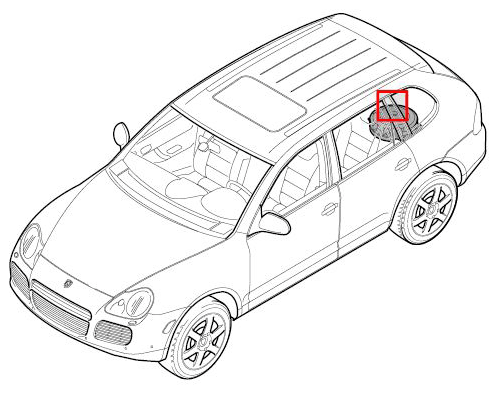

Fig 1: Overview Of Subwoofer

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Switch off all loads and remove ignition key.
2. Removing subwoofer fastening:
   1. 2.1. Remove tyre sealant -1-  if present.
   2. 2.2. Unscrew the two fastening nuts -2-  .
   3. 2.3. Undo fastening screw -3-  and washer.

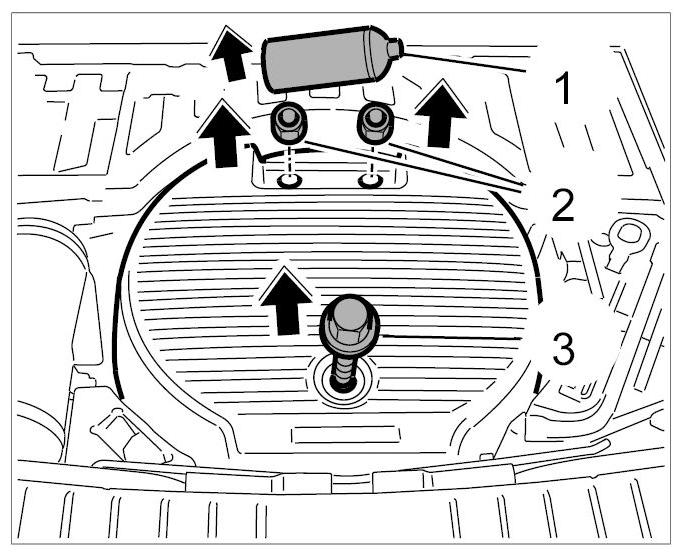

      Fig 2: Releasing Subwoofer Together With Second Battery

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Disconnect plug connection and remove subwoofer:
   1. 3.1. Remove plug connection from retaining bracket on the subwoofer and disconnect the plug connection.
   2. 3.2. Lift subwoofer up and out.

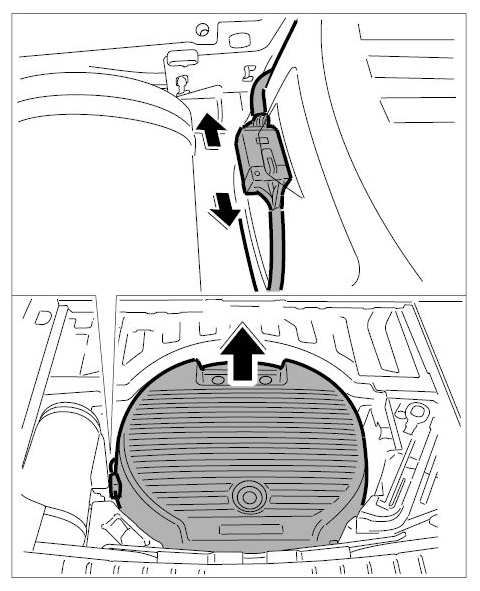

      Fig 3: Disconnecting Plug Connection And Removing Subwoofer Together With Second Battery

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
