Removing Passenger's Socket

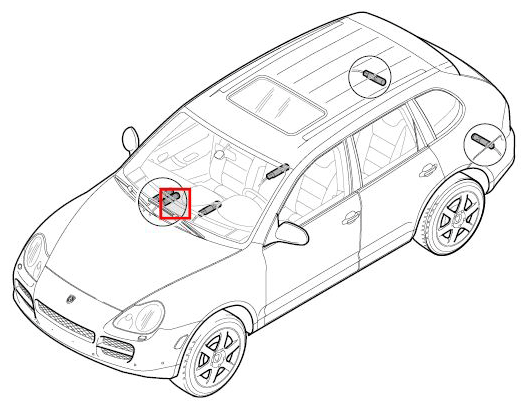

Fig 1: Overview Of Passenger's Sockets
G09414873Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Release -a-  and pull off plug.

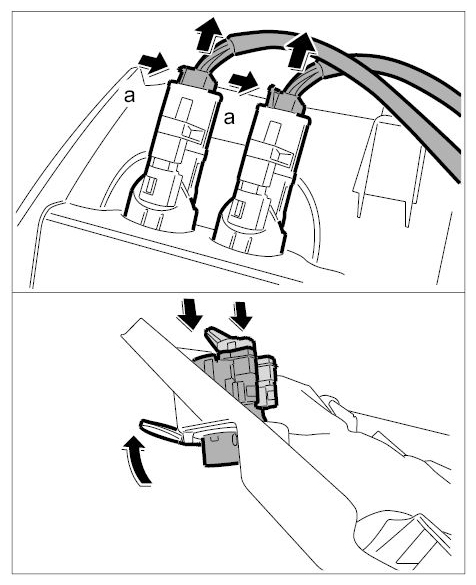

    Fig 2: Pulling Plug Off Passenger's Socket
    G09414874Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Open socket cover and press out the passenger's socket -arrow-  .
