Removing Instrument Cluster

Remove left dashboard cover → Removing dashboard cover on the driver's side .

Switch off ignition and remove ignition key.

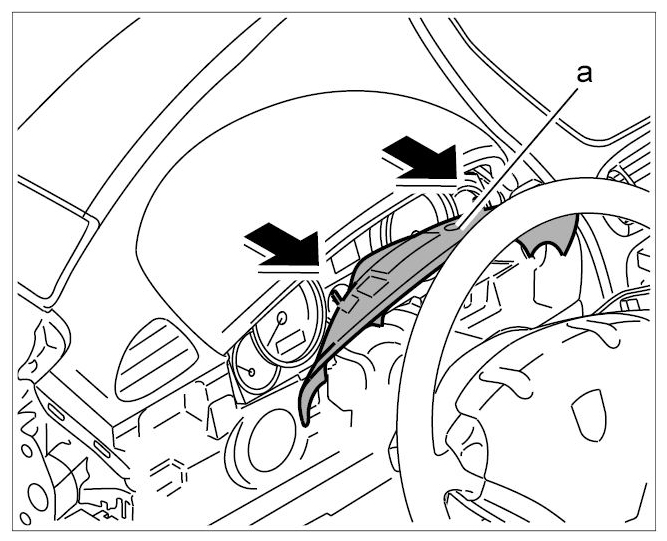

1. Use a plastic spatula to unclip the trim from the upper cover at the left and right.
   Fig 1: Unclipping Trim From Upper Cover At Left And Right

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

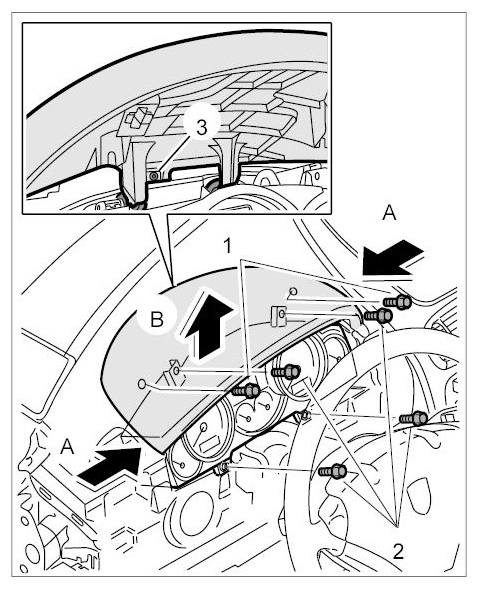

2. Unscrew both fastening screws -1-  for the dashboard insert (cover for instrument cluster).
   Fig 2: Unscrewing Dashboard Insert Fastening Screws

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Unscrew fastening screws for the instrument cluster -2-  .
4. Press in the dashboard inset (cover for instrument cluster) at the sides in order to unclip it -arrows A-  .
   1. Lift it slightly at the front -arrow B -  .
   2. Unscrew fastening screw -3-  .

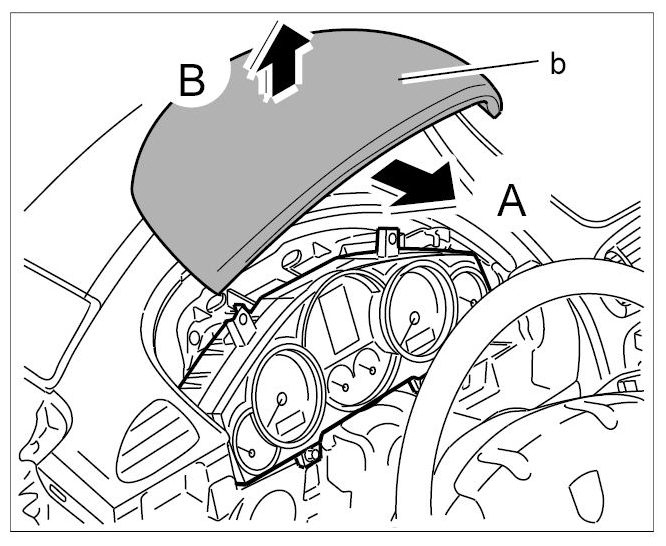

5. First pull the dashboard insert (cover for instrument cluster) -b-  to the rear -arrow A-  , then remove it by pulling it upwards -arrow B-  .
   Fig 3: Removing Dashboard

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Lift up the instrument cluster, pull it forward and fold it forward.
   Fig 4: Lifting Up Instrument Cluster

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
7. Release the lock -arrow-  and pull off the connectors -A-  .
8. Remove instrument cluster.
