Installing Steering-Column Switch

  1. Slide steering column switch as far as it will go on to the steering column and secure with fastening screw. → Tightening torque: 4.5 ftlb.

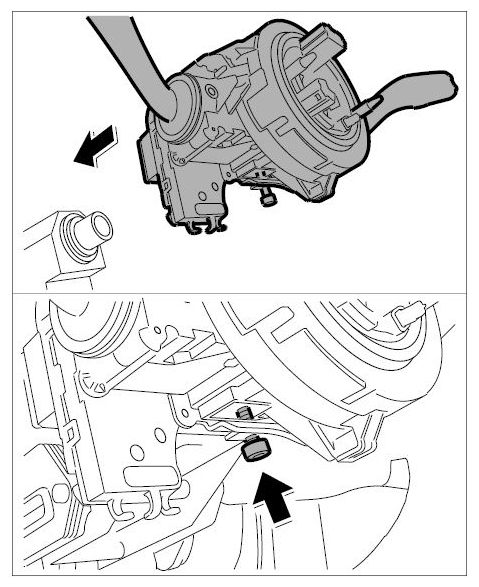

    Fig 1: Installing Steering Column Switch
    G09415385Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Push on plug of steering column switch until it is felt to engage.

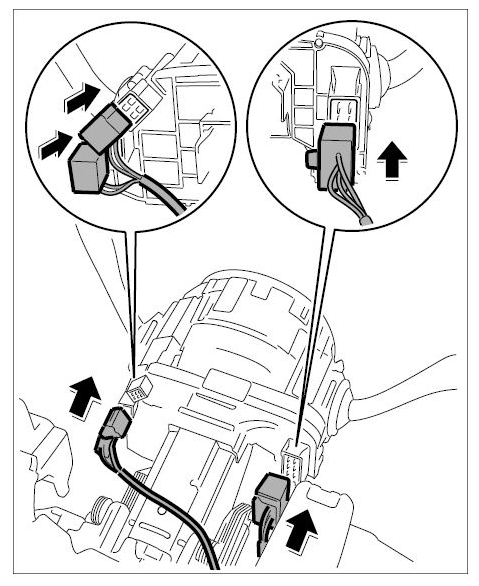

    Fig 2: Inserting Plug
    G09415386Courtesy of PORSCHE CARS NORTH AMERICA, INC.
