Assembling Steering Column Switch

Insert switch for wiper and washer system into the mount.

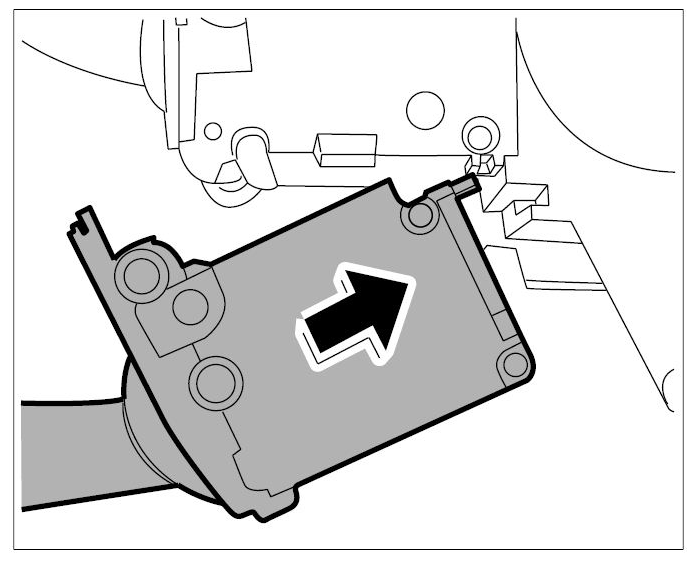

Fig 1: Inserting Switch For Wiper And Washer System
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Engage the GRA switch and fold it upwards.

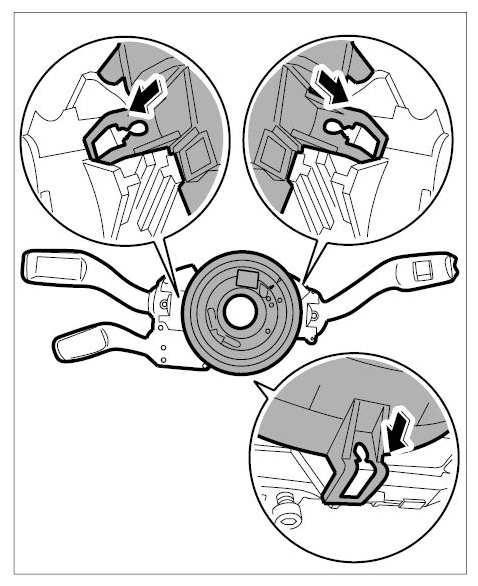

Fig 2: Installing GRA Switch
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Turn the steering column switch and position the electronic unit.
Turn the steering column switch round again and screw in the six fastening screws.

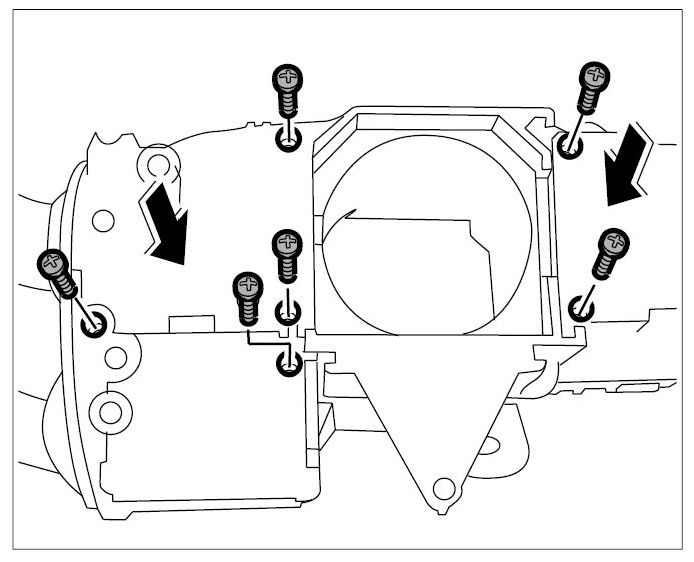

Fig 3: Screwing In Fastening Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
WARNING:
Airbag contact unit not set correctly
- Malfunction in driver's airbag unit
→ When removing and installing the steering column switch, turn the steering wheel so that the wheels are in straight-ahead position. This ensures that the airbag contact unit is locked in the central position.

→ Do not trap the cable of the airbag contact unit.

→ Check that the cable is routed correctly.
WARNING:
Airbag contact unit not set correctly
- Malfunction in driver's airbag unit
→ When removing and installing the steering column switch, turn the steering wheel so that the wheels are in straight-ahead position. This ensures that the airbag contact unit is locked in the central position.

→ Do not trap the cable of the airbag contact unit.

→ Check that the cable is routed correctly.

Information

If the airbag contact unit setting was changed accidentally, it must be adjusted. To position the airbag contact unit in the central position, press the locking element and turn the rotor carefully to the left as far as it will go. Then turn the rotor carefully to the right, approx. 3.5 to 3.75 revolutions, until the lock engages. The arrow marking on the rotor must be positioned between the arrow markings on the contact unit.
Position airbag contact unit and press on the steering column switch until the three tabs engage -Arrows- .

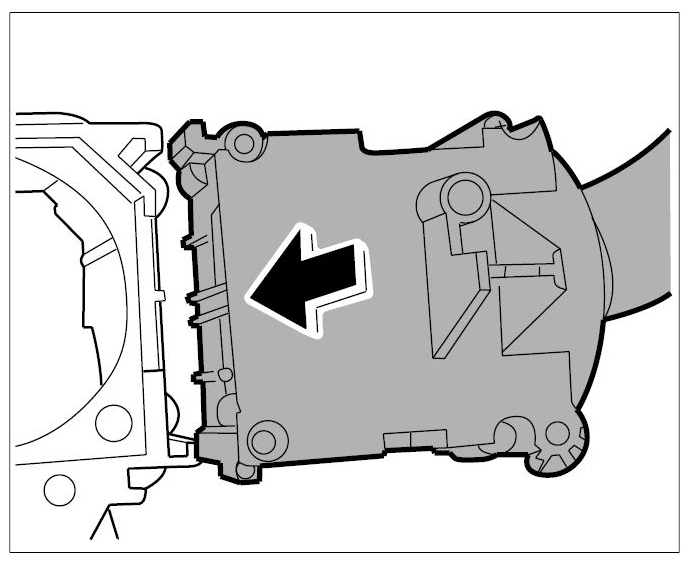

Fig 4: Installing Airbag Contact Unit
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
