Installing Dipped Beam Halogen Bulb

→ Switch off ignition and remove ignition key.

→ Switch off the relevant loads when changing bulbs.

→ Only use bulbs listed in the bulb table.

→ Only install clean bulbs that are free of grease.

→ Always use a cloth or soft paper when working with bulbs.

→ Observe the safety instructions when changing a bulb in a Bi-Xenon headlight.

→ In certain states, it is compulsory to carry spare light bulbs.

Information

• Observe instructions  in → WM 9423IN BULB TABLE AND INSTALLATION SPECIFICATIONS

1. Insert dipped beam bulb -1-  into the bulb holder for the dipped beam headlight -2-  (-Arrow-  ).

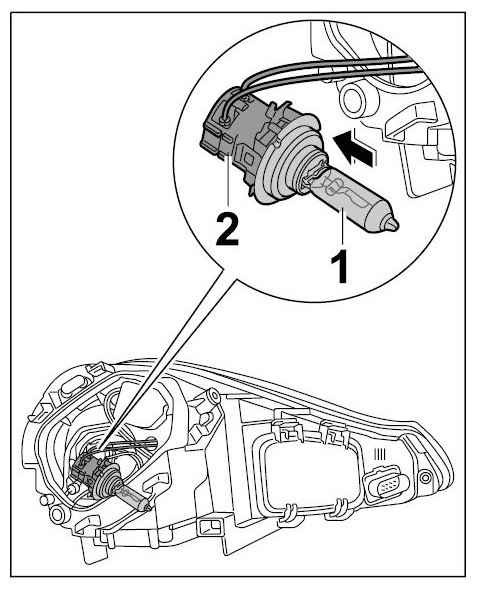

   Fig 1: Installing Dipped Beam Bulb

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Insert bulb holder for dipped beam headlight -1-  into the main headlight -Arrow A-  and turn it clockwise -Arrow B-  .

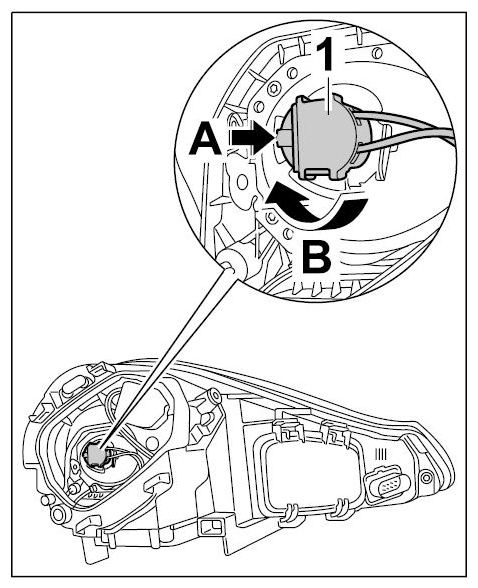

   Fig 2: Installing Bulb Holder For Dipped Beam Headlight

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Fit cover.
   1. 3.1. Insert cap -1-  down into the guides on the main headlight and swivel it up -Arrows A-  .
   2. 3.2. Press cap -1-  onto the main headlight until the two clips engage securely -Arrows B-  .

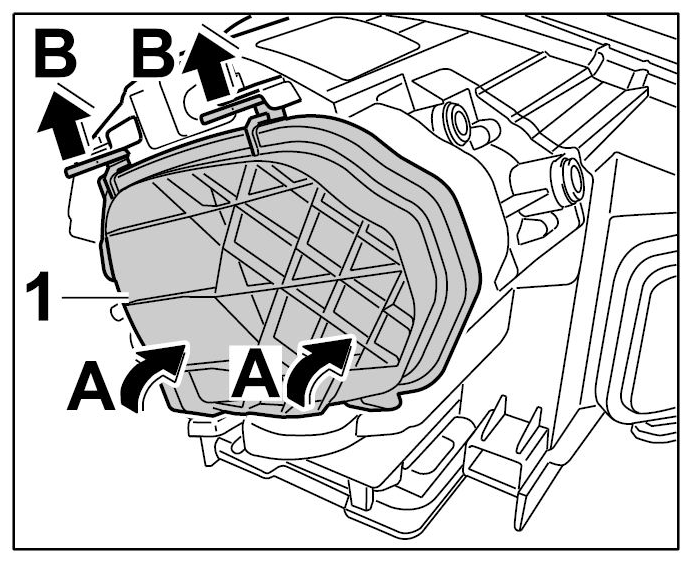

      Fig 3: Fitting Cover

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
