Removing Buzzer For Parking Aid

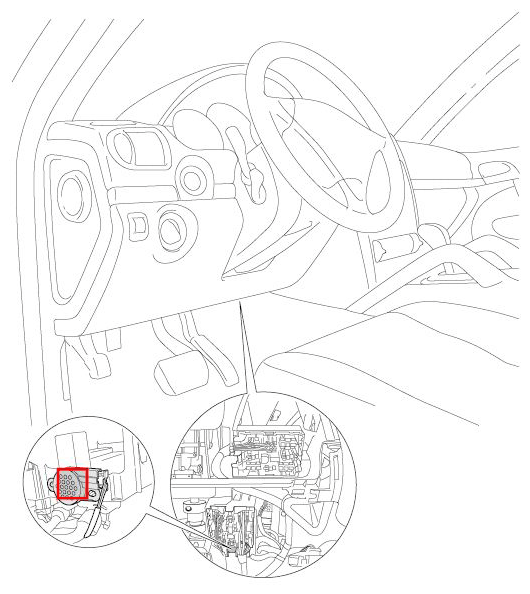

Fig 1: Overview Of Buzzer For Parking Aid
G09415125Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  1. Lever out buzzer using a screwdriver -arrow A-  and remove it in a downward direction -arrow B-  .

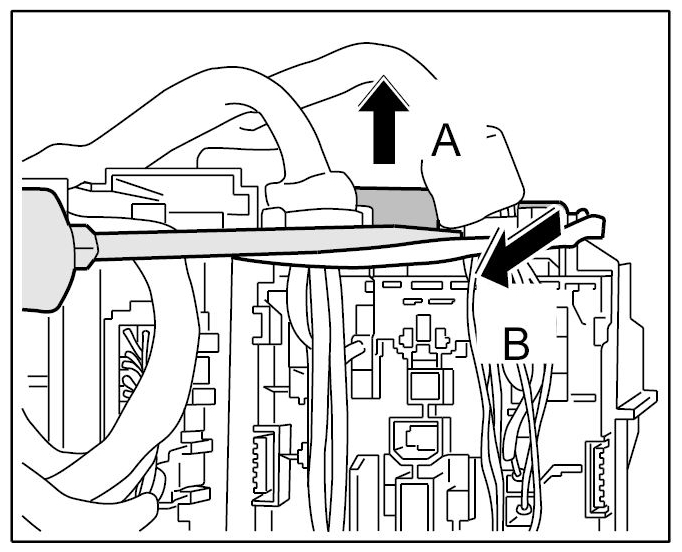

    Fig 2: Levering Out And Removing Buzzer For Parking Aid
    G09415126Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Release the plug -arrows A-  and pull off -arrow B-  .

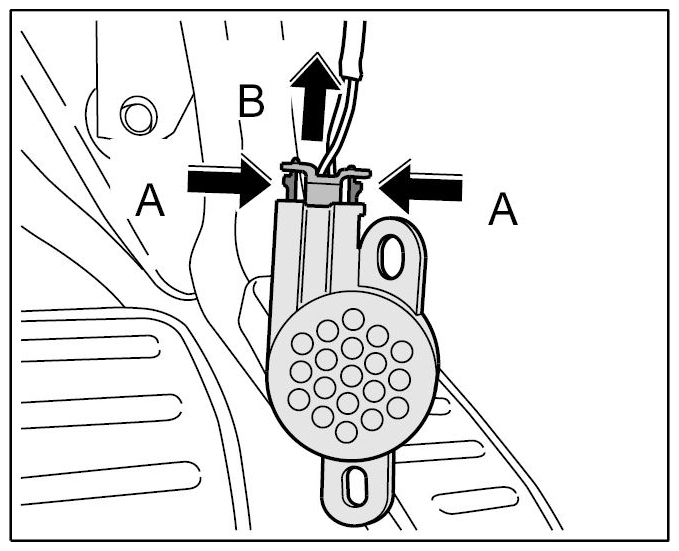

    Fig 3: Pulling Off Plug
    G09415127Courtesy of PORSCHE CARS NORTH AMERICA, INC.
