Sealing Bose Woofer

The sealing surface of the loudspeaker to which the sealing strip is affixed must be clean and free of grease.

Inspect sealing surface of loudspeaker for damage and deformation.

Check the moulded seal that is already affixed to the new loudspeaker for damage.

  1. Remove protective film from sealing strip. Affix sealing strip to loudspeaker, starting in the area of the plug connection.

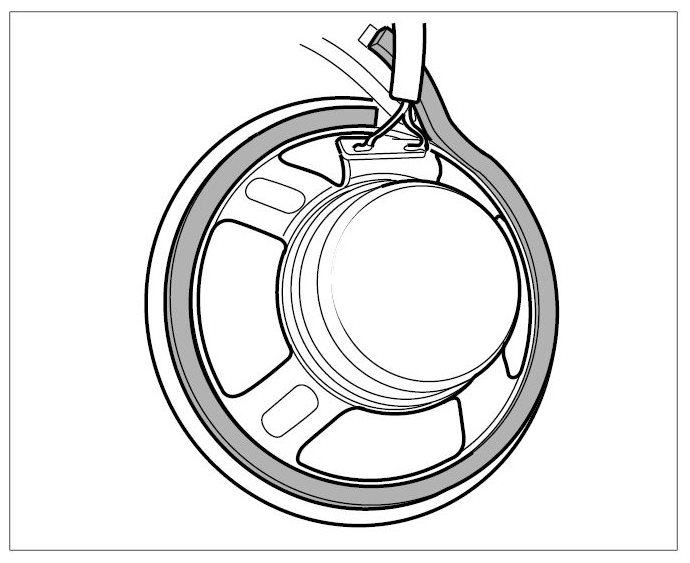

    Fig 1: Affixing Sealing Strip
    G09415047Courtesy of PORSCHE CARS NORTH AMERICA, INC.
