Bose Tweeter

Information

• Always use the screws and seals contained in the scope of delivery.

1. Position loudspeaker on D-pillar trim panel and secure it with the two fastening screws -2-  . → Tightening torque: 1 ftlb.

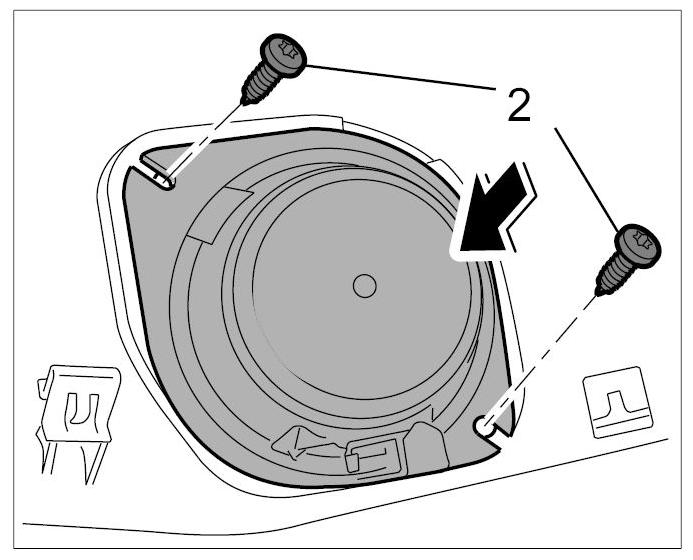

   Fig 1: Screwing Down Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
