Bose Tweeter

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

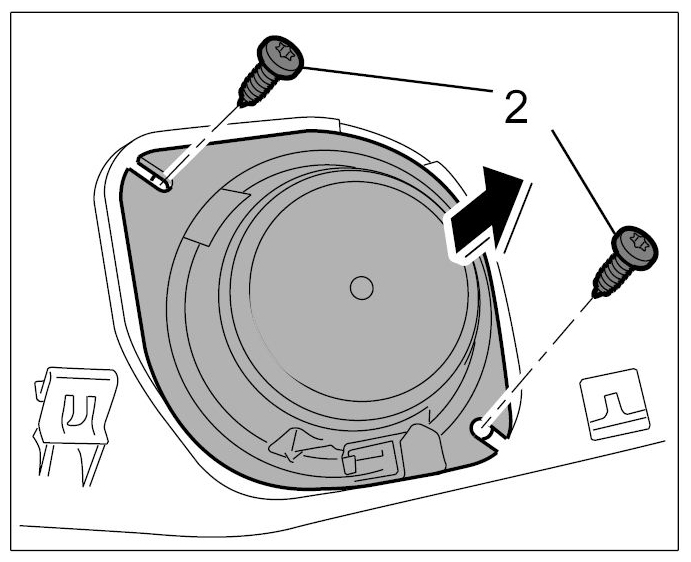

  1. Remove the two fastening screws -2-  of the loudspeaker from the D-pillar trim panel.
    Fig 1: Unscrewing Fastening Screws
    G09415042Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove loudspeaker.
