Bose Middle-Pitch Loudspeaker

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

  1. Remove the three fastening screws -2-  from the loudspeaker cover in the door panel.

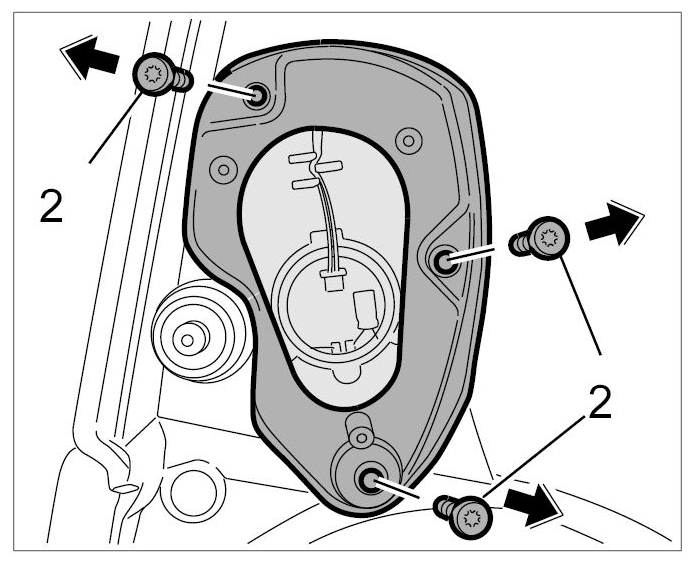

    Fig 1: Unscrewing Fastening Screws
    G09415040Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove the three fastening screws -2-  from the loudspeaker cover and remove the loudspeaker.

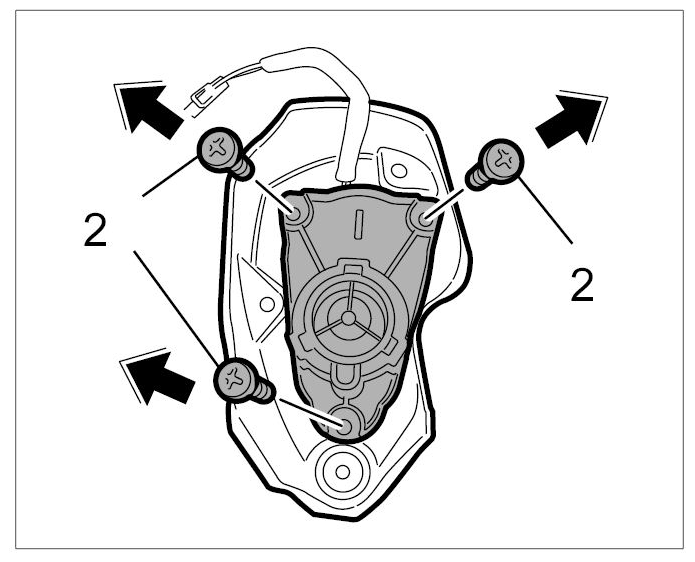

    Fig 2: Removing Loudspeaker
    G09415041Courtesy of PORSCHE CARS NORTH AMERICA, INC.
