Bose Low-Pitch Loudspeaker

NOTE: Incorrect handling of components
  • Risk of irreparable damage to electric and electronic components
  • Reduced functionality

→ Switch off the ignition, remove the ignition key and switch off the audio system before removing the loudspeakers.

  1. Remove the four fastening screws -1-  from the loudspeaker cover in the door module.

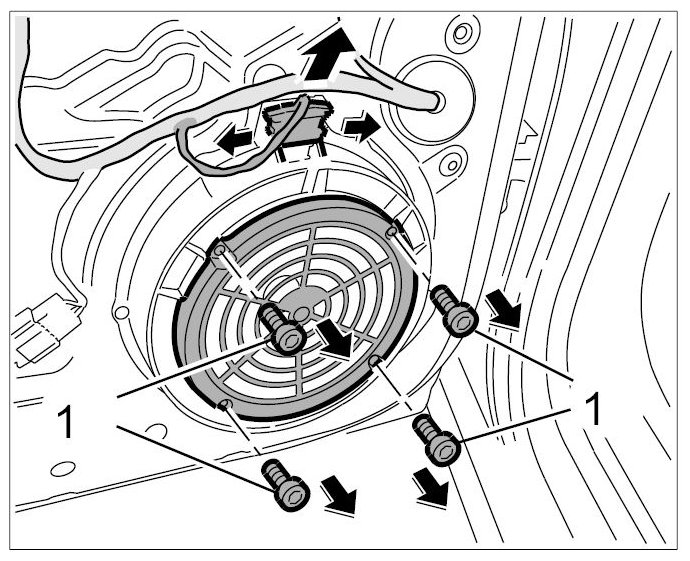

    Fig 1: Unscrewing Fastening Screws
    G09415039Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Press plug connection together and pull out connector.
  3. Pull connector retaining frame apart and pull out the connector.
  4. Remove loudspeaker.
