Bose Middle-Pitch Loudspeaker

Information

• Always use the screws and seals contained in the scope of delivery.

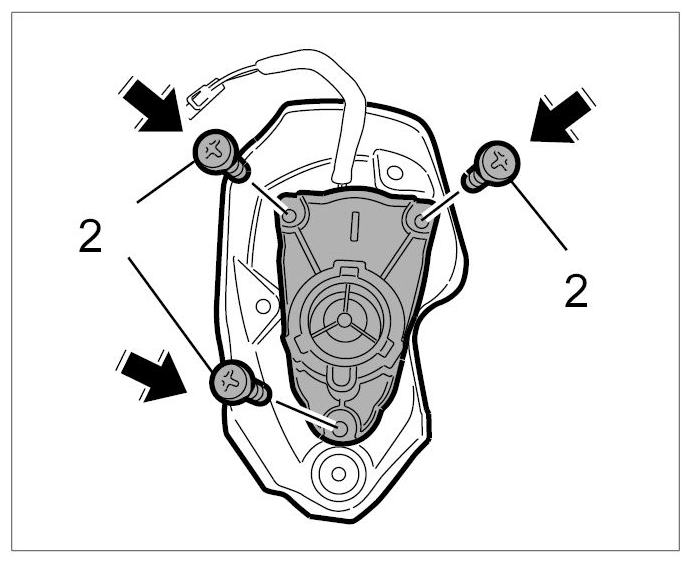

1. Position loudspeaker on the cover and secure it with the three fastening screws -2-  . → Tightening torque: 1 ftlb.
   Fig 1: Screwing Down Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

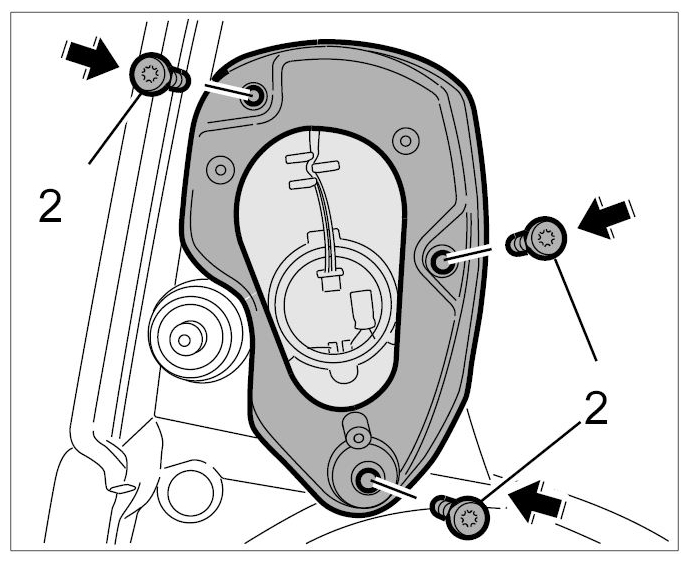

2. Position cover with loudspeaker on door trim panel and secure it with the three fastening screws -2-  . → Tightening torque: 1 ftlb.
   Fig 2: Securing Cover With Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
