Bose Low-Pitch Loudspeaker

Information

• Always use the screws and seals contained in the scope of delivery.

1. Seal the new loudspeaker. → Sealing Bose Woofer
2. Clip the plug connection in the retaining frame and insert the loudspeaker in the frame.

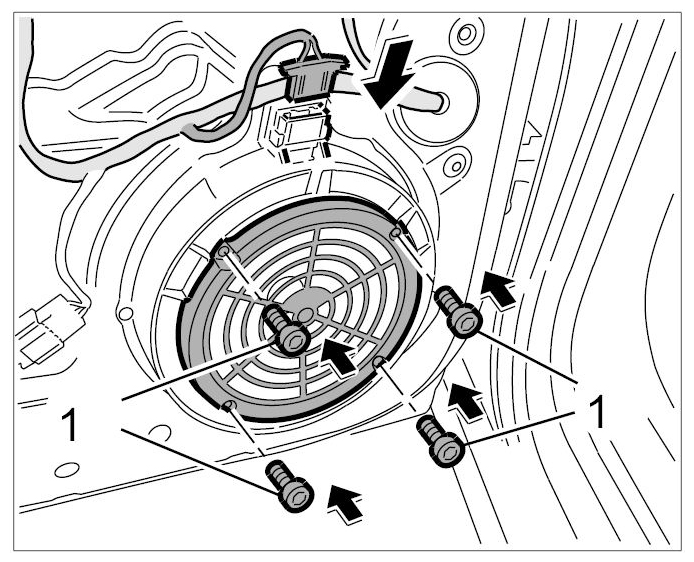

   Fig 1: Installing Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Insert four new fastening screws -1-  and tighten them. → Tightening torque: 3 ftlb.
4. Press in the connector until it is felt to engage.
