Removing Rear Mid-Tone Speaker (Harman)

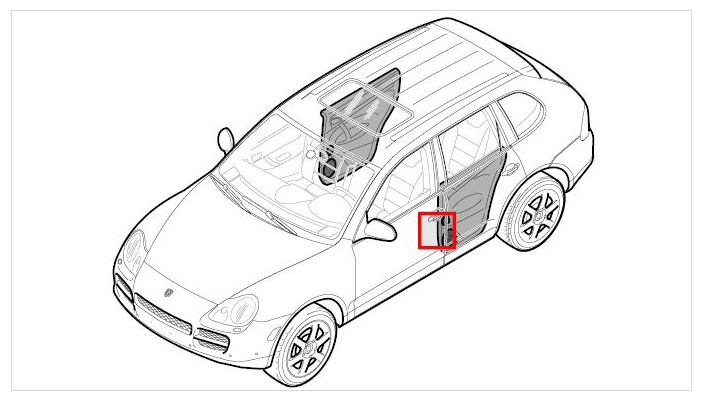

Fig 1: Rear Speakers Diagram (Harman)
G09415031Courtesy of PORSCHE CARS NORTH AMERICA, INC.

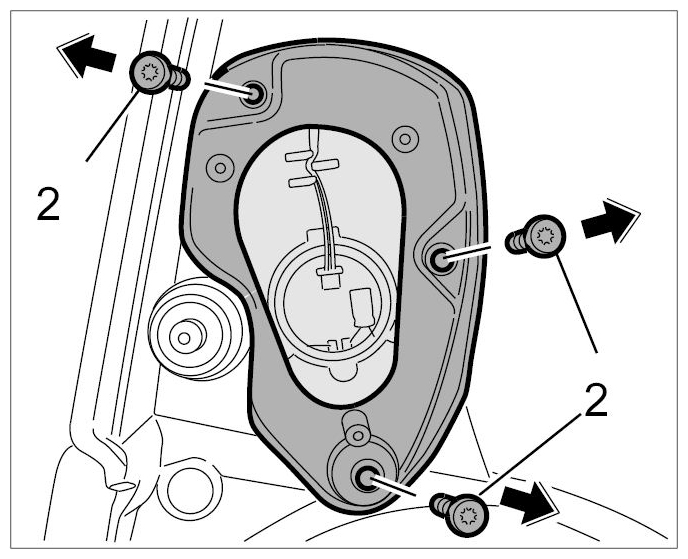

  1. Unscrew the three fastening screws -2-  from the speaker cover in the door trim panel.
    Fig 2: Unscrewing Fastening Screws For Speaker Cover
    G09415032Courtesy of PORSCHE CARS NORTH AMERICA, INC.

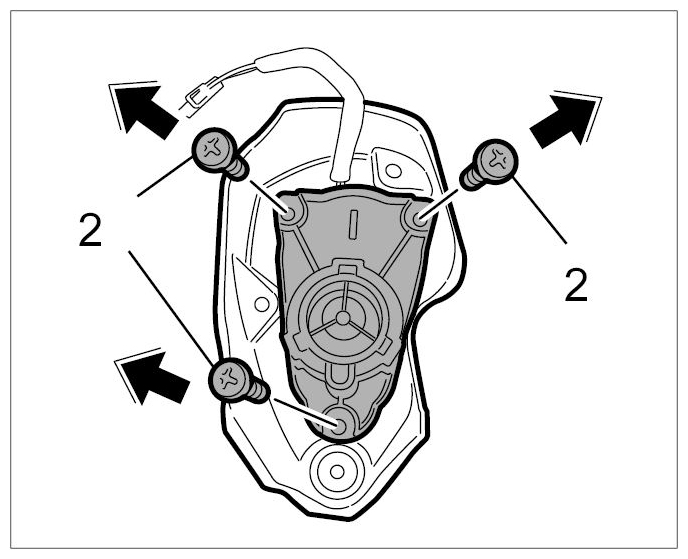

  2. Unscrew the three fastening screws -2-  for the mid-tone speaker from the speaker cover and remove the mid-tone speaker.
    Fig 3: Unscrewing Fastening Screws For Mid-Tone Speaker
    G09415033Courtesy of PORSCHE CARS NORTH AMERICA, INC.
