Installing Rear Mid-Tone Speaker (Harman)

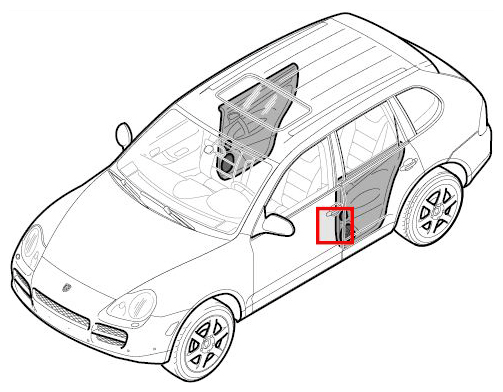

Fig 1: Rear Speakers Diagram (Harman)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

1. Position the mid-tone speaker on the cover and secure it with the three fastening screws -2-  . → Final tightening: 1.0 ftlb.

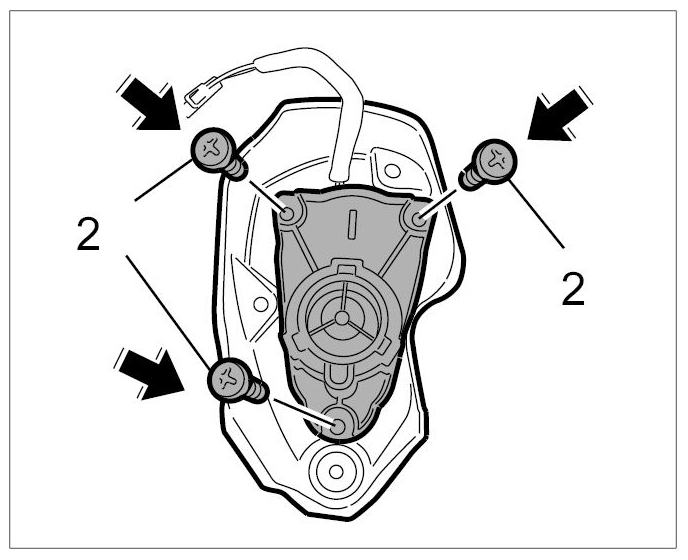

   Fig 2: Screwing In Fastening Screws For Mid-Tone Speaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Position the cover with speaker on the door trim panel and secure it with the three fastening screws -2-  . → Final tightening: 1.0 ftlb.

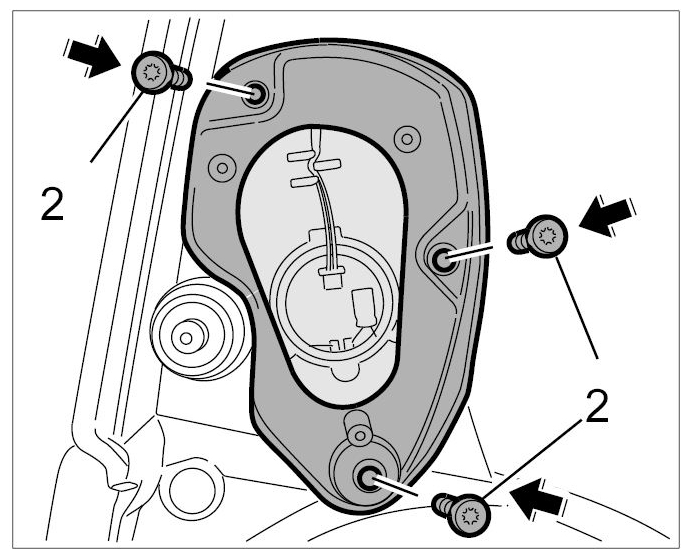

   Fig 3: Screwing In Fastening Screws For Speaker Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
