Removing Front Bass Speaker (Harman)

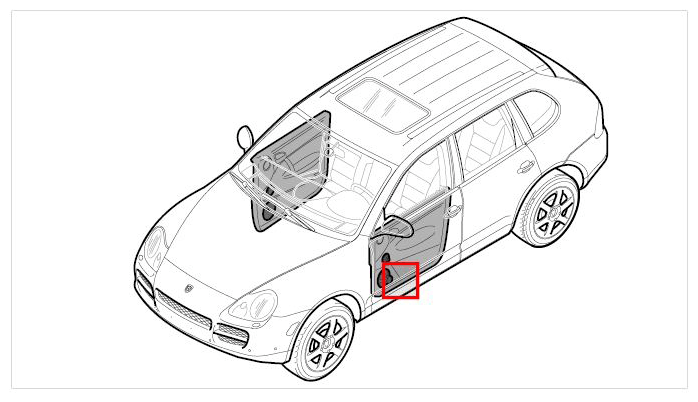

Fig 1: Diagram Of Front Speakers (Harman)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Remove the ignition key and switch off load before disconnecting or removing load.

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Release connector -arrows a-  and pull it off.

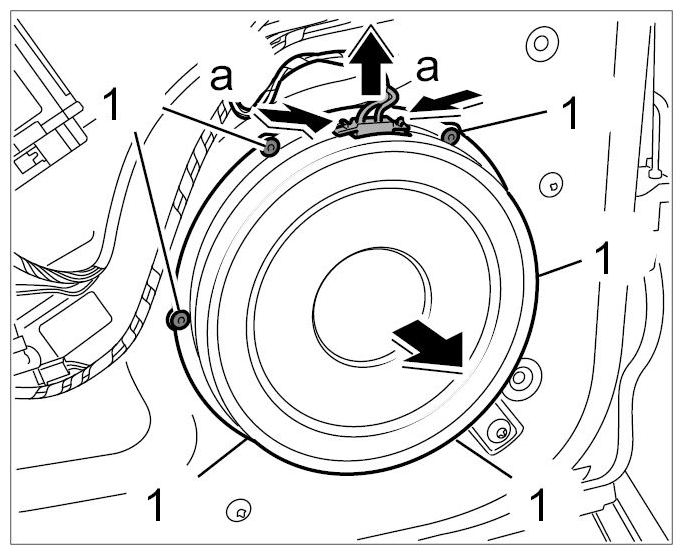

   Fig 2: Removing Front Bass Speaker (Harman)

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Carefully drill out the six pop rivets -1-  . Make sure that the sealing surface of the door sub-frame is not deformed when drilling out the pop rivets.
3. Remove bass speaker.
4. Remove any bass speaker sealant remaining on the door unit carrier.
