Removing And Installing Front Loudspeakers (Harman)

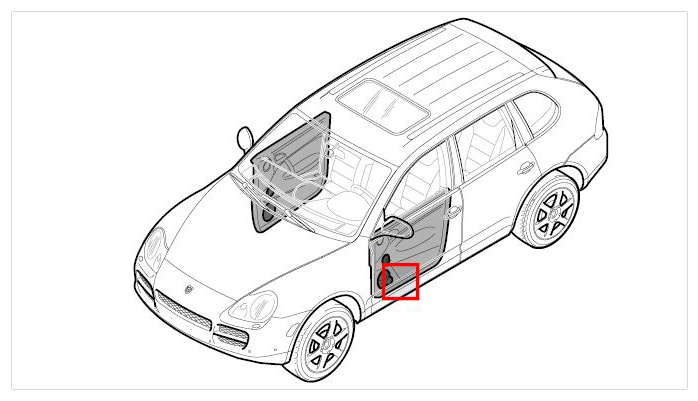

Fig 1: Diagram Of Front Speakers (Harman)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Remove the ignition key and switch off load before disconnecting or removing load.

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Release and pull off connectors.

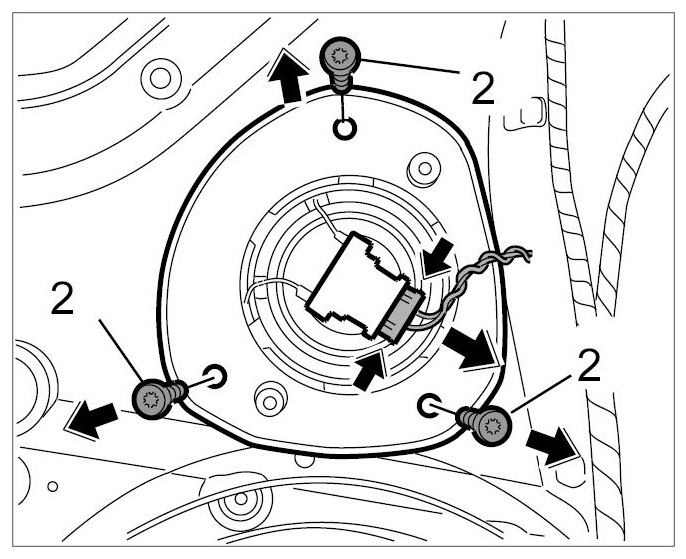

   Fig 2: Unscrewing Fastening Screws For Speaker Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew the three fastening screws -2-  from the speaker cover in the door panel.
3. Unscrew the two fastening screws -2-  for the mid-tone speaker from the speaker cover and remove the mid-tone speaker.

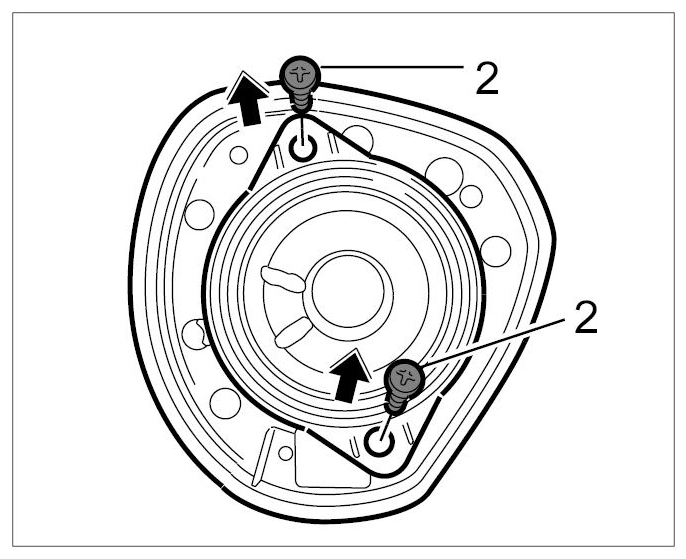

   Fig 3: Unscrewing Fastening Screws For Mid-Tone Speaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
