Installing Front Bass Speaker (Harman)

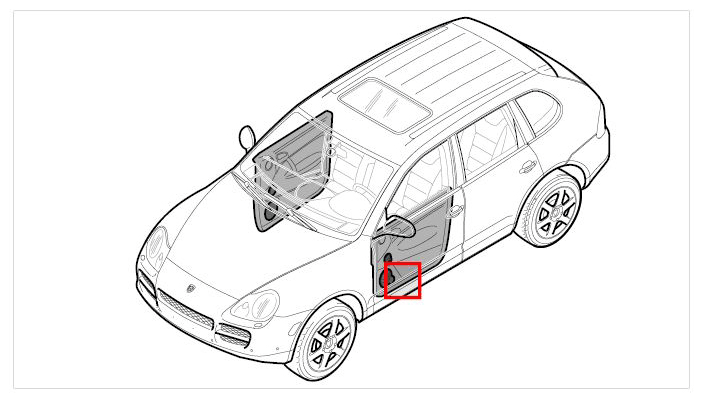

Fig 1: Diagram Of Front Speakers (Harman)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Check the mounting points and seal of the new bass speaker for damage or deformation. If there is damage or deformation, the bass speaker may not be installed, since it cannot be guaranteed that the seal will be airtight. Any pieces of the pop rivets that have fallen into the door unit carrier must be removed before the bass speaker is installed.
Position the bass speaker.

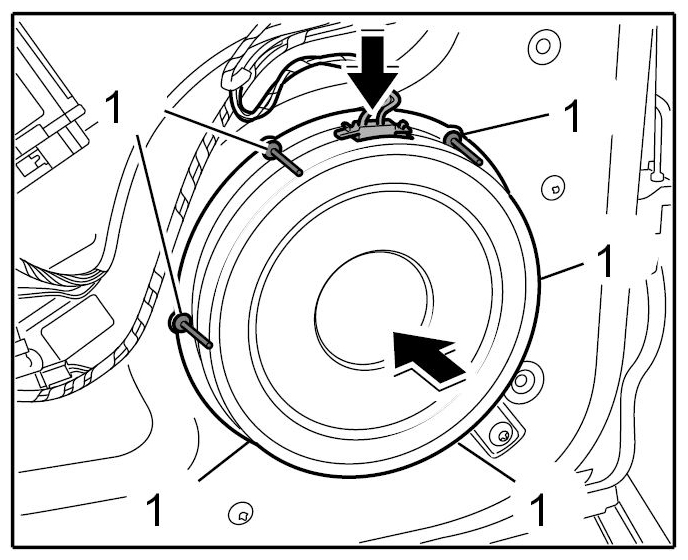

Fig 2: Installing Front Bass Speaker (Harman)
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the six pop rivets -1- and use the hand riveting tool for pop rivets Nr.124-1 and the nozzle tips for hand rivet extractors Nr.124-2 to rivet the woofer to the door sub-frame.
Press in the connector until it is felt to engage.
