Removing The Bose High-Pitch Loudspeaker

→

1. Use plastic spatula or similar to prise up loudspeaker cover and pivot it upwards to the windscreen.

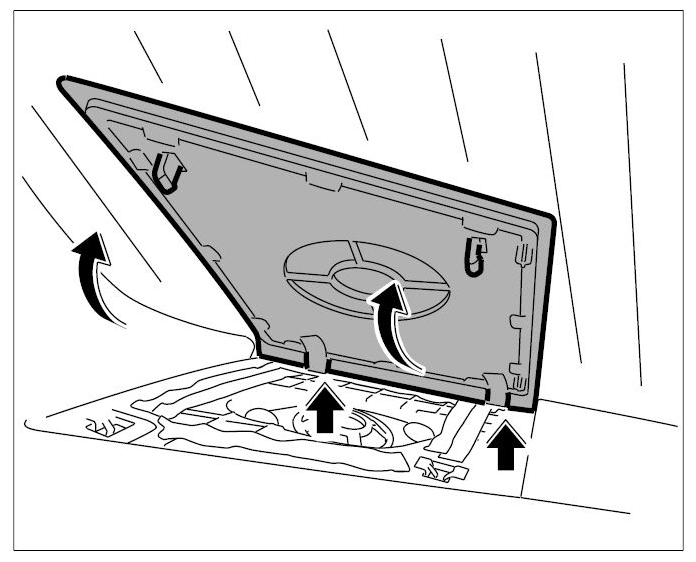

   Fig 1: Removing Cover Of High-Pitch Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Unscrew the two fastening screws and lift up the loudspeaker.

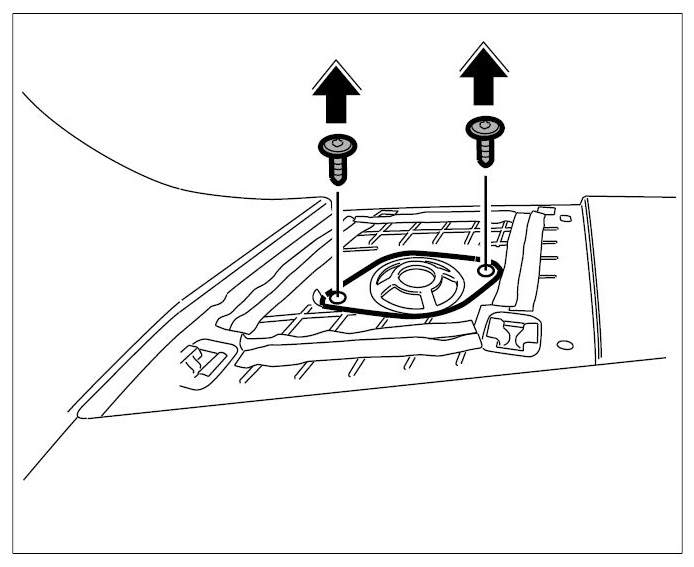

   Fig 2: Unscrewing Fastening Screws Of High-Pitch Loudspeaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release locking tab with a small screwdriver -Arrow A-  and pull off loudspeaker plug -Arrow B-  .

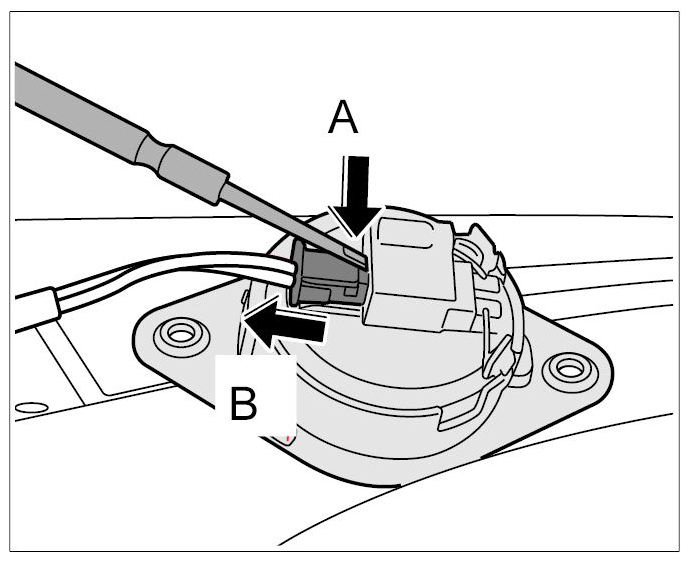

   Fig 3: Releasing Locking Tab And Removing Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
