Removing The Bose Centre Speaker

→

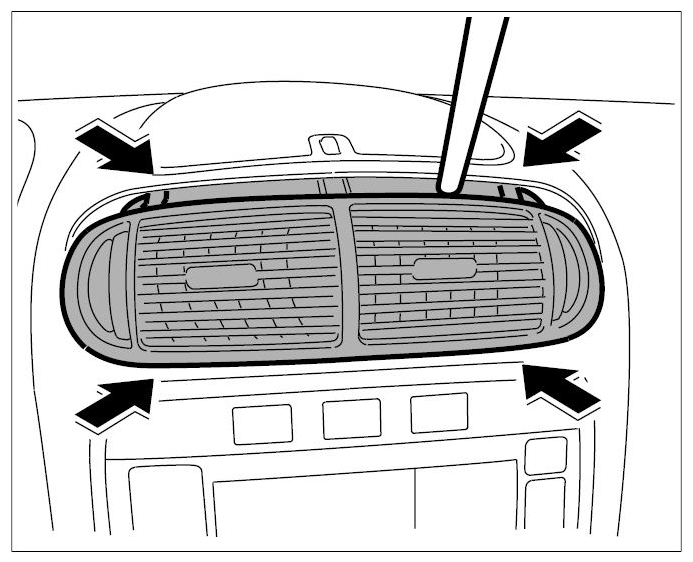

1. Carefully insert a plastic spatula at the four points between the air vent and dashboard and prise out the air vent.
   Fig 1: Removing Air Vent

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Press the electrical plug connection and pull off the plug.

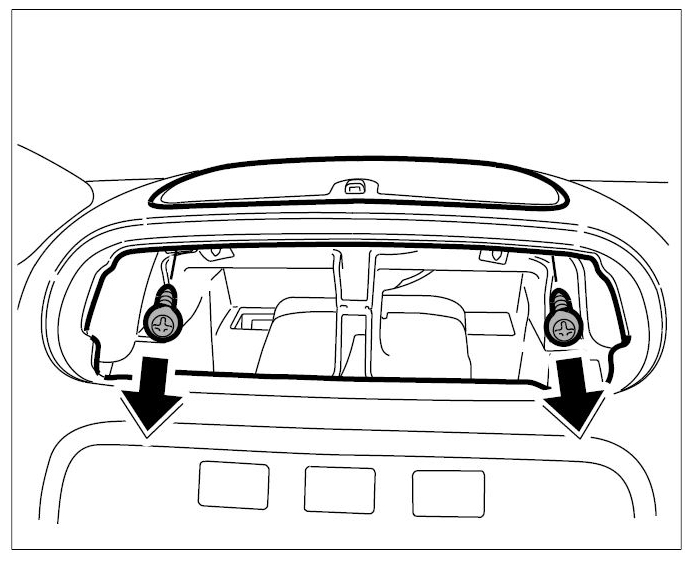

3. Unscrew the two fastening screws next to the air outlet.
   Fig 2: Unscrewing Fastening Screws For Centre Speaker Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

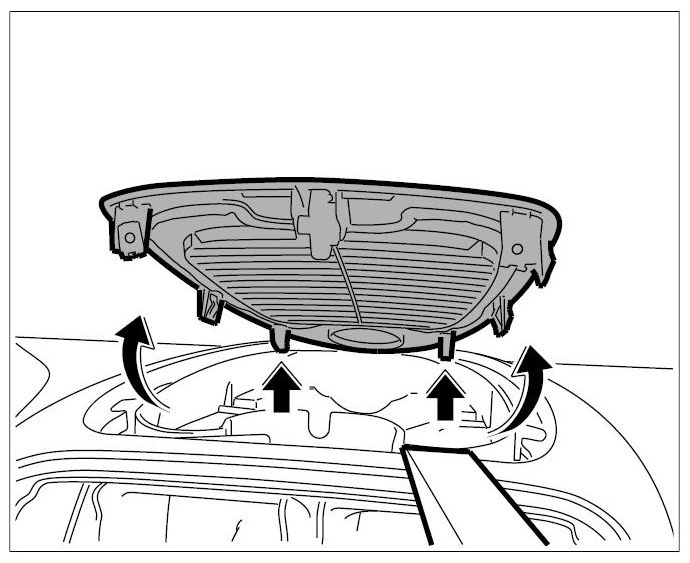

4. Carefully prise out the cover with a plastic spatula at the four points and pivot it upwards to the windscreen.
   Fig 3: Unclipping Centre Speaker Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

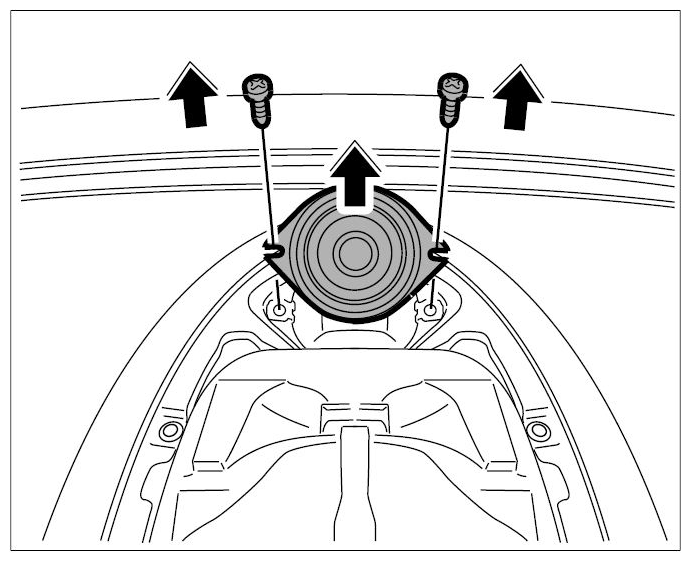

5. Unscrew the two fastening screws and lift up the loudspeaker.
   Fig 4: Unscrewing Fastening Screws For Centre Speaker

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

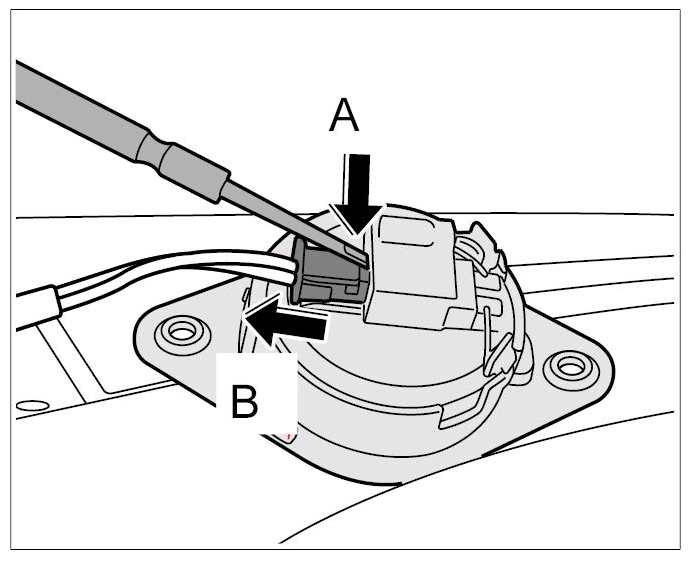

6. Release locking tab with a small screwdriver -Arrow A-  and pull off loudspeaker plug -Arrow B-  .
   Fig 5: Releasing Locking Tab And Removing Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
