Installing The Bose Centre Speaker

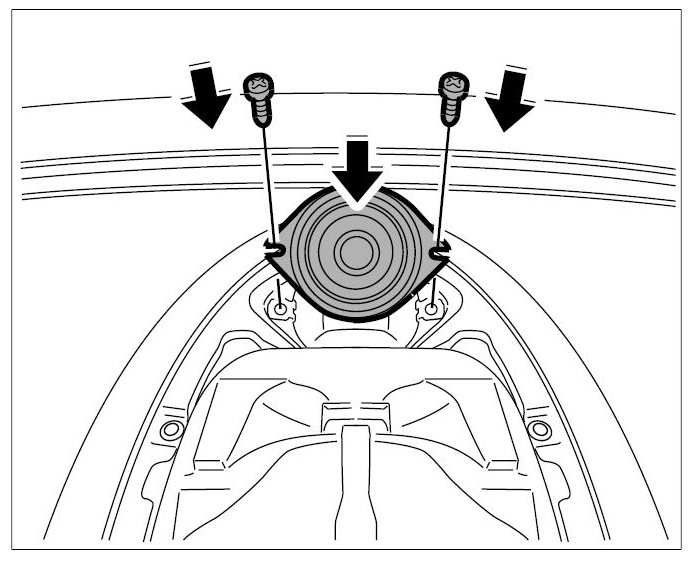

Push in loudspeaker plug and position loudspeaker.

Fig 1: Inserting Centre Speaker Plug And Positioning Loudspeaker
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Secure loudspeaker with the two fastening screws. → Tightening torque: 1.0 ftlb.

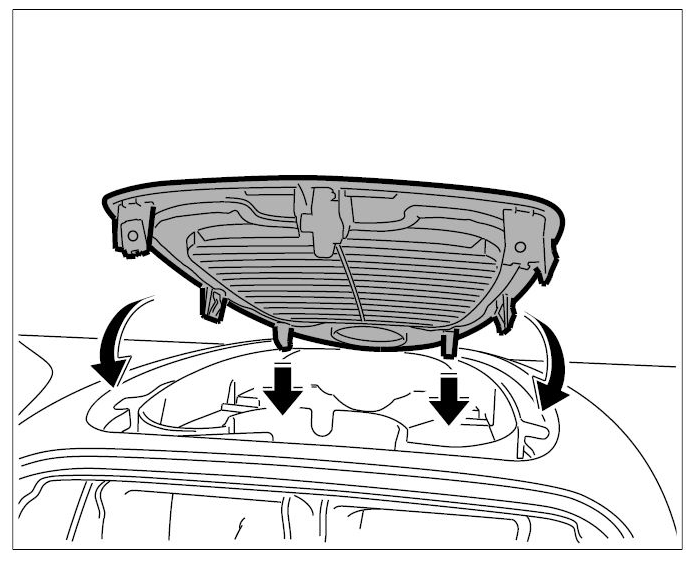

Engage center section cover in dashboard and clip in at the four points.

Fig 2: Clipping Centre Speaker Cover Into Place
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

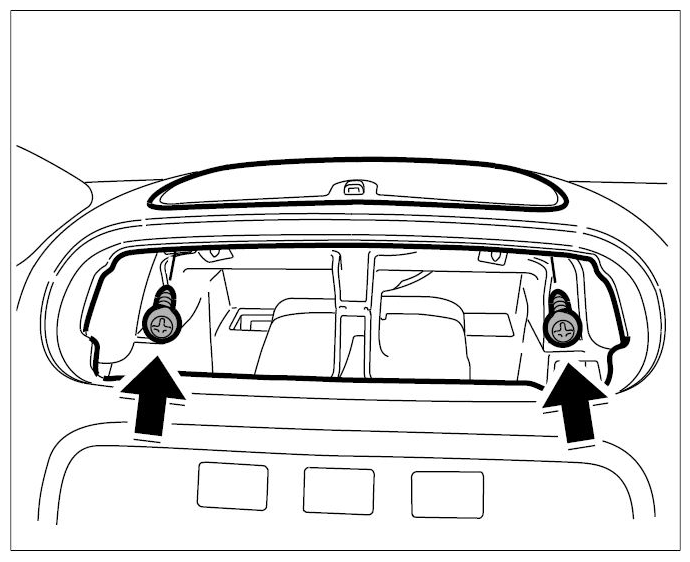

Screw in the front fastening screws. → Tightening torque: 1.0 ftlb.

Fig 3: Screwing In Fastening Screws For Centre Speaker Cover
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Position the middle air vent and press into the dashboard until the air vent engages.
