Removing The Antenna Lines In The Right Rear Spoiler Up To The Connection Point

→ Remove the ignition key and switch off load before disconnecting or removing load.

Information

• On vehicles up to model year 2004 the water line for the rear window washer is located in the right antenna lead set.
• On vehicles as of model year 2005 the water line for the rear window washer is located in the left antenna lead set.
• The procedure is described on the left side.

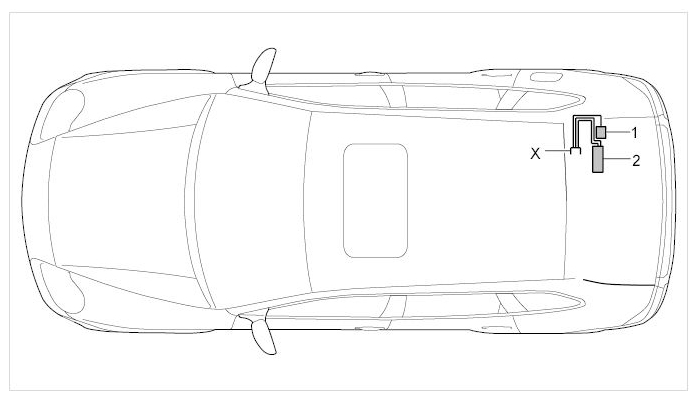

Fig 1: Overview Of Antenna Lines In Right Rear Spoiler

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

• 1 - Kessy antenna
• 2 - Right antenna amplifier control unit

1. X  - Connection point for antenna lines in right rear spoiler

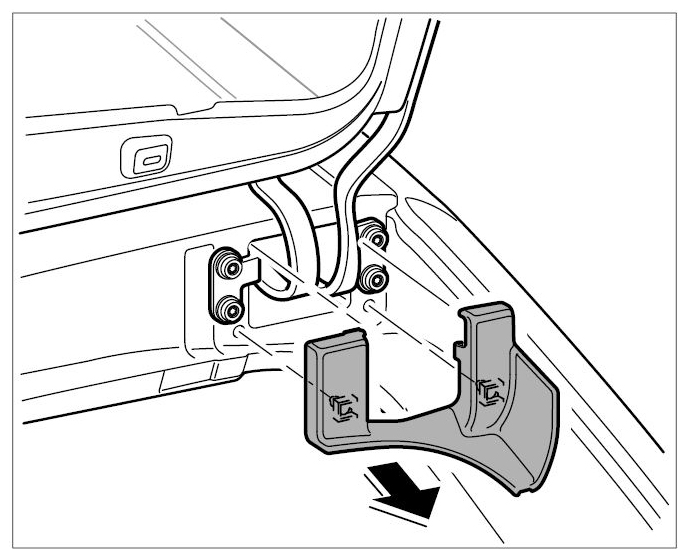

1. Insert a plastic wedge between the body and hinge cover on the right and carefully unclip and take off the hinge cover.
   Fig 2: Removing Right Hinge Cover

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

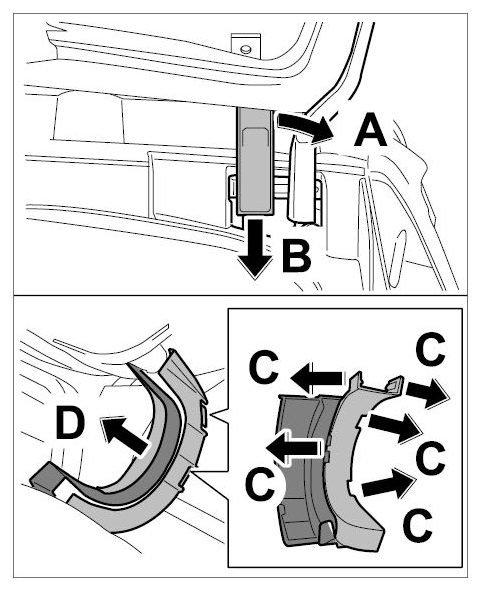

2. Release wiring duct -arrow A-  and remove it from hinge -arrow B-  .
   Fig 3: Removing Right Wiring Duct

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
3. Release cover for the hinge -arrows C-  , take it off -arrow D-  and remove wiring duct from wire harness.
4. Loosen the adhesive tape for the fixing device of the lines -arrow A-  and remove the tie-wrap -1-  .
   Fig 4: Loosening Ground Straps And Adhesive Tape, Pulling Off Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

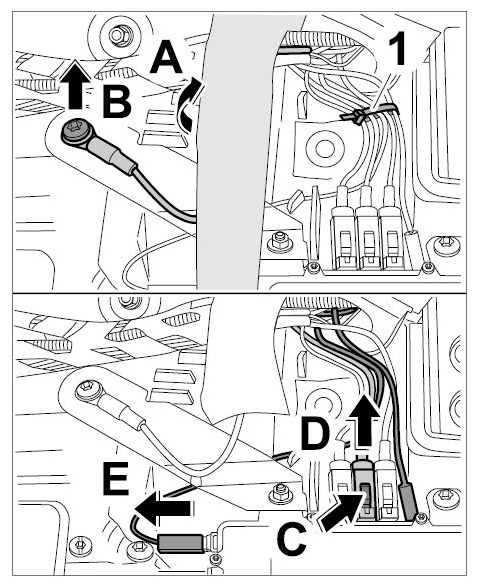

5. Unscrew the fastening screw -arrows B-  for the ground strap and take out the ground strap.
6. Release black connector on right antenna amplifier -arrow C-  and pull it off -arrow D-  .
7. Pull off connector on red connection of right antenna amplifier -arrow E-  .
8. Release connector on brake light -arrow A-  and pull it off -arrow B-  .
   Fig 5: Pulling Off Brake Light Connector

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

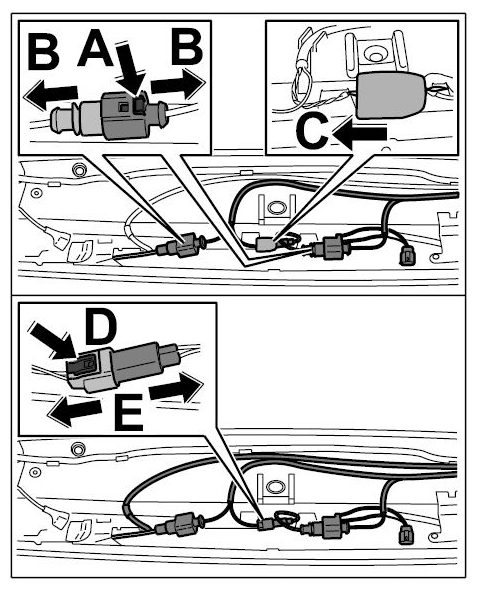

9. Release plug connections to rear window heater -arrow A-  and disconnect -arrows B-  .
   Fig 6: Disconnecting Plug Connections, Pulling Off Styrofoam Element

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
10. Pull off Styrofoam element from plug connection to rear window antenna -arrow C-  .
11. Release plug connection to rear window antenna -arrow D-  and disconnect it -arrows E-  .

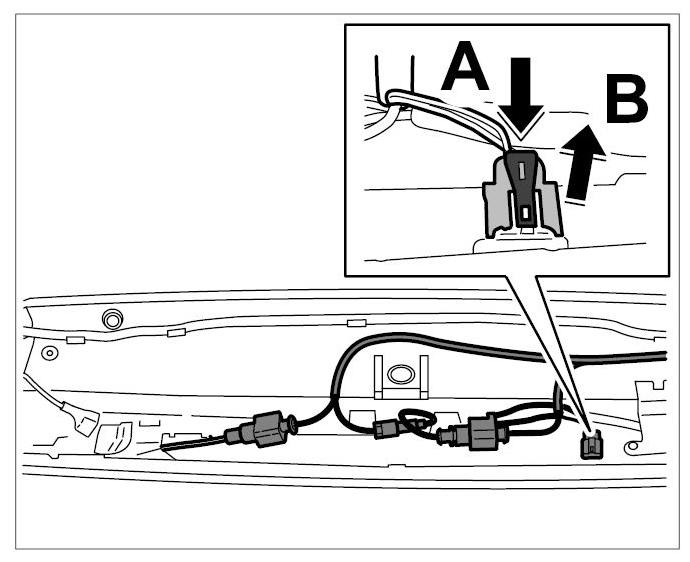

12. Remove the rubber sleeve from the rear spoiler -arrow A-  and take out the wire harness from the Velcro strip sections -arrows B-  and remove it.
    Fig 7: Loosening Wire Harness

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

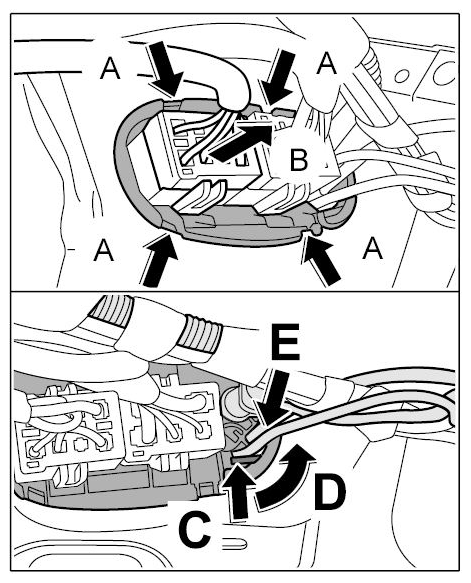

13. Release the support for the socket on the rear right roof frame -arrows A-  and take out -arrow B-  .
    Fig 8: Releasing Socket

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
14. Release the support for the wire harness socket for the right rear spoiler -arrow C-  , open it up -arrow D-  and take out the lines -arrow E-  .

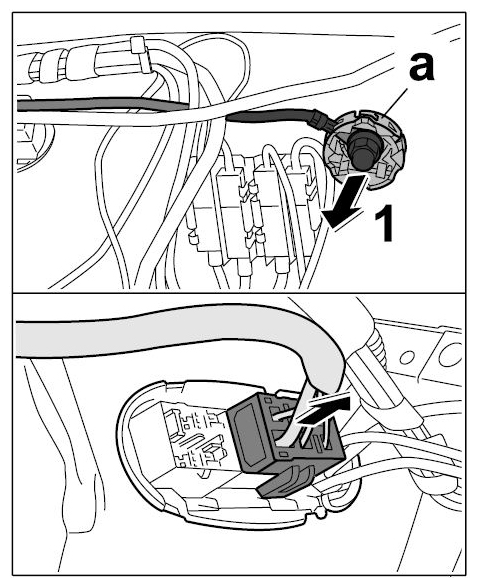

15. Unscrew the fastening nuts -1-  and take out the ground strap with the twist lock -a-  from the ground pin.
    Fig 9: Unscrewing Ground Strap And Pulling Off Connector

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
16. Pull off the connector.

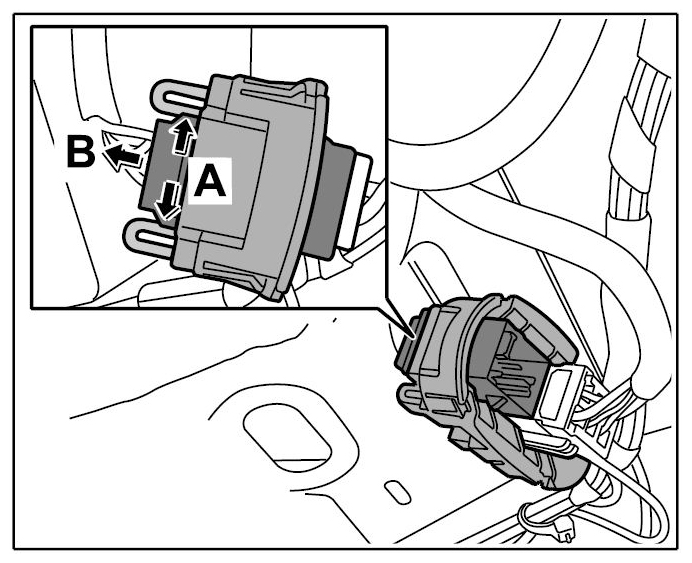

17. Release the socket -arrows A-  and pull it out -arrow B-  .
    Fig 10: Pulling Out Socket

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.
18. Cut tie-wrap -a-  .
    Fig 11: Unlocking Plug Connections

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Information

    • The number of antenna connectors can vary, depending on the vehicle equipment.

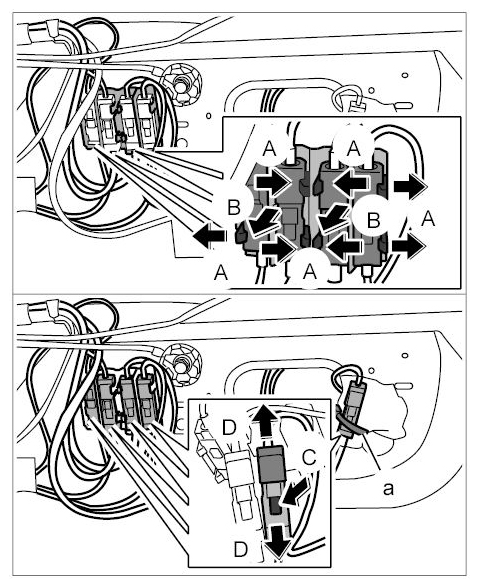

19. Release bracket -arrows A-  and remove the plug connections -arrows B-  .
20. Release the plug connections -arrow C-  and separate -arrows D-  .

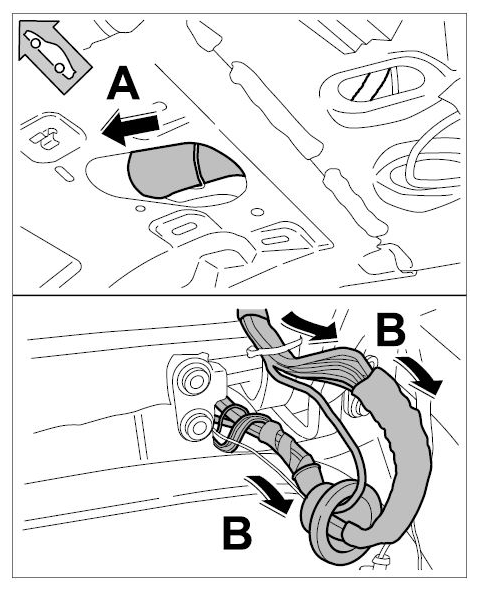

21. Press out the rubber sleeve in the direction of the right hinge -arrow A-  .
    Fig 12: Pulling Out Wire Harness

    Courtesy of PORSCHE CARS NORTH AMERICA, INC.

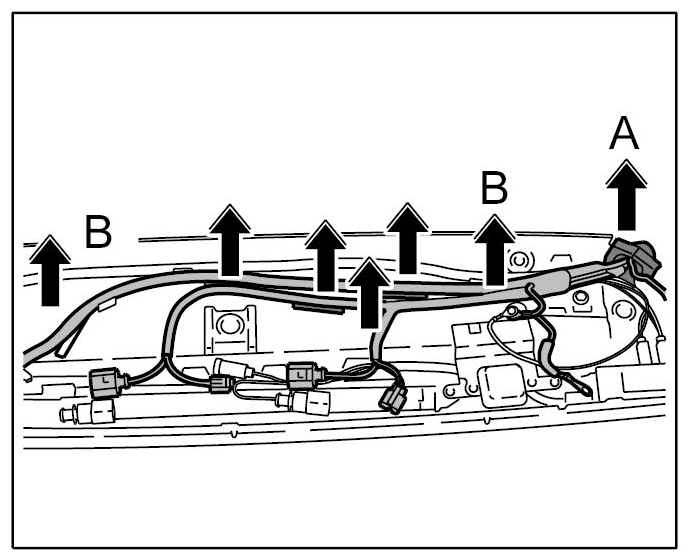

22. Remove the wire harness on the right hinge to the rear from the rear spoiler and rear roof frame -arrows B-  .
