Removing TV Tuner With Holder

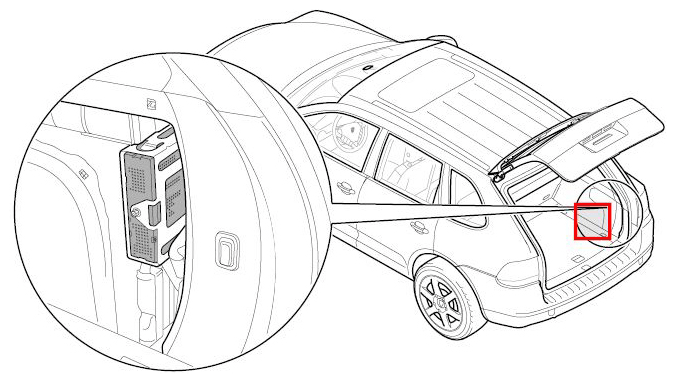

Fig 1: Overview Of TV Tuner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

→ Remove the ignition key and switch off load before disconnecting or removing load.

1. Switch off ignition and remove ignition key.
2. Remove cover of the right side-panel lining and take out the warning triangle and emergency kit.
3. Unscrew the four fastening screws -1-  .

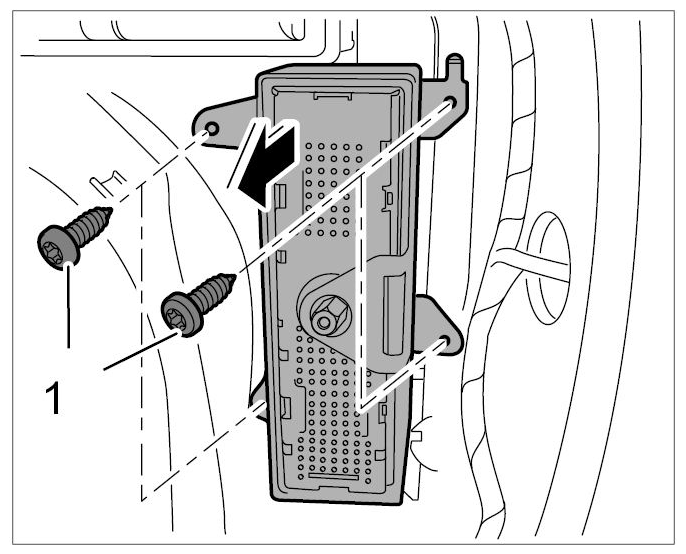

   Fig 2: Unscrewing TV Tuner With Holder

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
4. Pull out holder with TV tuner until the plugs are accessible.
5. Release plug -arrows a-  and unplug.

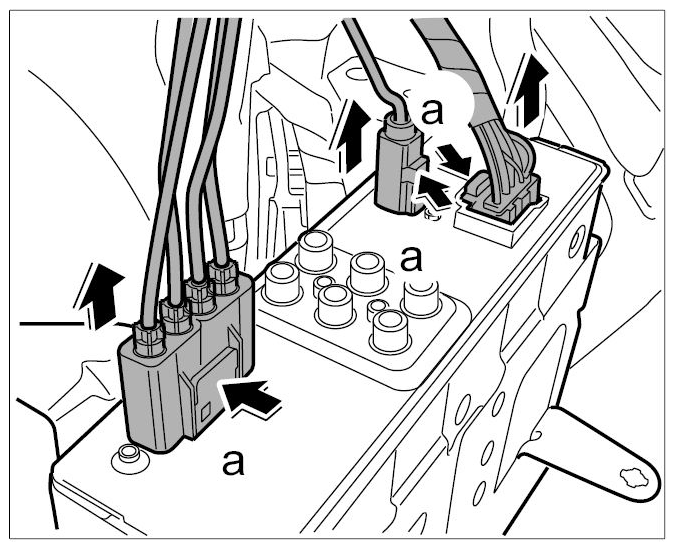

   Fig 3: Unplugging TV Tuner Plug

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
6. Remove holder with TV tuner.
