Installing The TV Tuner With Holder

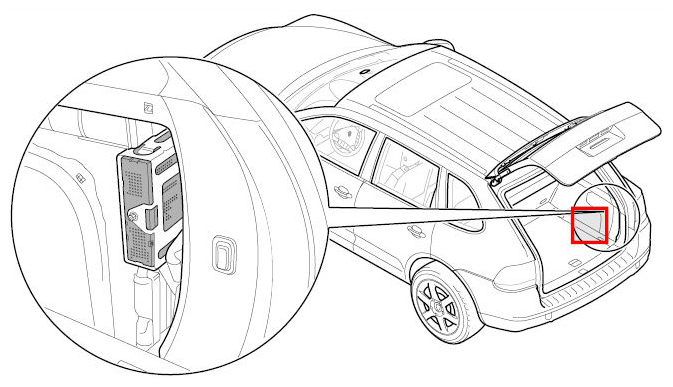

Fig 1: Overview Of TV Tuner

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

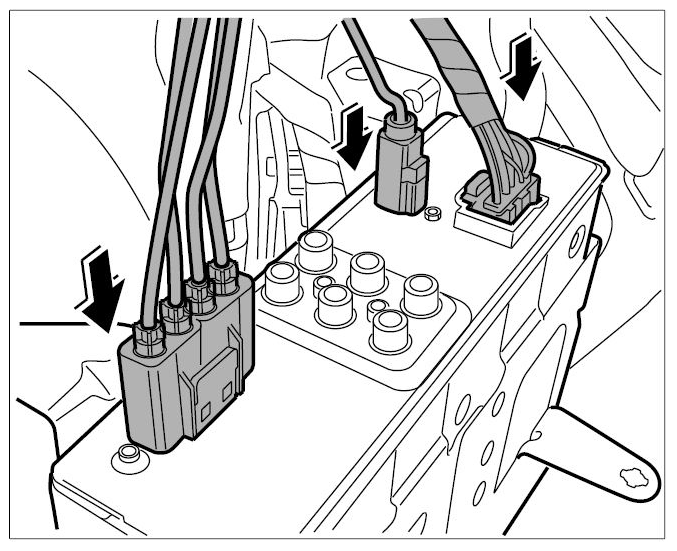

Push on plug until it is felt to engage.

Fig 2: Pushing On TV Tuner Plug
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

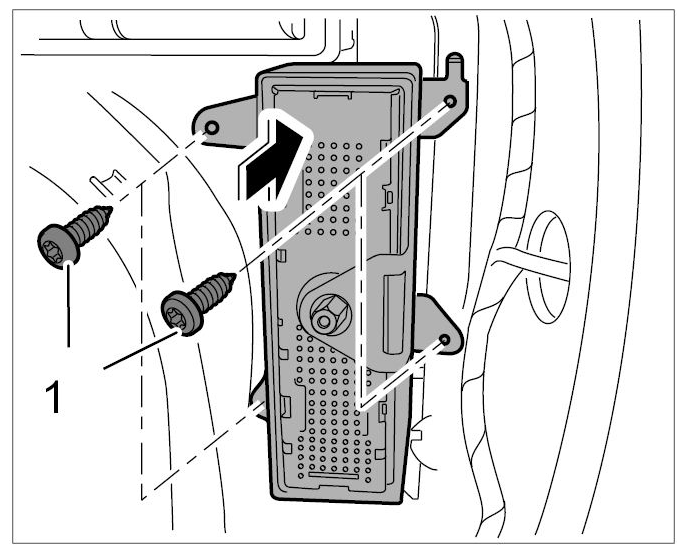

Position the holder with TV tuner and screw down with the fastening screws -1- . Tightening torque → Final puller: 6 ftlb.

Fig 3: Fastening TV Tuner With Holder
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Insert the emergency kit and warning triangle and position the right side-panel lining.
