Removing ATF Pan

WARNING: This page is about a different variant/trim than selected.

Remove support plate.
1. 1.1. Remove diagonal braces.
  Unscrew M10/M12 screws and M10 nuts and remove diagonal braces -1- .
2. 1.2. Remove support plate.
  Unscrew M10 x 25 screws and M10 nuts and remove support plate -2- .

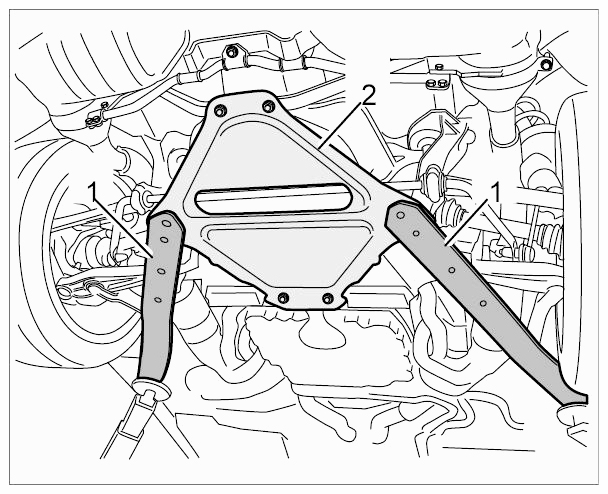

Fig 1: Identifying Diagonal Brace and Support Plate

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Remove anti-roll bar on rear-axle carrier side section.
Unscrew M8 x 40 screws -1- and move anti-roll bar -2- into position.

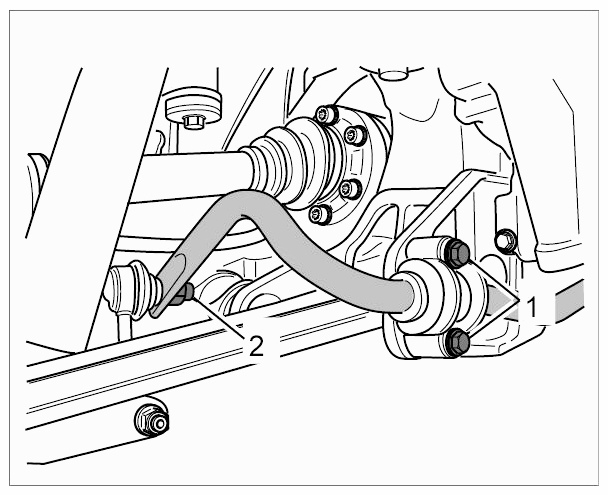

Fig 2: Identifying Anti-Roll Bar And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
Remove ATF pan.
Unscrew screws on the ATF pan -1- and carefully lever off and remove the ATF pan -1- .

Bear in mind that although you have drained the ATF oil, there will still be residual oil in the ATF pan -1-. So remove the ATF pan -1- carefully.

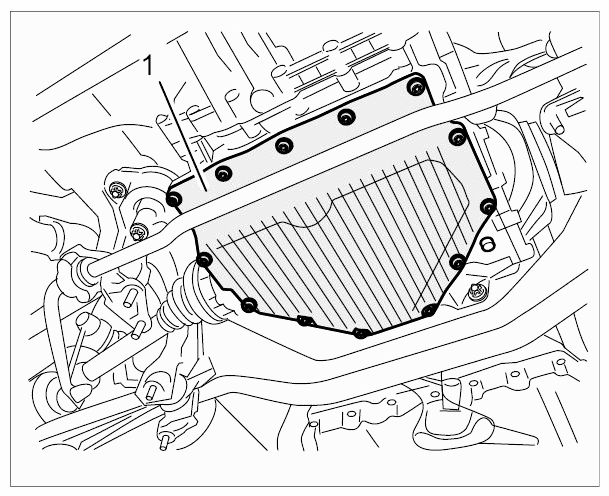

Fig 3: Identifying ATF Pan And Screws
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
