Subsequent Work

WARNING: This page is about a different variant/trim than selected.
  1. Retaining device 9624/1  must be removed from the cross member.

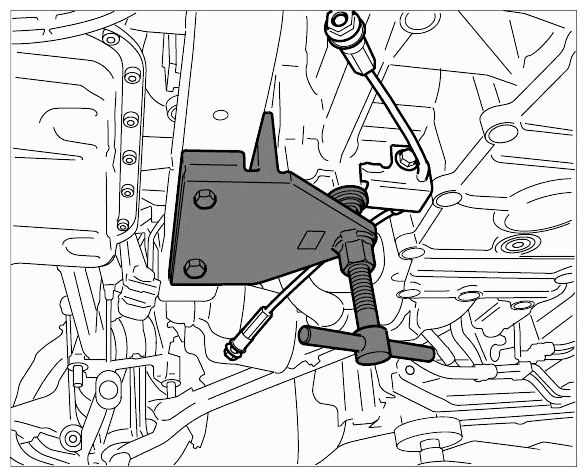

    Fig 1: Removing Retaining Device From Cross Member
    G09587092Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Fit restraining cables to cross member.
    Location Description Type Basic value Tolerance 1 Tolerance 2
    Restraining cable Fastening nut between restraining cable and cross member Tightening torque 23 Nm (17 ftlb.)
  3. Install support plate. → Installing Support Plate
  4. Install rear silencers. → Installing Rear Silencer
  5. Mount wheels. → Installing Wheel
  6. Lower the vehicle.
  7. Install the starter. →Installing Starter
  8. Install the engine-compartment lid. → 557819 REMOVING AND INSTALLING ENGINE COMPARTMENT LID
  9. Install rear wall cover. → 555919 REMOVING AND INSTALLING REAR WALL COVER
  10. Connect the battery. → Installing Battery
  11. Bleed the cooling system. → Filling coolant (includes bleeding)
  12. Check and top up the ATF. → 370235 CHECKING AND TOPPING UP ATF
  13. Adjust the selector lever cable as described under → Installing Selector Lever Cable .
