Removing Sealing Ring For Selector Shaft

WARNING: This page is about a different variant/trim than selected.

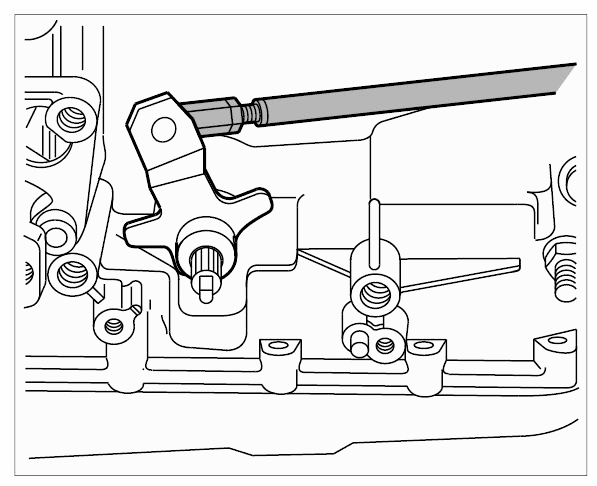

Disengage push rod from ball head on selector lever.

Fig 1: Identifying Push Rod
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

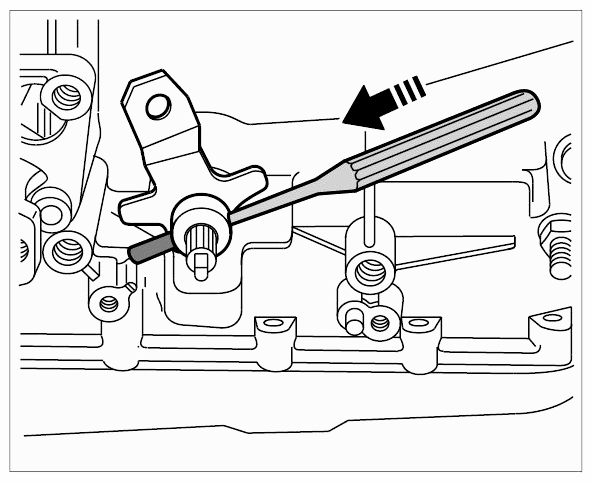

Drive out roll pin and pull selector lever off selector shaft.

Fig 2: Removing Roll Pin
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

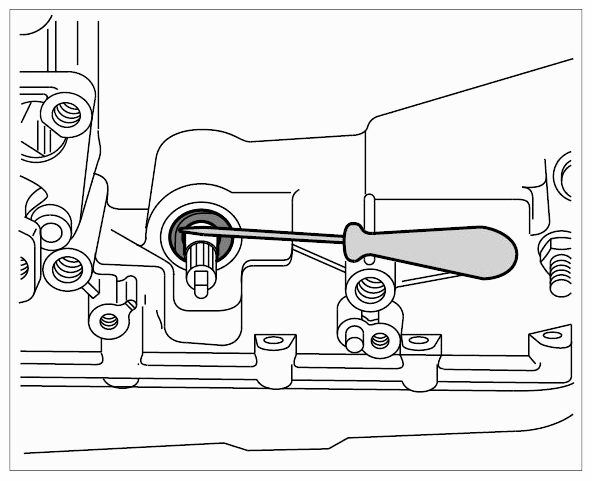

Pierce sealing ring with a small screwdriver and lever it out.

Fig 3: Removing Sealing Ring
Courtesy of PORSCHE CARS NORTH AMERICA, INC.
