Removing Sealing Ring For Parking Lock Shaft

WARNING: This page is about a different variant/trim than selected.
  1. Remove parking lock cable on the Porsche Doppelkupplung.
    1. 1.1. Press ball joint of parking lock cable -1-  off the parking lock lever.
    2. 1.2. Release parking lock cable -1-  at the bracket by pressing the locking lugs -arrows-  together and pull it out.

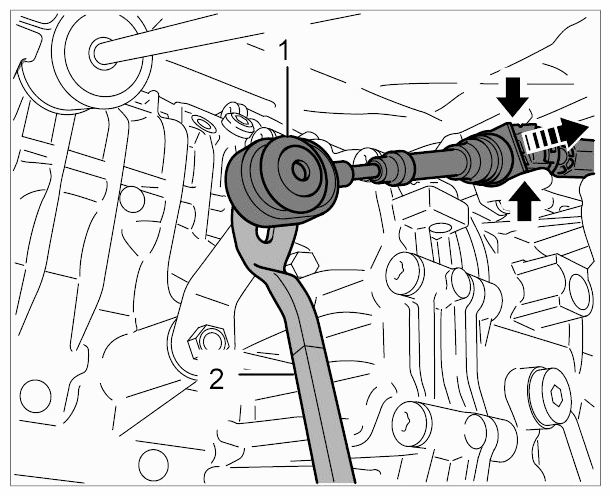

    Fig 1: Removing Parking Lock Cable
    G09586932Courtesy of PORSCHE CARS NORTH AMERICA, INC.
  2. Remove parking lock lever.

    Unscrew M8 nut, loosen parking lock lever from the parking lock shaft and remove it.

  3. Remove sealing ring for parking lock shaft.

    Pierce the sealing ring -1-  for the parking lock shaft -2-  with a small screwdriver and lever it out.

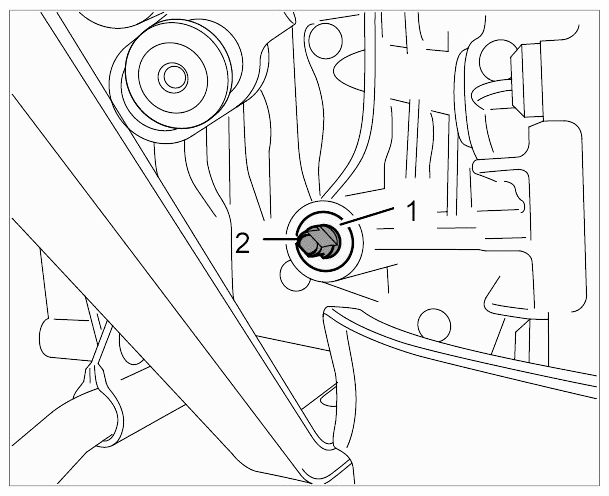

    Fig 2: Identifying Sealing Ring And Parking Lock Shaft
    G09586933Courtesy of PORSCHE CARS NORTH AMERICA, INC.
