Installing Sealing Ring For Parking Lock Shaft

Information

• During installation, make sure that the selector lever is in position "P" on the selector support and at the rear end position on the transmission.
• The parking lock must be fully engaged  .

1. Install sealing ring for parking lock shaft.
   1. 1.1. Fit sealing ring for parking lock shaft.

      Thinly coat outer circumference and sealing lip of sealing ring with Vaseline.

   2. 1.2. Tap in sealing ring for parking lock shaft using the pressure sleeve T10174  (-1-  ) or a long No. 13 wrench until it fits perfectly into the transmission.

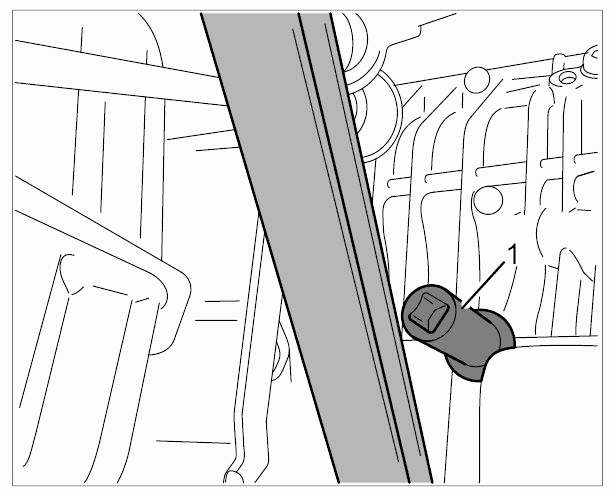

      Fig 1: Tapping Parking Lock Shaft Sealing Ring Using Pressure Sleeve T10174

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.
2. Install parking lock shaft.

   Fit parking lock lever and press it onto the parking lock shaft. Then, screw on and tighten the M8 nut.

   → Tightening torque: 16 Nm (12 ftlb.)

3. Engage parking lock cable on the Porsche Doppelkupplung.
   1. 3.1. Check that the gear selector on the selector support is in position "P" and is locked.
   2. 3.2. Check that the transmission parking lock is fully engaged.
   3. 3.3. Fit the parking lock cable -arrow-  on the bracket, press it in and engage it.
   4. 3.4. Press ball joint of parking lock cable -1-  onto the parking lock lever.
      NOTE: The parking lock cable must only be connected without preload.

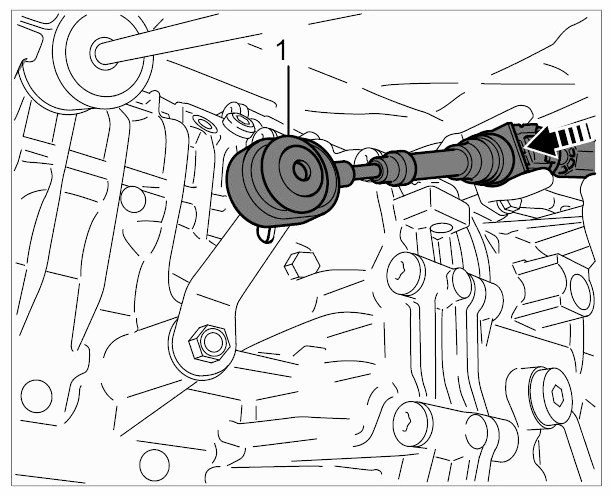

   Fig 2: Identifying Parking Lock Cable

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.
